26

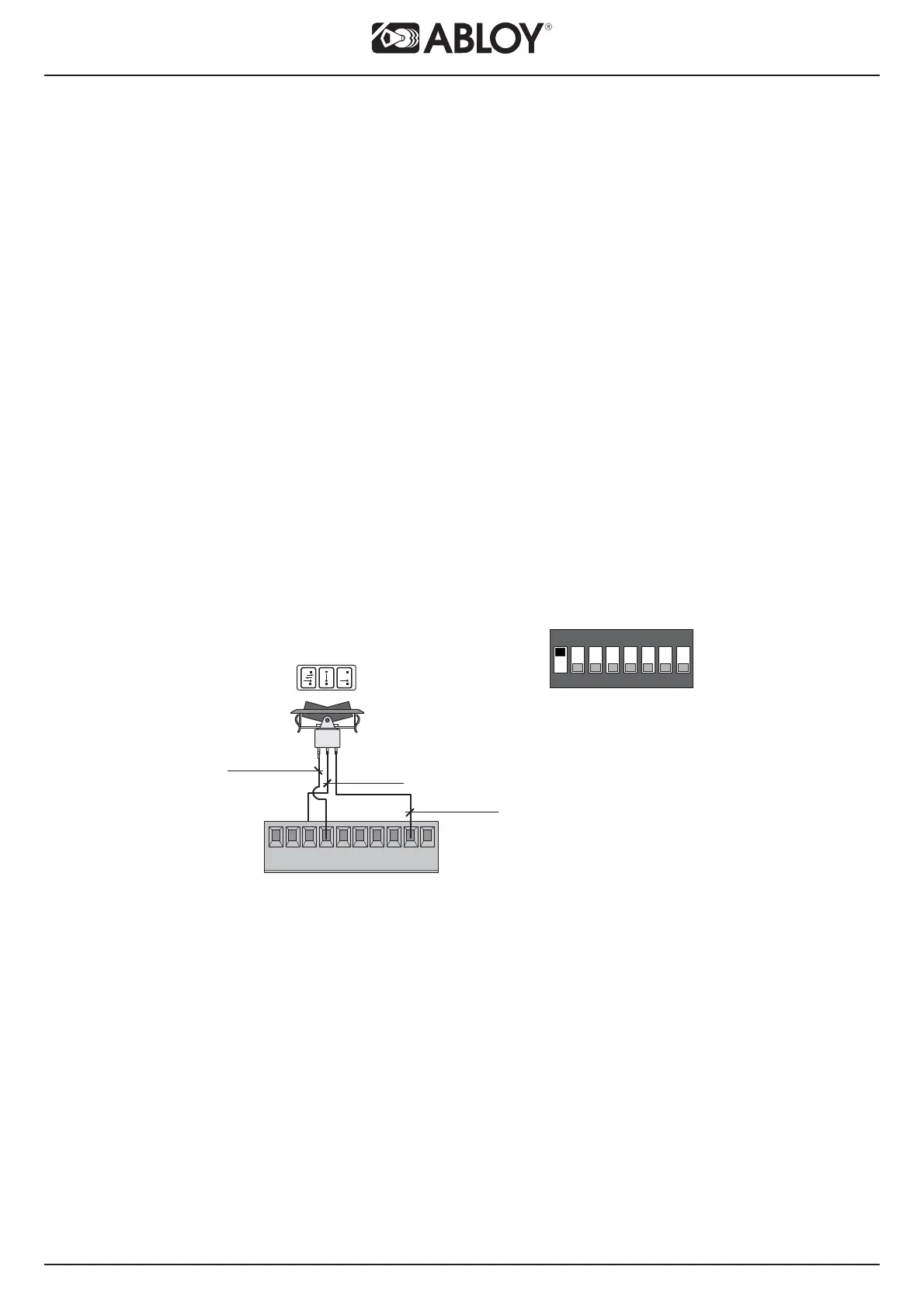

CONNECTION EXAMPLES
Program selector PS-3A
When the diode is removed you will get following operation from DB swing door operator:
AUTO:
- The lockcase is electrically open.
- Outer and Key impulse is in operation
NOTE! Opening delay is not in operation.
OPEN:
- Door is open
MANUAL:
- Key impulse will open the lockcase and the door.
Push&Go can be taken in use by setting correct Dip switch. Push&Go needs home limit
switch (DB102). The Push&Go is operation when door is in closed position and program
selector is in AUTO mode. The hold open time is same as hold open time Outer HOT
(0-30 s).
NOTE!
FS1 = ON
Red
Black
Yellow
5678
TB2
91011121314
FS
ON
1
2345678
Kill -
Kill +
0VDC
Key impulse
Lock control
+24VDC for lock
0VDC
24 VDC
MVI impulse
Outer impulse
