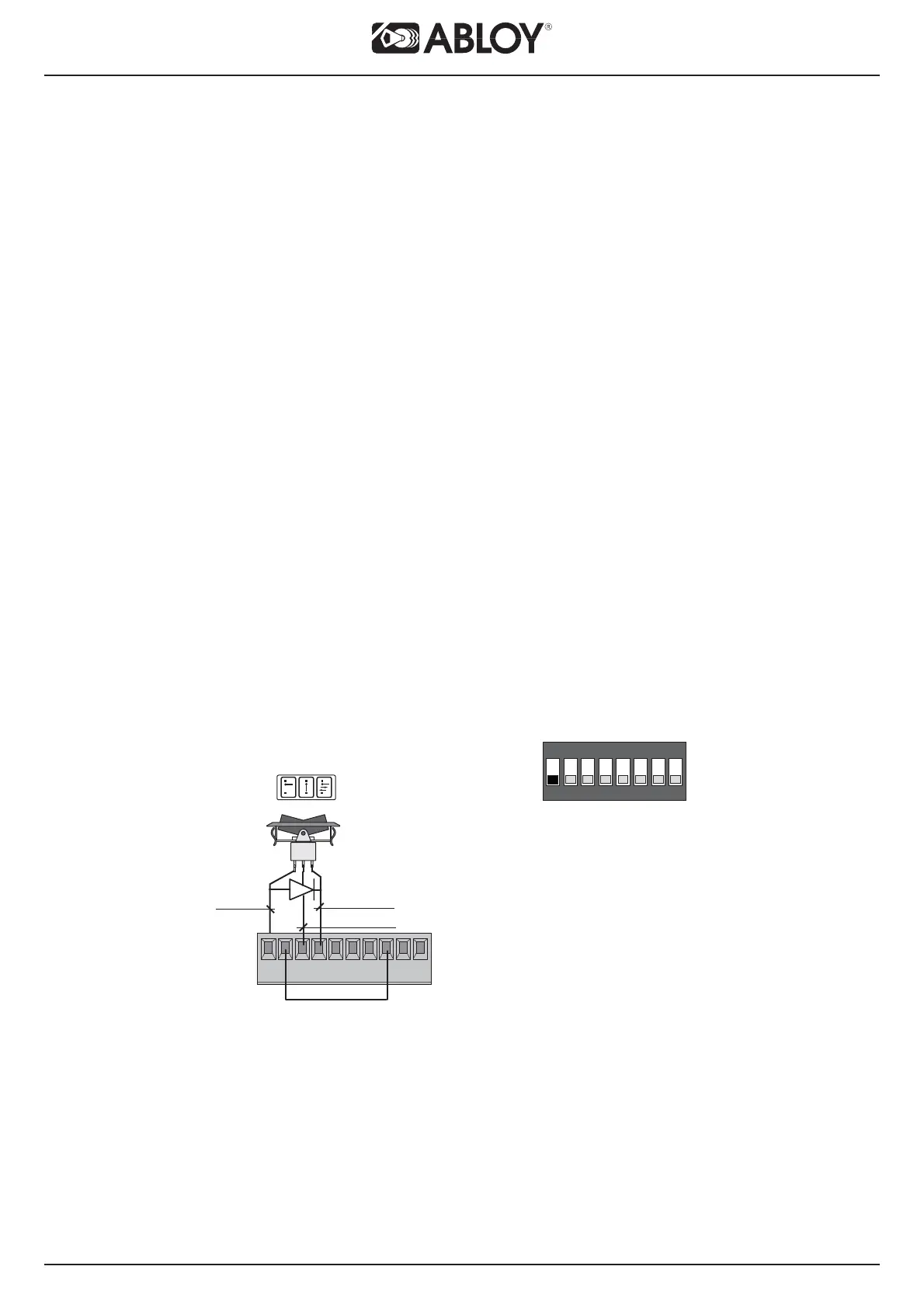

CONNECTION EXAMPLES
Program selector PS-3A
Use this connection, if you want that lockcase is locked when program selector is in AUTO
mode.
Outer impulse is not in use. All impulse devices must connect to Key impulse (TB2 5 and 8).
Opening delay is in use.
It is not possible to take Push&Go in use. If Push&Go is needed, separate unit DB116 is needed.
Operation:
When program selector is in AUTO mode, the minus (-) goes thru diode to TB2:5 and swing
door operator is ready for operation.
When program selector is in Manual mode, the minus (-) is disconnected from TB2:5 and
impulse devices wont open the door.
AUTO:
- Key impulse will open the lockcase and the door.
OPEN:
- Door is open and stays open
MANUAL:
- Manual use.
Red
Black
Yellow
5678
TB2
91011121314
FS
ON
1
2345678
NOTE!
FS1 = OFF
Kill -
Kill +
0VDC
Key impulse
Lock control
+24VDC for lock
0VDC
24 VDC
MVI impulse
Outer impulse
