19 KL II Series User Manual
Used to fix
the cabinet to
the sub frame
Fix the
cabinets
combination
to the
wooden wall
Fix the
cabinets
combination
to the
concrete wall

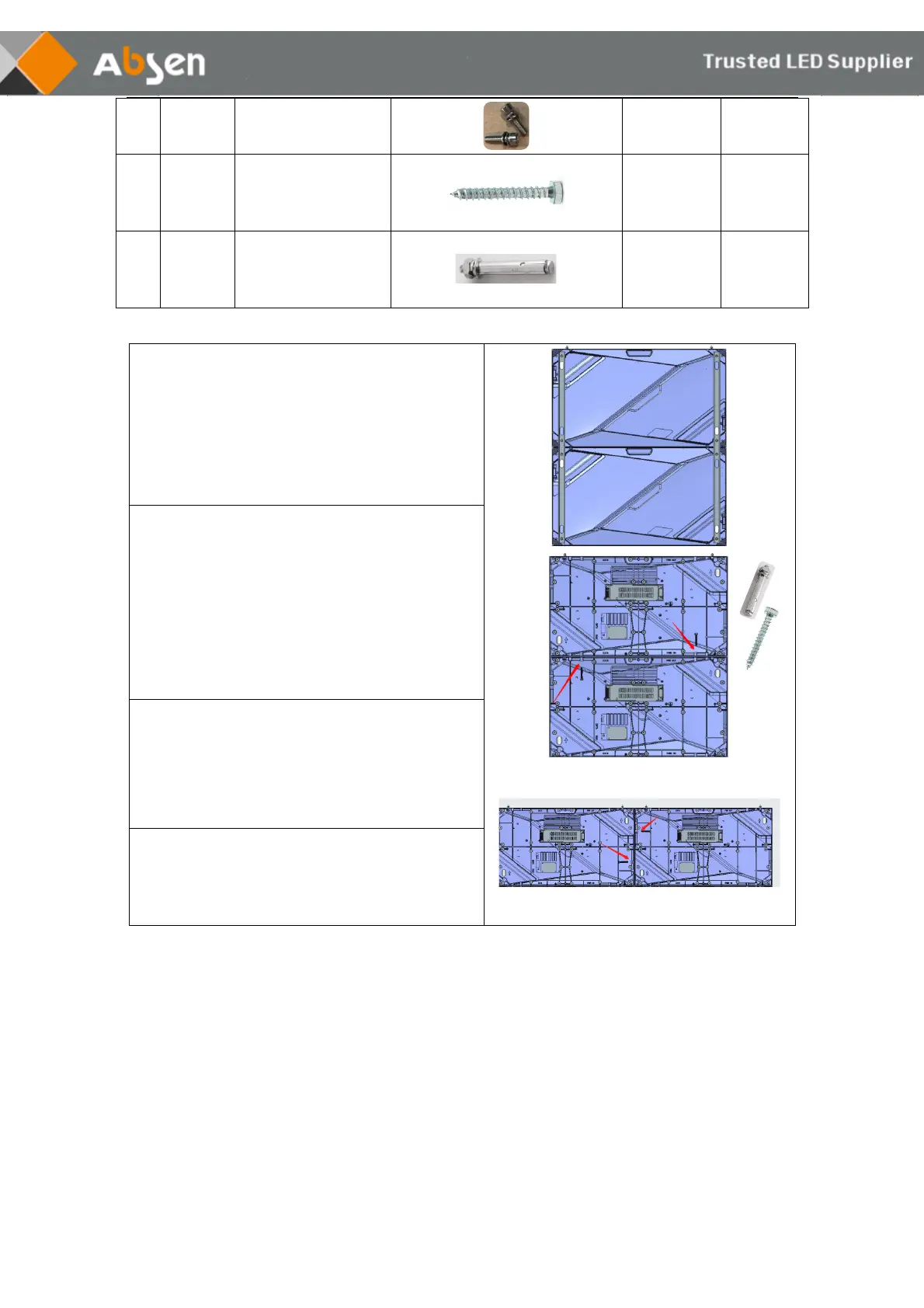

Cabinet installation operation
step 1:
Take ou t t he KL II cabinet frame from the package,
and install the 2 or 3pcs cabinet frames on the sub
frames . Each cabinet frame needs to install 4 M8
bolts on the sub frame.
Note: the M6x10mm bolts and nuts should be used to
connect and fix the upper and lower cabinets to
ensure that the cabinet combination unit is spliced to
the flat screen without dislocation.
Step 2:
Confirm the installation position of the screen on the
wall and make a mark on the wall, take a cabinet
assembly installation unit to the wall and mark the
fixing position of the drilling hole with a marker. Install
self-tapping screws on wooden walls or use
percussion drills to drill holes on cement concrete
walls to install expansion screws.
Note: During the installation process, use a level to
ensure the flatness of the cabinet assembly unit
installation.
Step 3:
Install the adjacent cabinet combination units one by
one, fix them to the wall according to the method in
step two, and tighten the screws between the left and
right cabinets.
Note: When installing between the left and right boxes,
make sure that they are flat before locking and fixing.
Step 4:
Follow the steps above to install the second layer. Use
M6x60m bolts and M6 nuts to fix the cabinets between
the top and bottom.
Note: During the installation process, ensure the
flatness of the splicing of the cabinet structure.
To Next Page
