9 KL II Series User Manual
2 PRODUCT COMPONENTS

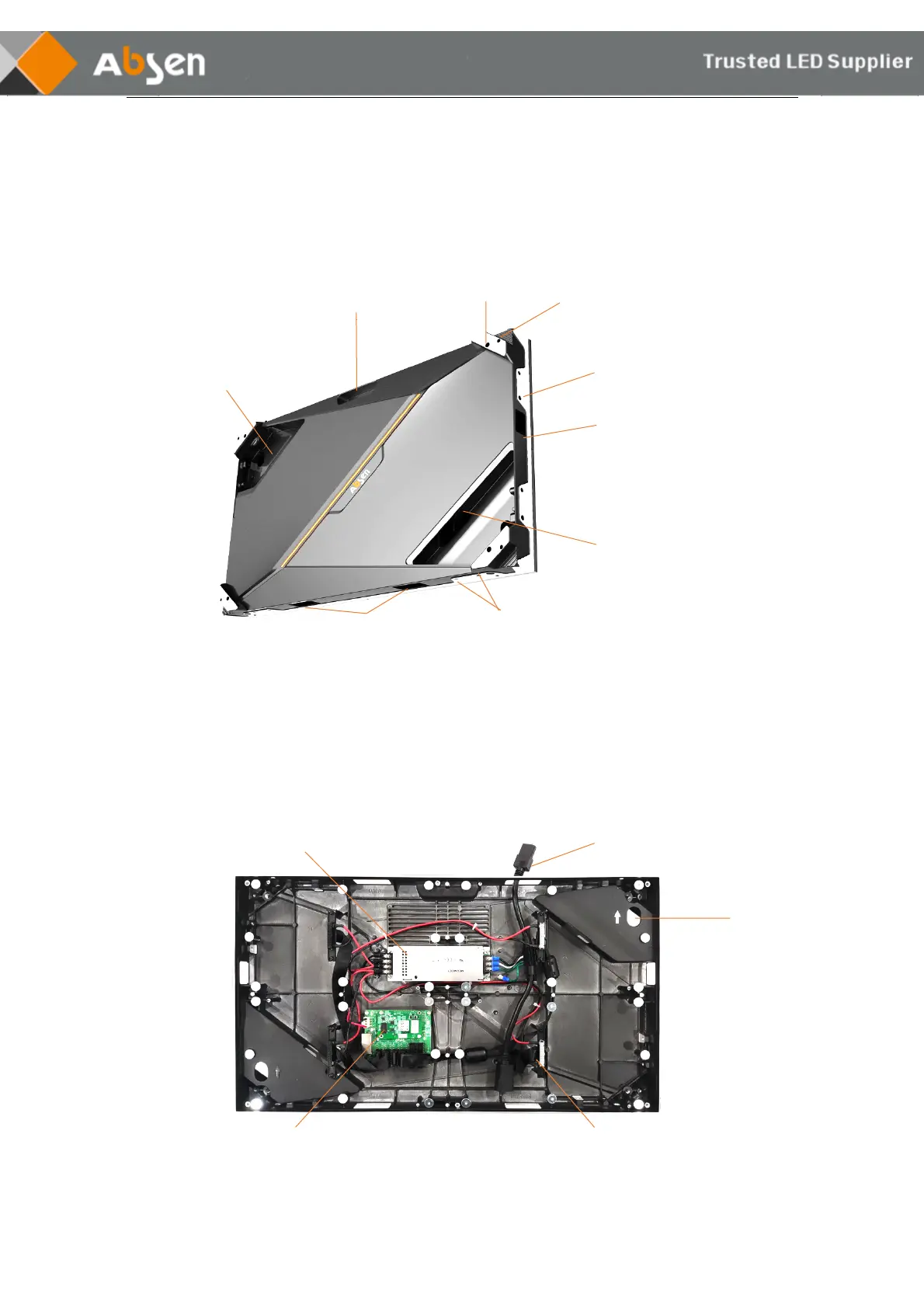

2.1 Panel Introduction
NOTE：
ü The upper & lower/side screw holes are used to connect panels, and can also be used to adjust the gap in
between.
ü Please use different screw holes base on the way of installation(front/rear)
integrated floating type socket
上下过线孔
Handle
Installation
screw hole
Side splicing screw hole
Side cable through hole
Z-axis adjusting screw hole
Upper & lower splicing
screw hole
Data cable through hole for
Rear installation
Power cable through hole
for Rear installation
Upper & lower cable
through hole
Built-in power cable for vertical
AC power cascade
Power supply unit
Receiving card
Wall mounting
through hole
