Absen NX2.5 - Product Installation

NX Series Product User Manual
18

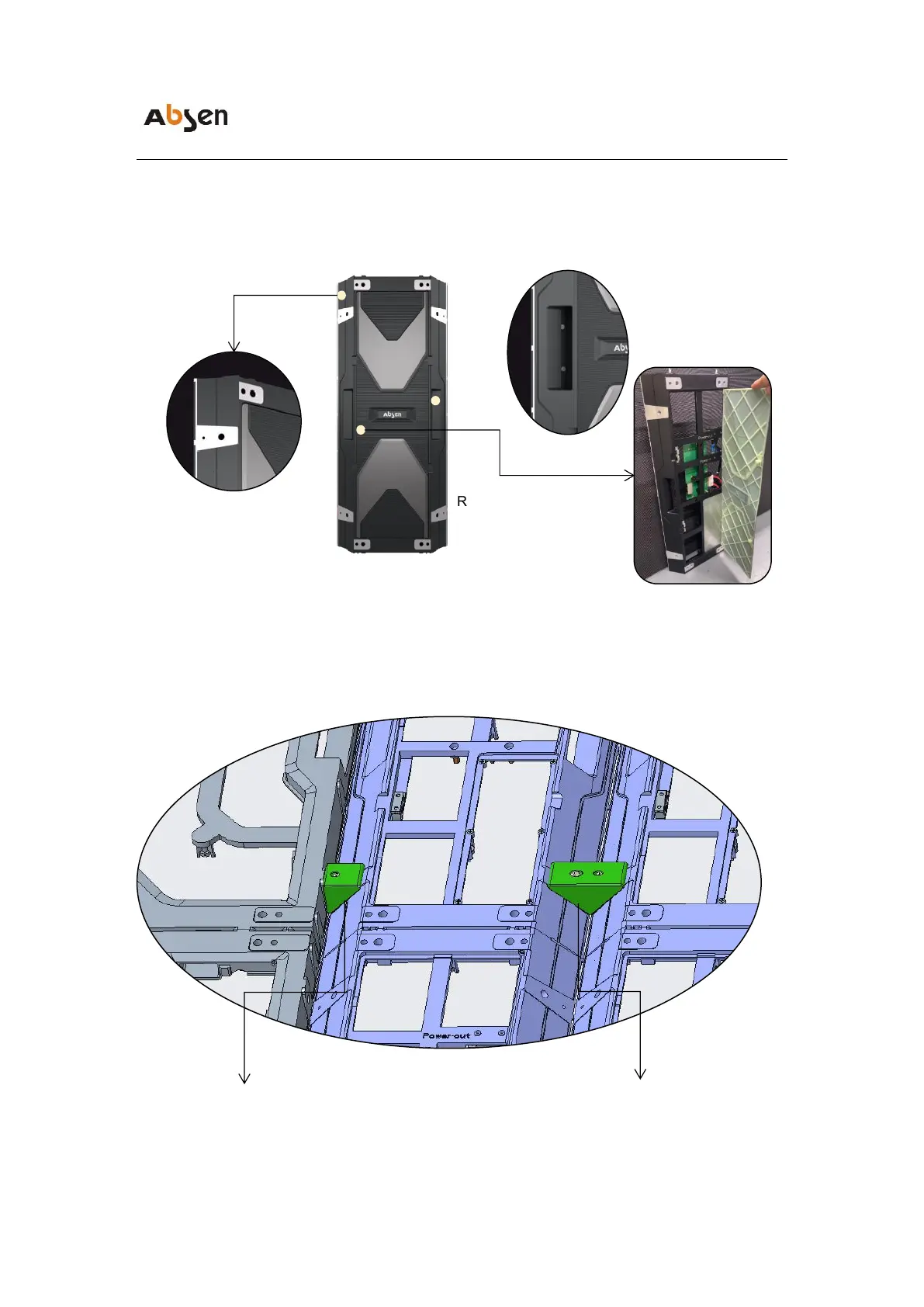

Rotary clamshell design
2.2.2 Cabinet size: 240*540mm
Small cabinets need big/small connecting block to ensure the flatness of the
screen. One cabinet is equipped with two connecting blocks.
Mounting screw: cylindrical inner hexagon full thread machine screw M6*60mm
v
v
v
Default 45° angle on both
sides.
Small connecting block (splicing
between large and small cabinets)
Big connecting block (splicing between
small and small cabinets)
Installation handles/
Left and right wiring
holes
