Absen PL Lite Series User Manual

- 20 - PL Lite Series User Manual

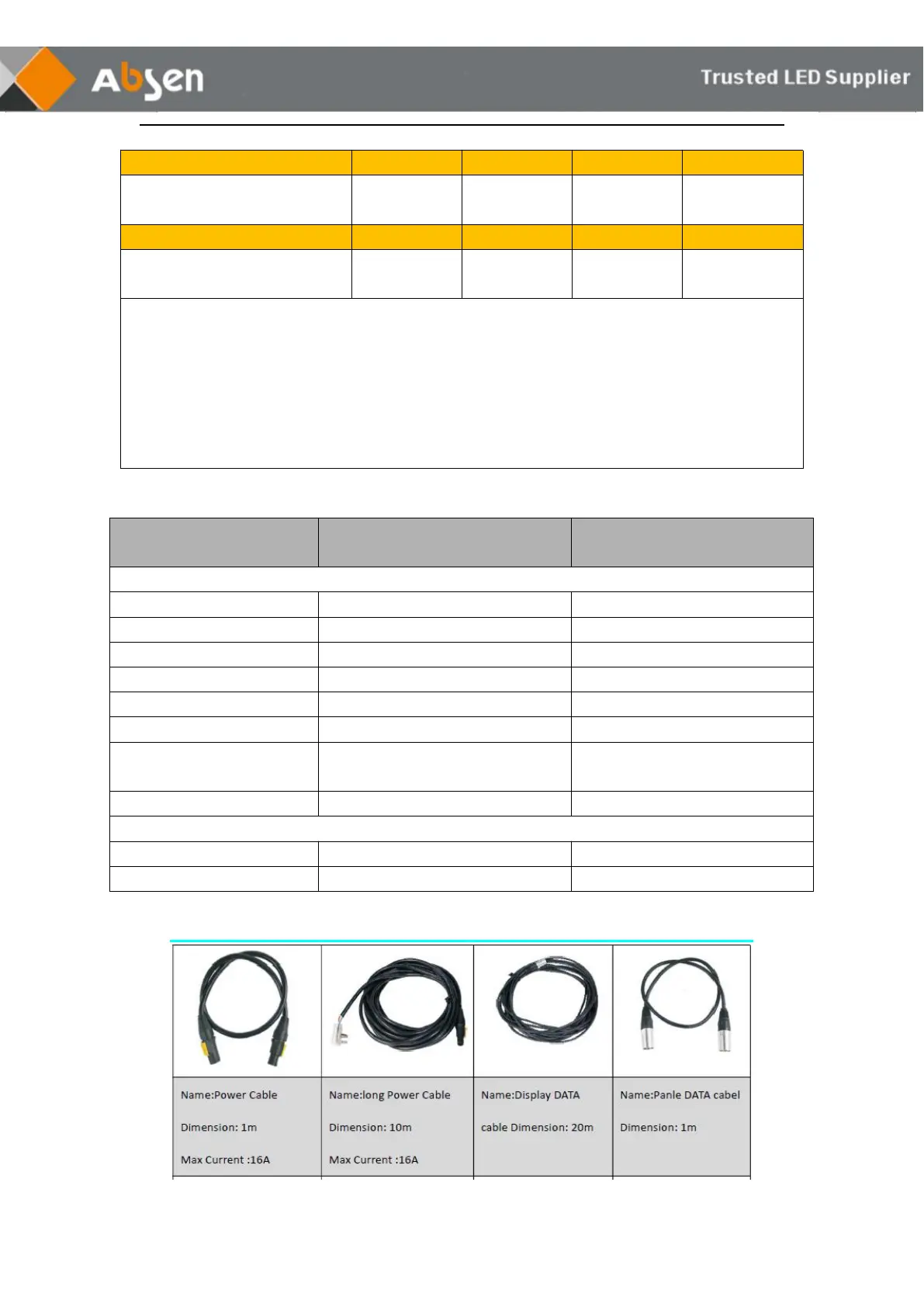

Distribution box and main cable selection:
Distribution box specification
15KW
30KW
45KW
60KW
International copper core
cable model(mm²)
4*4+1*2.5
4*10+1*6
4*16+1*10
4*25+1*16
Distribution box specification
90KW
120 KW
150 KW
180 KW
International copper core
cable model(mm²)
4*50+1*35
4*70+1*35
4*95+1*50
4*120+1*70
Remark:
In the above table, the three-phase voltage is 380V and the single-phase voltage is 220V.
The input of the distribution box is three-phase five-wire system, with a three-phase voltage
of 380V. The output is a single-phase voltage of 220V.
4*X+1*X in the table: 4 represents L+L+L+N line, 1 represents PE line, X represents the main
cable size; if the single-phase voltage is 110V, then the international copper core cable model
must be twice the size.
Power supply
Model
MEGMEET
MCP200WS-4.5A
MEGMEET
MSP260-4.5
Electrical Characteristics of Input
Input voltage range
90Vac to 264Vac
90Vac to 264Vac
Normal voltage range
100Vac to 240Vac
100Vac to 240Vac
Frequency range
47Hz-63Hz
47Hz-63Hz
Max input AC current
3.5Amax. at full load condition
3.5Amax. at full load condition
Inrush current (cold state)
80Atyp peak@220Vac
60A typ. peak@230Vac
Efficiency (full load)
88% @220Vac
89%@220Vac
Leakage Current
Less Than 3.5 mA,
@ 264Vac input
Less Than 3.5 mA,
@ 240Vac input
Normal output power
180W
250W
Electrical Characteristics of Output
Output Voltage
+4.5V
+4.5V
Rated current
40A
50A
Cable connection
