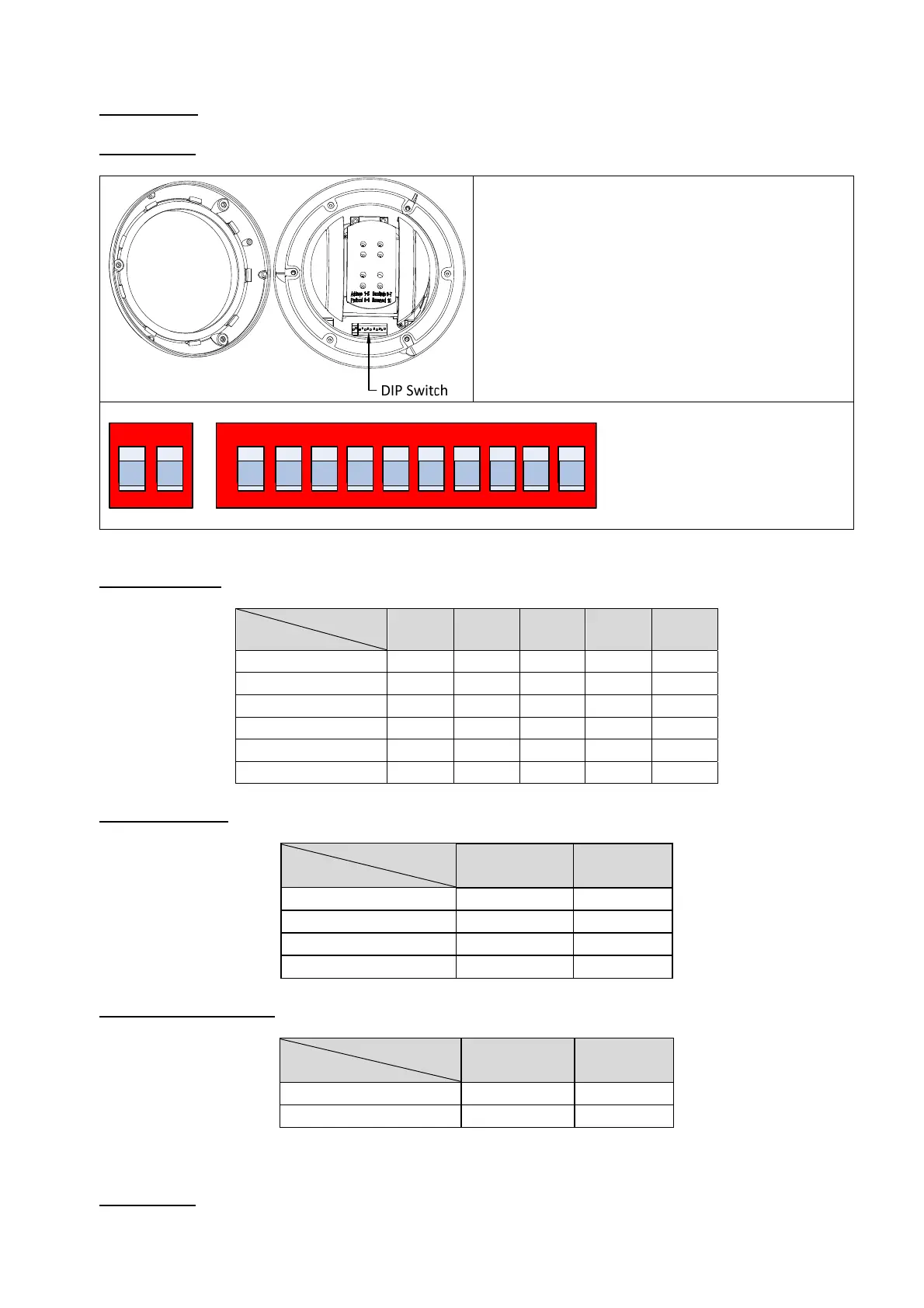

DIP switches
HDCC81000
SW 1-5: Dome ID setting
SW 6-7:
Baud rate setting
SW 8-9:
Control protocol setting
SW 10:
Not Used
17564328910
ON DIP
12
ON
Dome ID setting
SW
Dome Ad.
1 2 3 4 5
0
OFF OFF OFF OFF OFF
1
ON OFF OFF OFF OFF
2
OFF ON OFF OFF OFF
3
ON ON OFF OFF OFF
…
……………
31
ON ON ON ON ON
Baud rate setting
SW
Baudrate
6 7
2400 OFF OFF
4800 ON OFF
9600 OFF ON
19200 ON ON
Control protocol setting
SW
Protocol
8 9
Self-adaptive OFF OFF
Pelco_P ON OFF
HDCC82500
