32

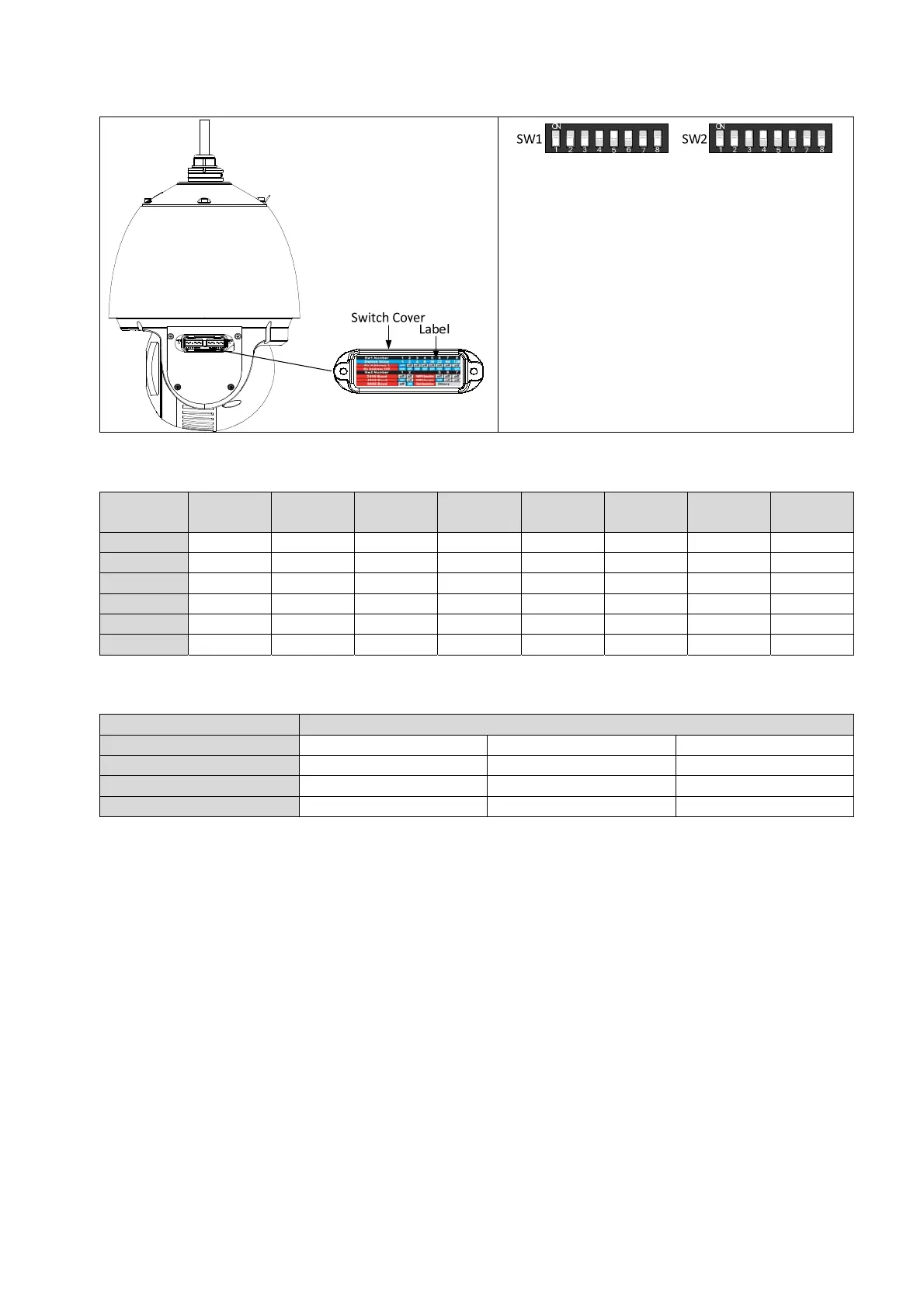

Dome ID settings (SW1, all DIP switches):
Dome ID
(address)
1
2
3
4
5
6
7
8
0
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
1
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
2
OFF
ON
OFF
OFF
OFF
OFF
OFF
OFF
3
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
-
-
-
-
-
-
-
-
-
255
ON
ON
ON
ON
ON
ON
ON
ON
Communication parameter settings (SW2, DIP 1 and 2):
DIP switch SW2 – baud rate setting
Baudrate
1
2
3
2400
OFF
OFF
OFF
9600
ON
ON
OFF
4800
OFF
ON
OFF
31
33
