9

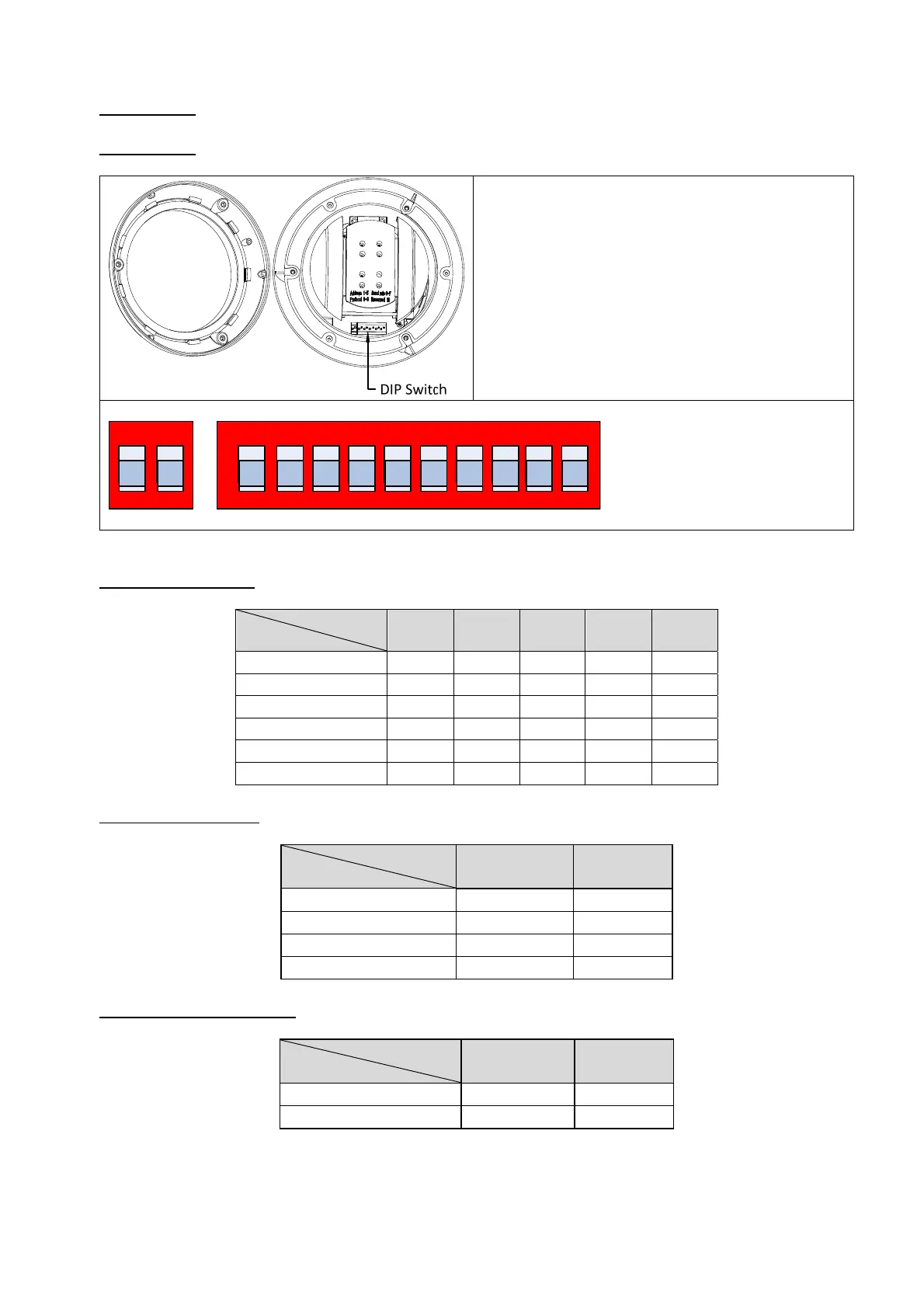

DIP-Schalter
HDCC81000
SW 1-5:
Dome ID Einstellung
SW 6-7:
Baudrateneinstellung
SW 8-9:
Steuerprotokolleinstellung
SW 10:
nicht verwendet
17
56
4
3
28
9
1
0
ON
DIP
12
ON
Dome ID Einstellung
SW
Dome Ad.
1
2
3
4
5
0
OFF
OFF
OFF
OFF
OFF
1
ON
OFF
OFF
OFF
OFF
2
OFF
ON
OFF
OFF
OFF
3
ON
ON
OFF
O
FF
OFF
…
……………
31
ON
ON
ON
ON
ON
Baudrateneinstellung
SW
Baudrate
6
7
2400
OFF
OFF
4800
ON
OFF
9600
OFF
ON
19200
ON
ON
Steuerprotokolleinstellung
SW
Protocol
8
9
Self-adaptive
OFF
OFF
Pelco_P
ON
OFF
8
10
