Abus TVAC15000 - Camera description; Cable connections

29
English

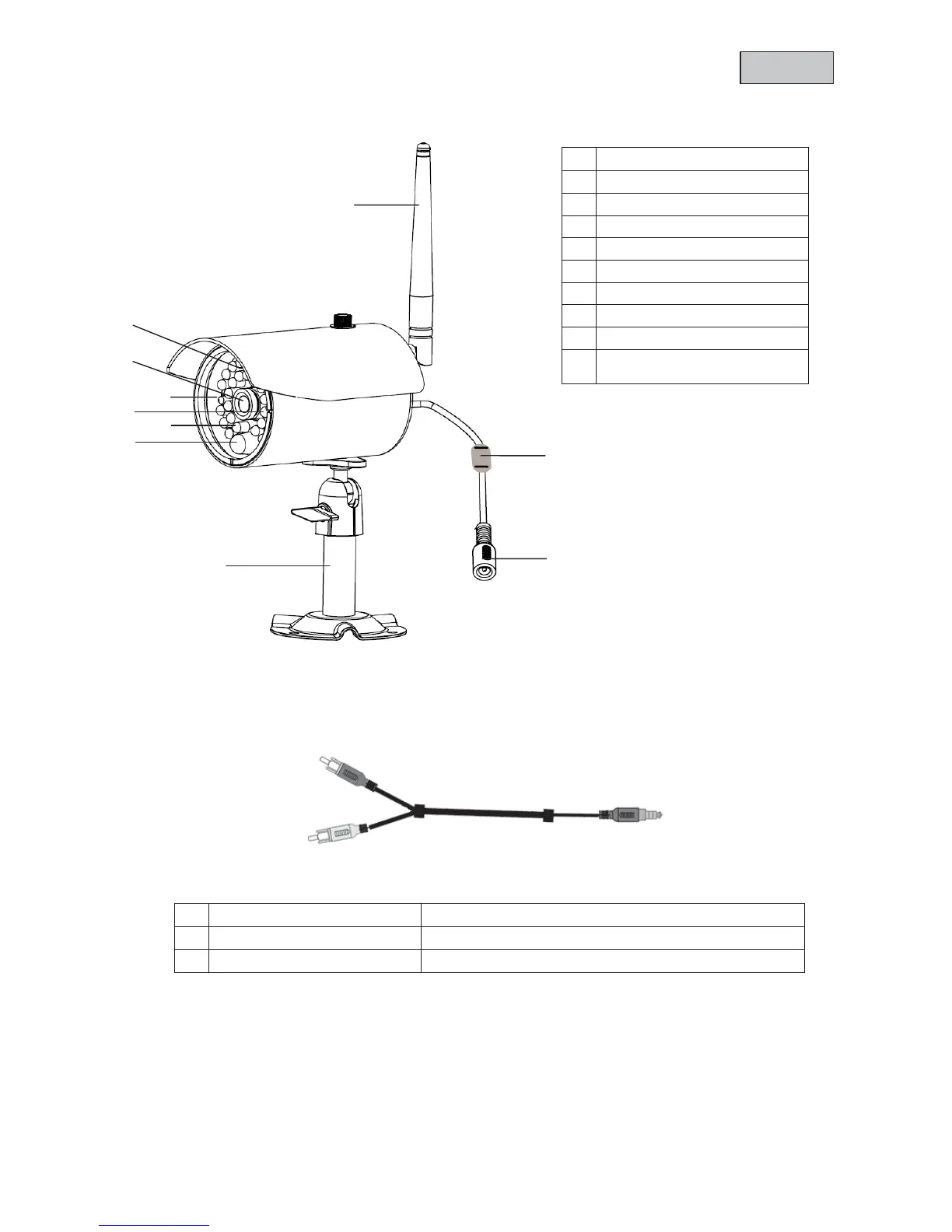

4.4 Camera description
4.5 Cable connections
To connect the video RCA plug to a BNC input on a monitor or recorder, attach the BNC-RCA adapter to the
yellow RCA plug.
c
Antenna
N
Light sensor
O
Fixed lens
P
Power LED
Q
LINK LED
R
IR LED
S
PIR sensor
T
Camera mount
U
Pairing button
V
Power supply connection
5 V DC/1 A
c
Yellow RCA plug (video)
Connection for transmitting the video signal
N
White RCA plug (audio)
Connection for transmitting the audio signal
e
Jack plug
Plug for connecting to the monitor
c
d
c
N
O
P
Q
R
S
T
U
V
e
