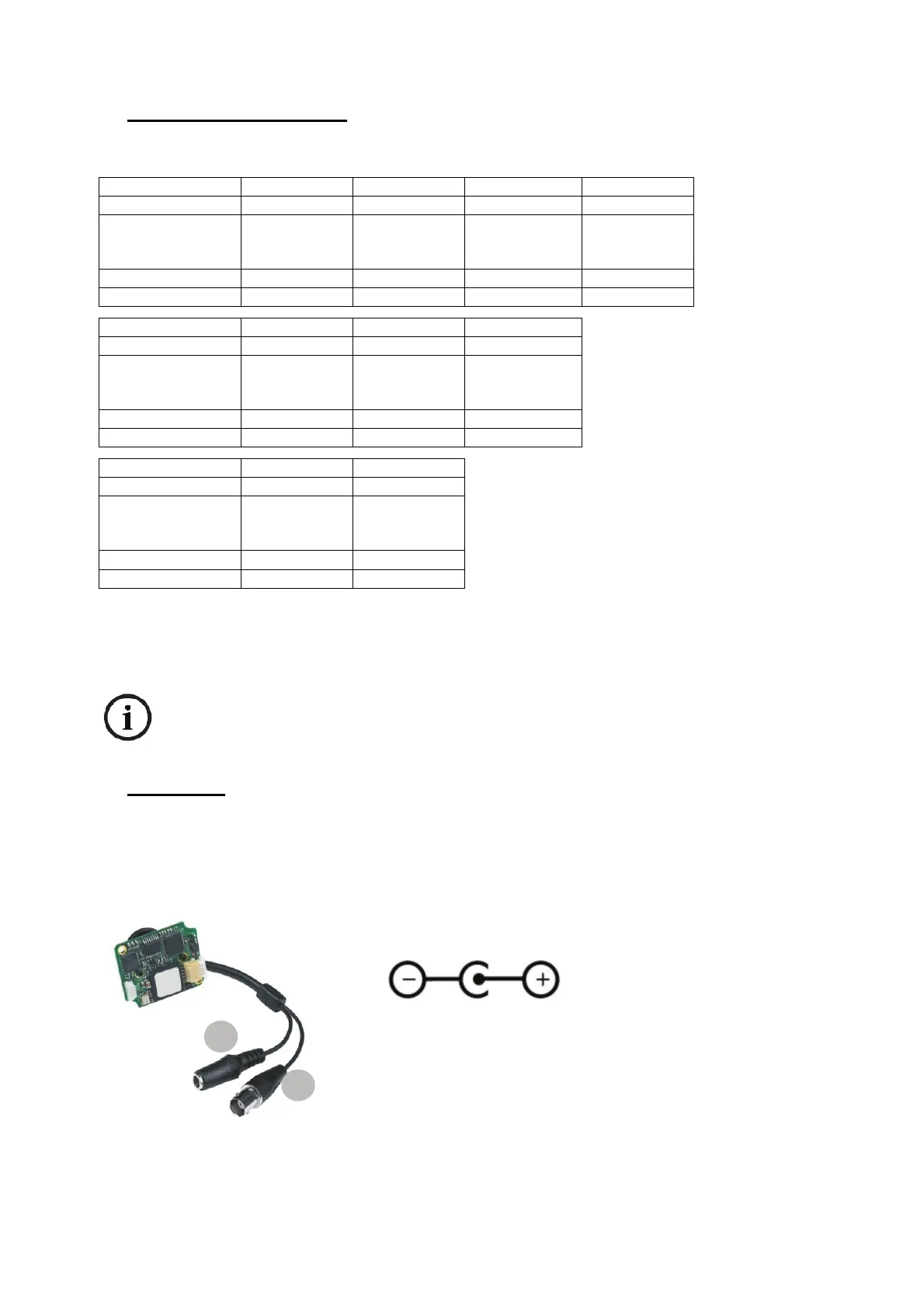

5. Description of device
5.1 Overview – type numbers
Article number TVCC10000 TVCC10500 TVCC10010 TVCC10510
Resolution 380 TVL 380 TVL 480 TVL 480 TVL
Day/Night
(Removable IR
cut filter)
- - - -
WDR - - - -
Lens type Mini Pinhole Mini Pinhole
Article number TVCC10020 TVCC10520 TVCC10030
Resolution 520 TVL 520 TVL 520 TVL
Day/Night
(Removable IR
cut filter)
- -

WDR - - -
Lens type Mini Pinhole Mini
Article number TVCC10041 TVCC10541
Resolution 520 TVL 520 TVL
Day/Night
(Removable IR
cut filter)
- -
WDR
 
Lens type Mini Pinhole
5.2 Unpacking
While you are unpacking the device please handle it with utmost care.
If you notice any damage of the original packaging, please check at first the device.
If the device shows damages, please contact your local dealer.
6. Mounting
6.1 Main connectors
All board cameras are equipped with a 12VDC connector. The connection of the power supply
voltage can be done by using the DC connector (5.5mm x 2.1mm) of the supplied cable.
(1) Power supply (DC connector)
(2) Video signal (BNC connector)
1
2
