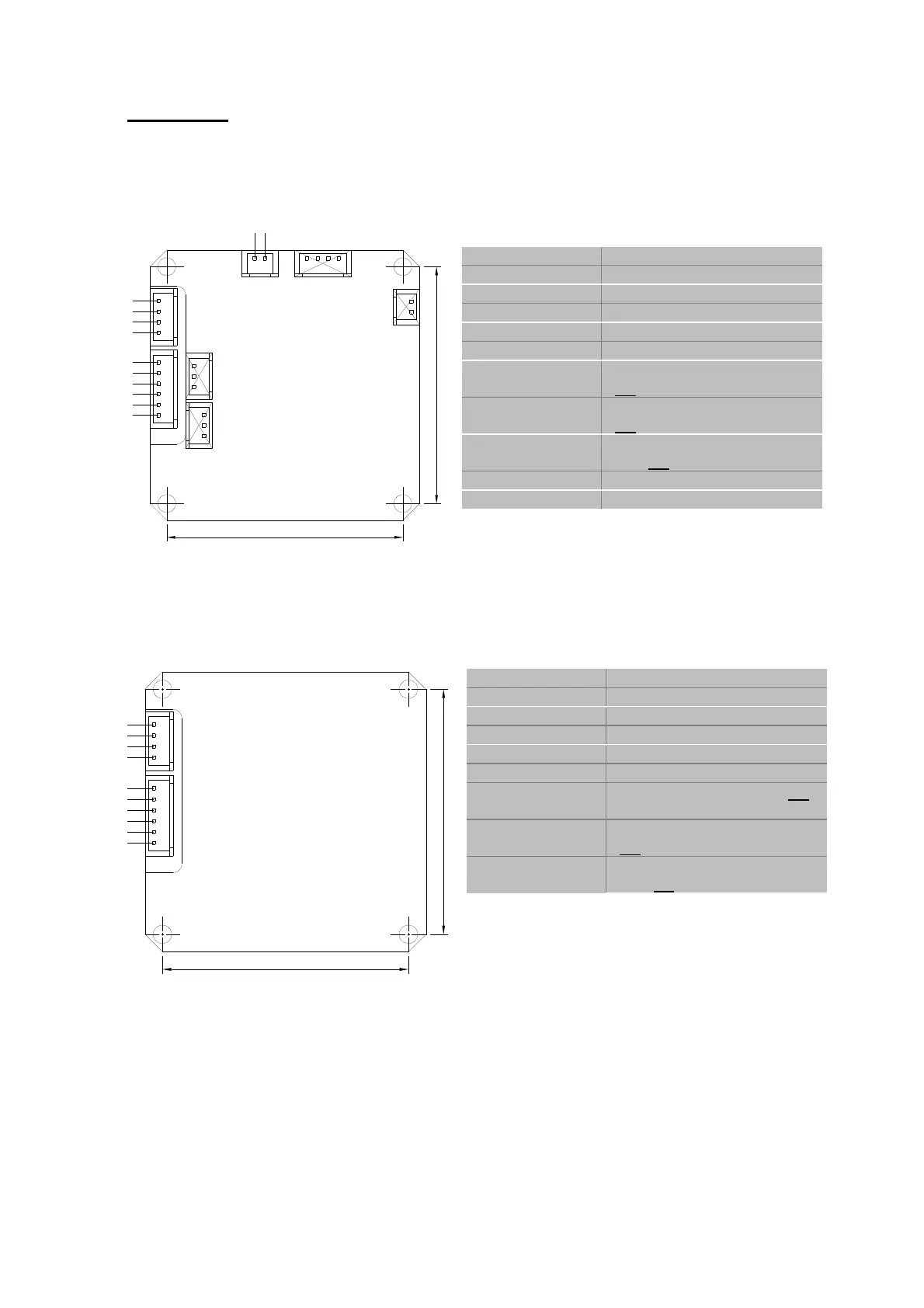

7. Rear view
TVCC10000 / TVCC10500 / TVCC10010 / TVCC10510 / TVCC10020 /
TVCC10520 / TVCC10030
TVCC10041 / TVCC10541
Connector / PIN Function
+12V Power supply +12VDC
GND Ground
Video Video signal
GND Ground
NC Not used
AGC Automatic Gain Control
(On / Off)
BLC Backlight compensation
(On / Off)
Mirror Horizontal Mirroring
(On / Off) (pin wire set)
NC Not used
GND Ground
In order to switch the function use a wire and connect
/disconnect the corresponding PIN to GND. The
default values are underlined.
Connector / PIN Function
DC12V Power supply +12VDC
GND Ground
VIDEO Video signal
GND Ground
NC Not used
WD Wide Dynamic Function (On /
Off)
AGC Automatic Gain Control
(On / Off)
Mirror Horizontal Mirroring
(On / Off)
In order to switch the function use a wire and connect
/disconnect the corresponding PIN to GND. The
default values are underlined.
28 mm
28 mm
ICR
+12V
GND
Video
GND
NC
AGC
BLC
Mirror
NC
GND
Rear View
28 mm
28 mm
+12V
GND
Video
GND
WD
AGC
Mirror
NC
GND
Rear View
NC
