1. Intended use
This WLAN pan/tilt camera is a versatile surveillance solution for home or office. The camera can
be connected to a network wirelessly without an additional LAN cable and has motion detection
with a passive infrared sensor and an integrated loudspeaker, which emits a loud tone in the event
of an alarm. the loudspeaker and the integrated microphone enable two-way audio communication
via the camera's web interface using a microphone linked up to a computer. External sounders,
e.g. a siren or a light, which react in the event of a detection, can be controlled via the alarm output.
In addition, the camera has 12 integrated infrared LEDs which are activated when it gets dark,
therefore making it suitable for 24/7 surveillance use. Even in total darkness, the camera makes
detailed recordings and allows objects to be identified at a distance of up to 5 metres, while the
WDR function optimally compensates image contrasts in the event of excessive backlight.

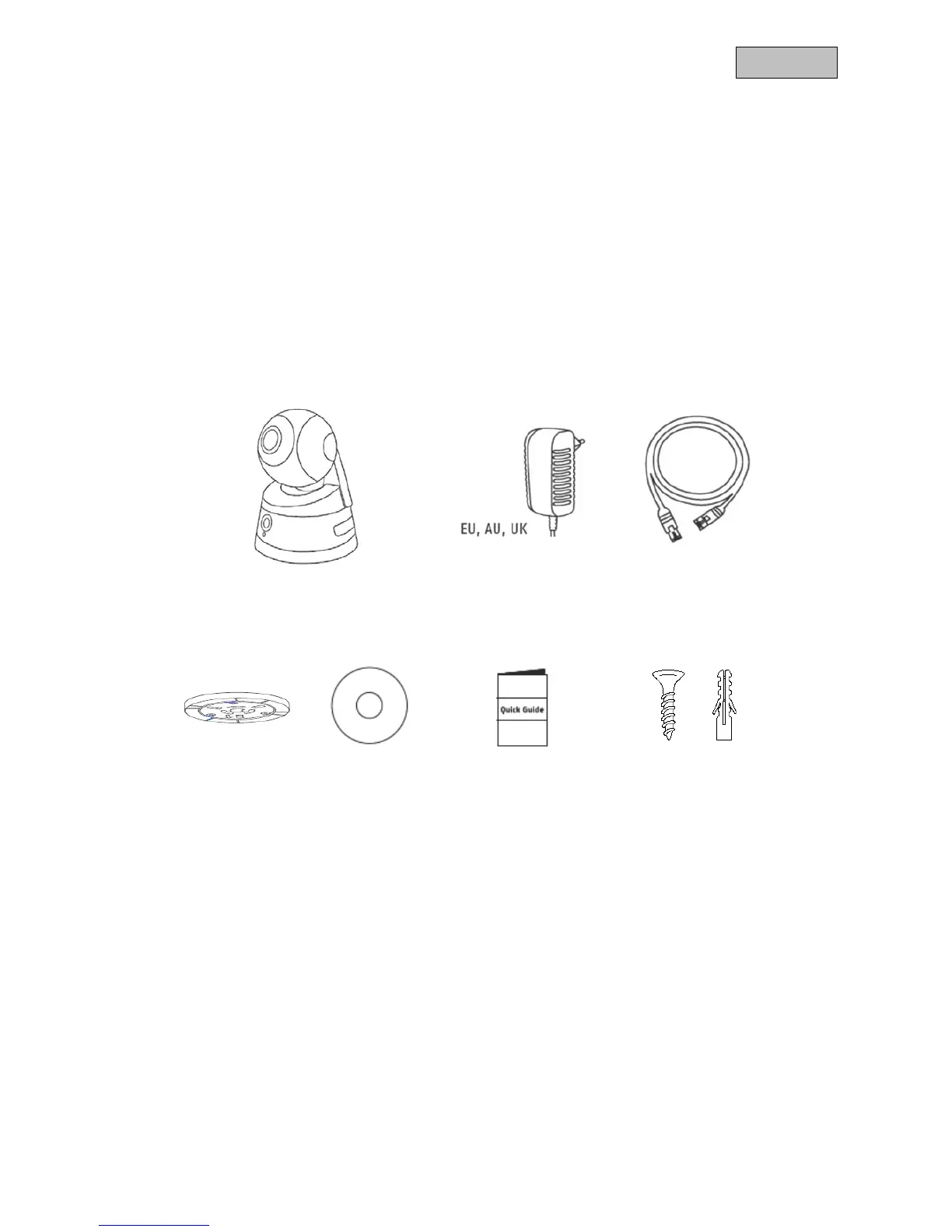

2. Scope of delivery
WLAN HD 720p pan/tilt
Indoor camera with alarm function
Power supply unit 1 m network cable
Ceiling bracket CD
Quick start guide
Installation material
3. Features and functions
• WLAN pan/tilt camera with infrared night vision function and motion detection
• Detailed high resolution, thanks to 1280 x 720 pixels at 25 frames/second
• Integrated loudspeaker, which sounds a loud alarm in the event of an incident
• Web and mobile access to live images and panning and tilting using the IPCam app and
a browser
• Integrated microSD card slot for internal data storage, which functions as a back up
solution
• 12 Integrated IR LEDs, which are automatically activated in the dark
• Motion detection via passive infrared sensor
• With WDR function for backlight compensation – ideal for entrance areas
• Includes alarm output for an external alarm device (e.g. siren, light)
• WPS button for easy set-up of the WLAN connection
79
