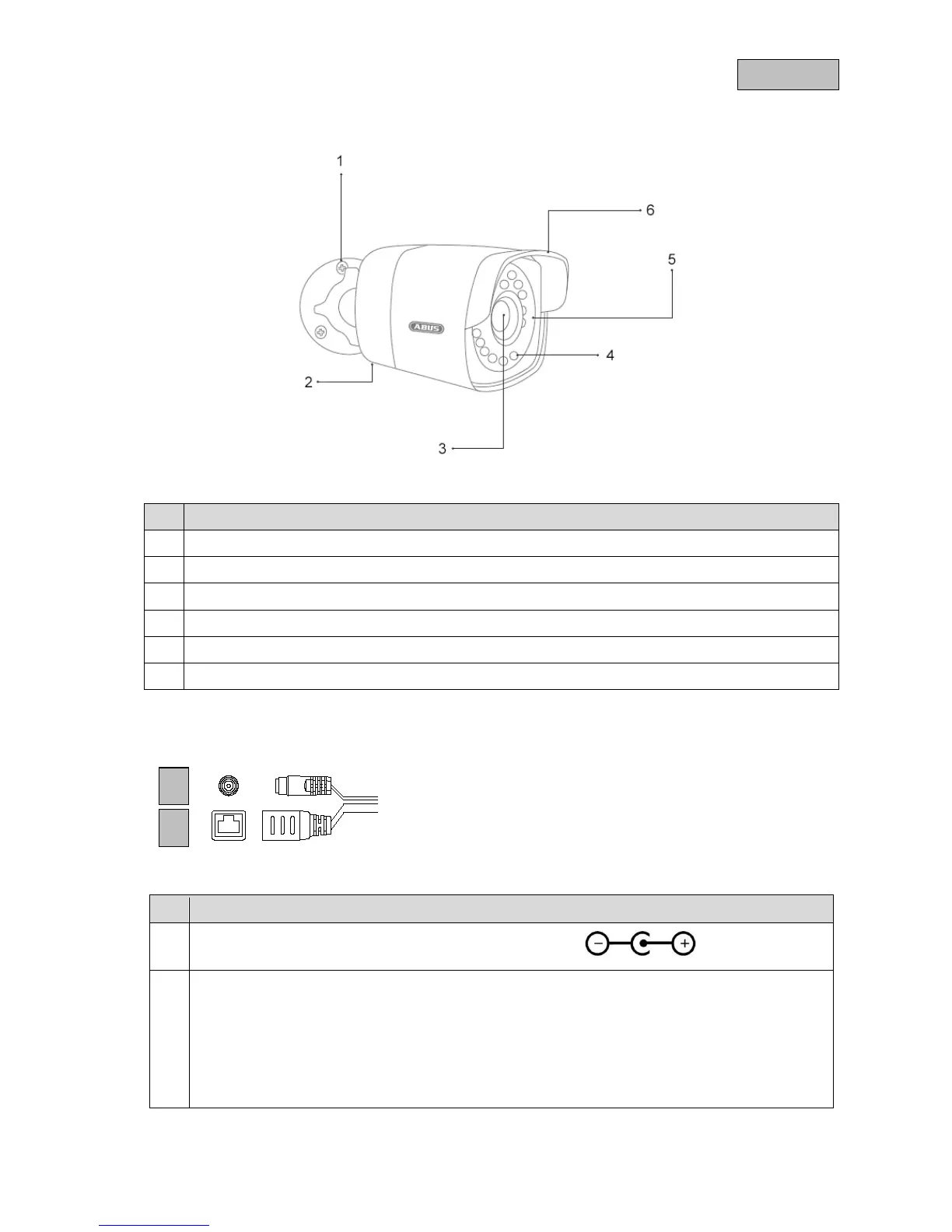

2.2. TVIP61560
No. Description

Base plate

WPS/reset button & microSD card slot inside

Lens

Photo sensor for day/night switching

IR LEDs

Sun shield
3. Description of the connections
No.
Description
1
12 V DC power supply connection (round plug 5.5x2.1 mm)
2 Network access (RJ45, PoE-compatible)
The network access includes a cover, which can be used if necessary. This cover provides
additional protection by preventing moisture from entering the equipment. When using the cover,
the network cable must only be connected (crimped) to the network plug once it has been
passed through the cover. In addition, the connections (as well as the power supply connection)
can be sealed with insulation tape.
