4.2.2. Orientation of the camera

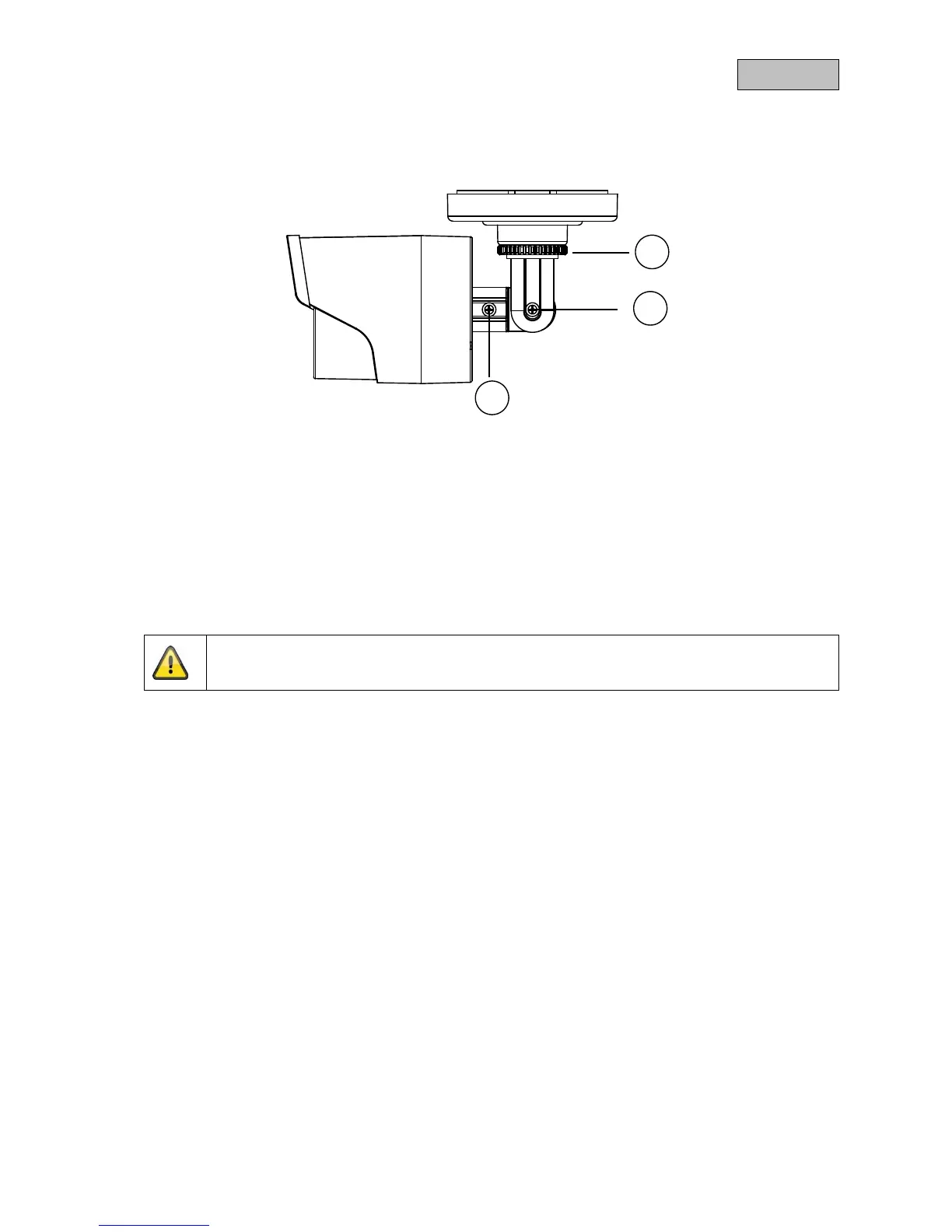

The camera can be aligned in three axes.
Panning: 0°–360°
Loosen the rotary wheel (1) to adjust the alignment horizontally.
Inclination: 0°–90°
Loosen the screw (2) to adjust the alignment vertically.
Rotation: 0°–360°
Loosen the screw (3) to adjust the rotation of the camera image.
Do not forget to tighten up the screws again!
1
2
3
