Connections

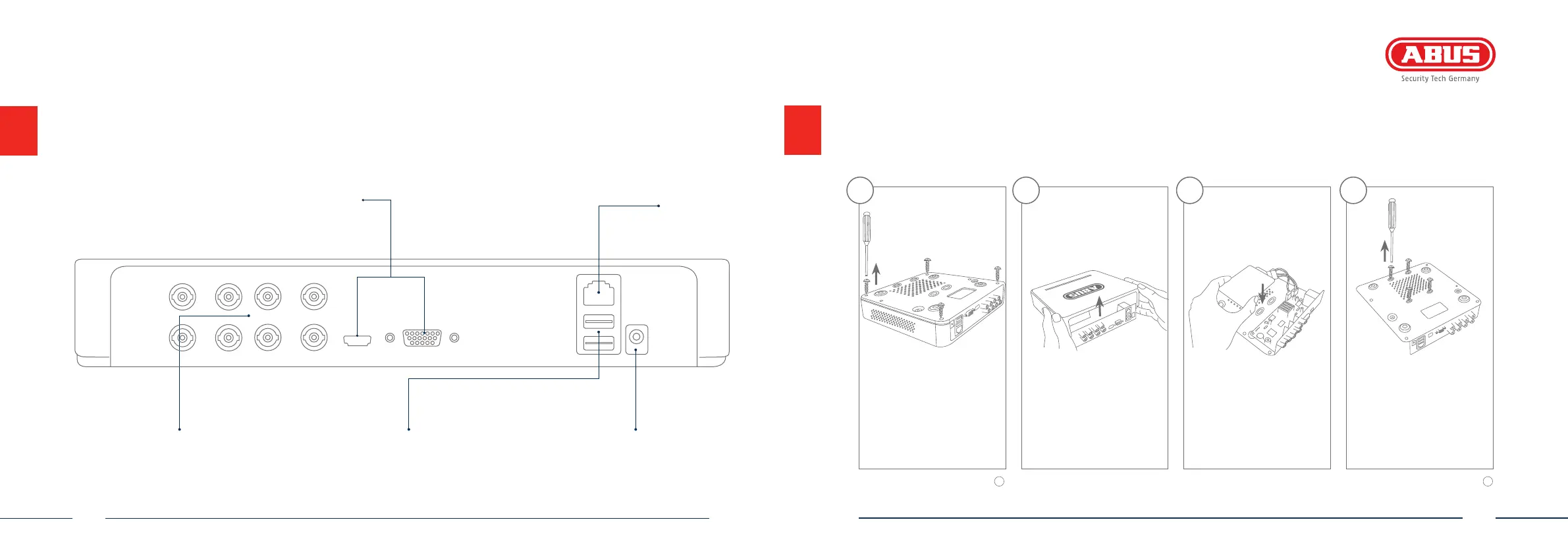

Hardware Installation
Remove the 4 screws on the
underside of the recorder.
Open the box carefully. Align the hard disk drive
with the base plate of
the recorder.
Please ensure that you begin with step
1
for the hardware installation of TVVR33008. The hardware installation for the video surveillance kits TVVR33408 and TVVR33418 starts at step
8
,
as the hard disk drive is pre-installed for these models.
Secure the hard disk drive
onto the underside of
the recorder with the
accompanying screws.
1 3 42
Video - In
BNC input for analogue cameras
USB
Connection for USB devices
12 V
12 V DC power connection
LAN
RJ45 port for a
network connection
Video - Out
