11

INSTALLATION

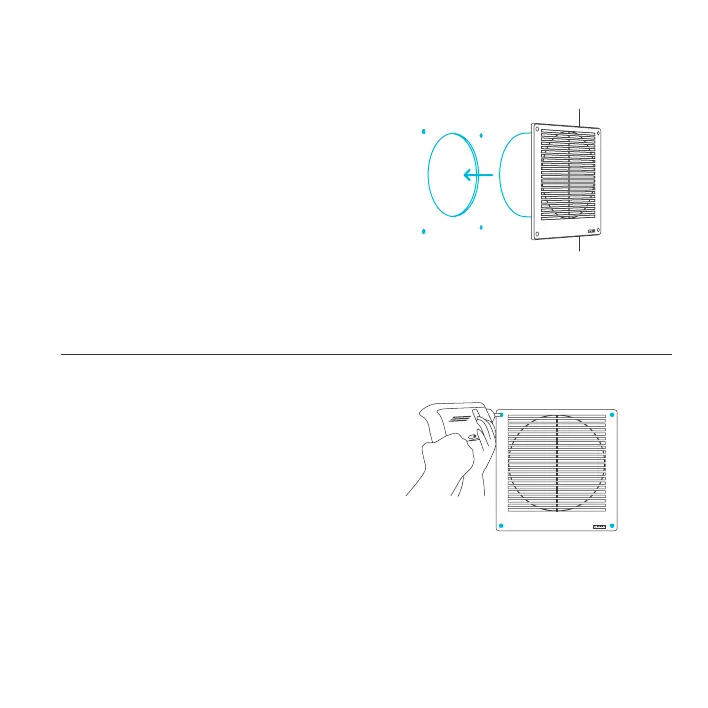

STEP 5

Insert the rear faceplate into the circular cutout,

making sure the mounting holes line up.

STEP 6

Drill the wood screws into the anchors to

secure the rear faceplate.
