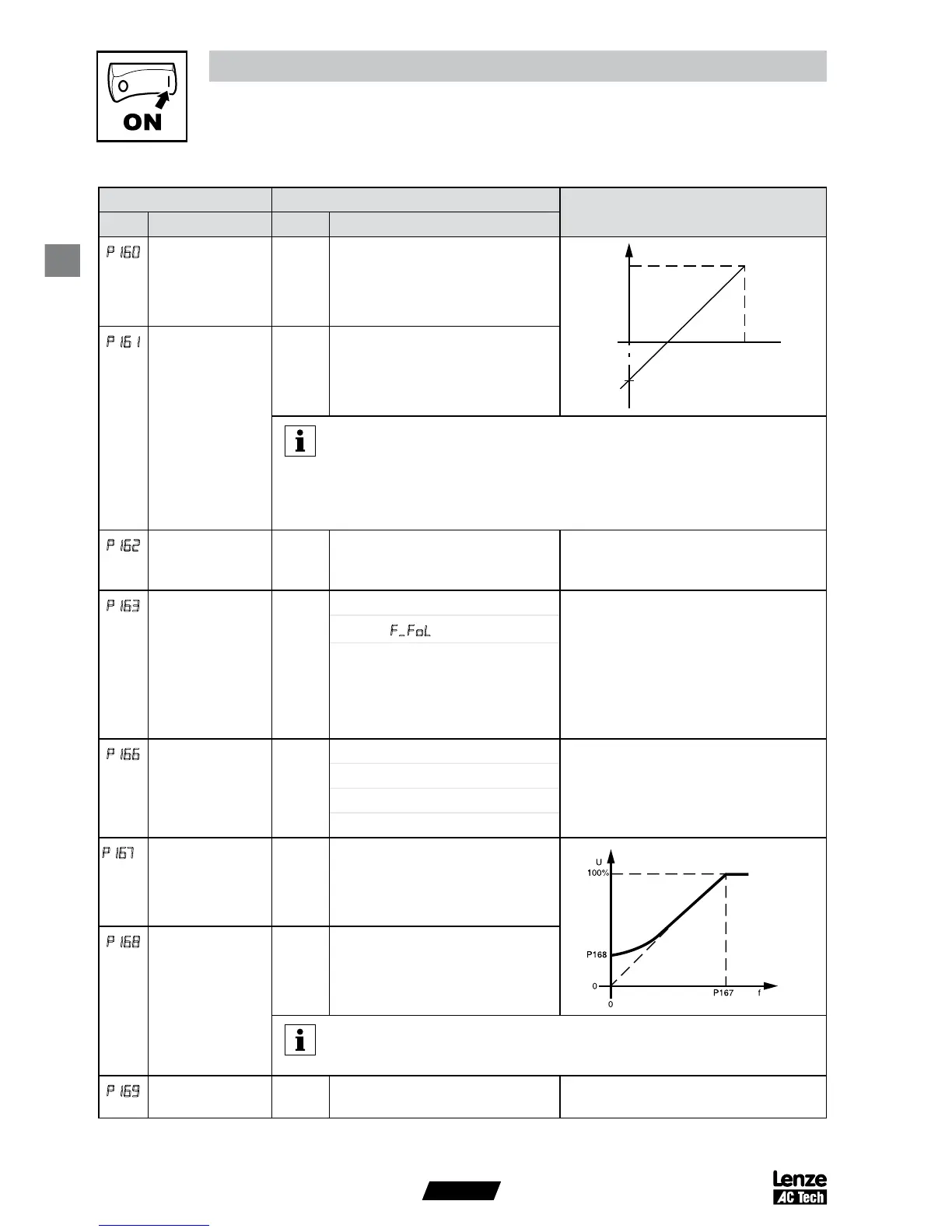

V0111
Speed at
Maximum Signal
60.0
-999.0 {Hz} 1000
Note
• P160 sets the output frequency at 0% analog input
• P161 sets the output frequency at 100% analog input
• P160 or P161 < 0.0 Hz: For scaling purposes only; does not indicate
opposite direction!
• P
160 > P161: Drive will react inversely to analog input signal
Analog Input
Filter
0.01 0.00 {s} 10.00 Adjusts the filter on the analog inputs
(TB-5 and TB-25) to reduce the effect
of signal noise
TB-25 Loss
Action
0 0 No Action • Selects the reaction to a loss of the
4-20 mA signal at TB-25.
• Signal is considered lost if it falls
below 2 mA
• Digital outputs can also indicate a
loss of 4-20 mA signal; see P140,
P142
1 Fault
2 Go to Preset when TB-25 is:
Speed reference: P137
PID feedback source: P137
PID setpoint reference: P233
Torque reference: P333
Carrier
Frequency
1 0 4 kHz • As carrier frequency is increased,
motor noise is decreased
• Observe derating in Section 2.2
• Automatic shift to 4 kHz at 120%
load
1 6
kHz
2 8 kHz
3 10 kHz
(1)
Base Frequency 60.0 10.0 {Hz} 1500
V0112
Fixed Boost 0.0 {%} 30.0
Note
• P167 = rated motor frequency for standard applications
• P168 default setting depends on drive rating
Accel Boost 0.0 0.0 {%} 20.0 Accel Boost is only active during
acceleration
(1) Any changes to this parameter will not take effect until the drive is stopped
