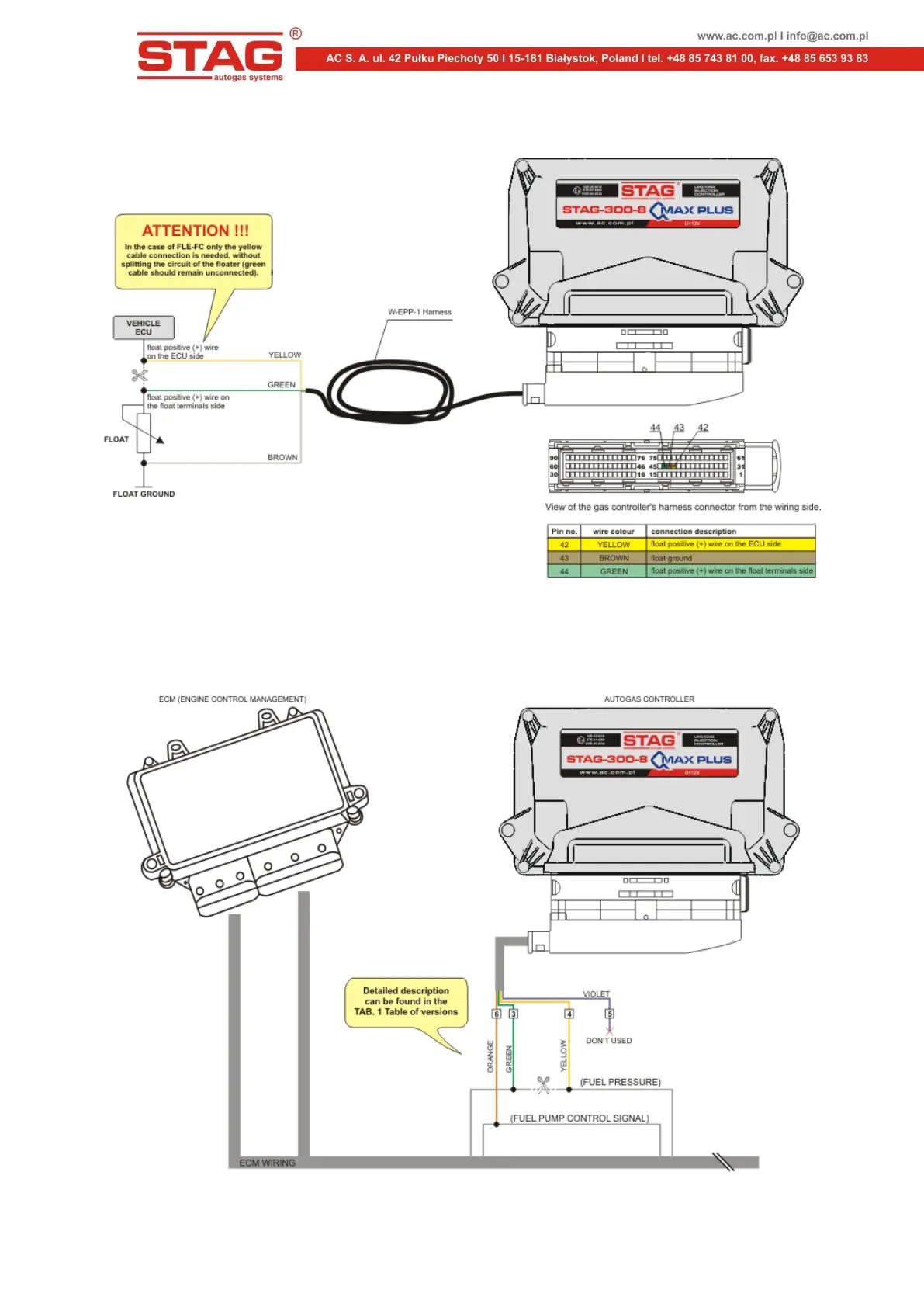

Fig. 9 Wiring diagram for fuel level emulator FLE connection to STAG-300 QMAX PLUS.
1.7. Wiring diagram for fuel pressure emulator FPE
Fig. 10 Wiring diagram for fuel pressure emulator FPE connection to STAG-300 QMAX PLUS.
