2.21. Digital recorder
Advanced functionality of STAG gas controller, allowing observation of the electrical pulse curves in
the monitor window. This function records the real pulsing of petrol injectors, gas injectors or rpm
signals vs. time, like in advanced measuring tools, e.g. an oscilloscope.

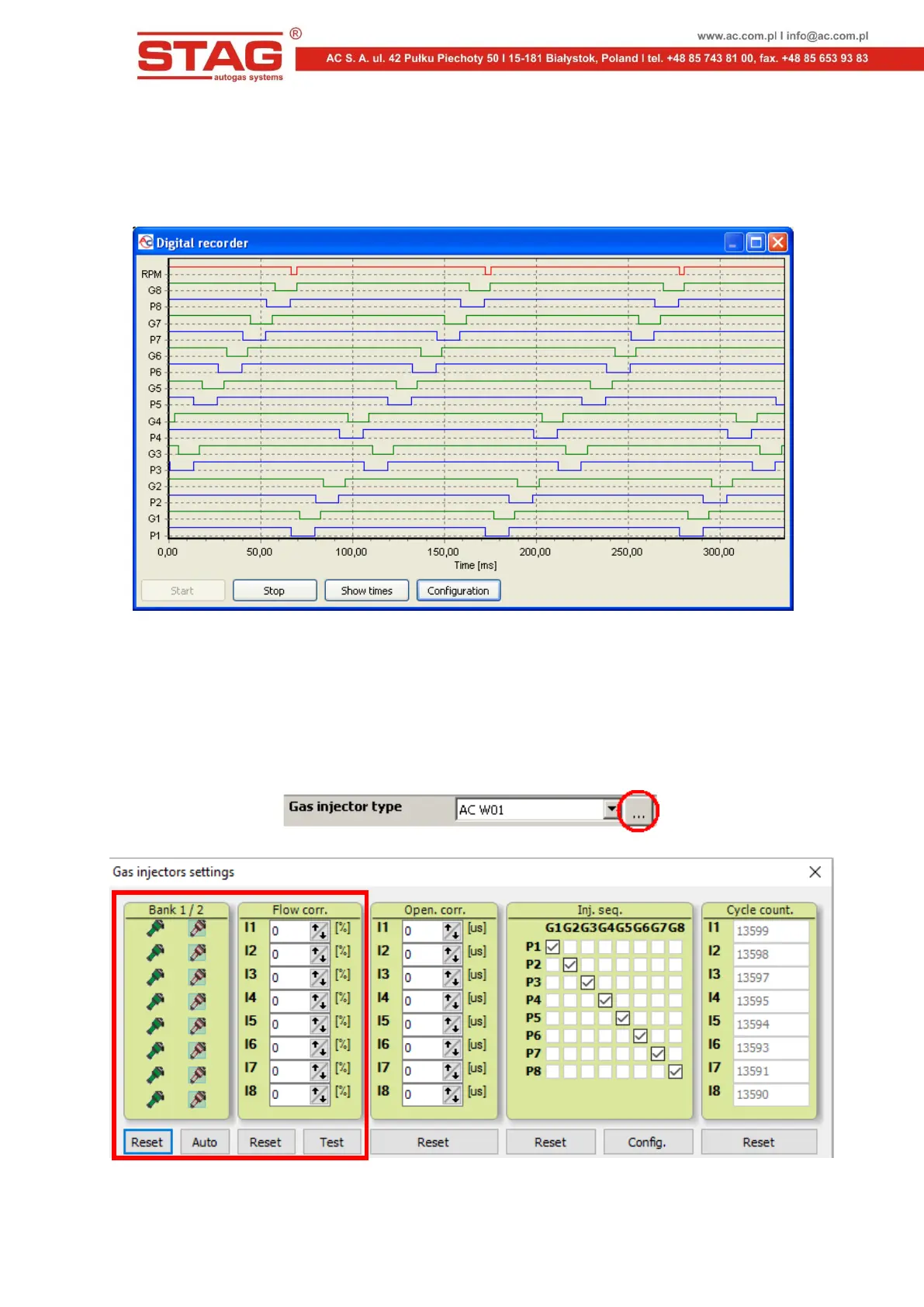

Fig. 50 Digital recorder window
2.22. Assignment of gas injectors to banks
In V engines and boxer engines, the controller can include 2 banks. Bank 1 and Bank 2 (correction
values for OBD STFT B2 and LTFT B2 are other than zero). In such case, gas injectors should be
assigned to respective banks.
Press the gas injectors configuration button in the gas controller settings tab, group “Sensors and
actuating devices”.
The “Gas injectors settings” will be displayed.
Fig. 51 Assignment of gas injectors to banks.
