1.6. Wiring diagram for fuel level emulator FLE

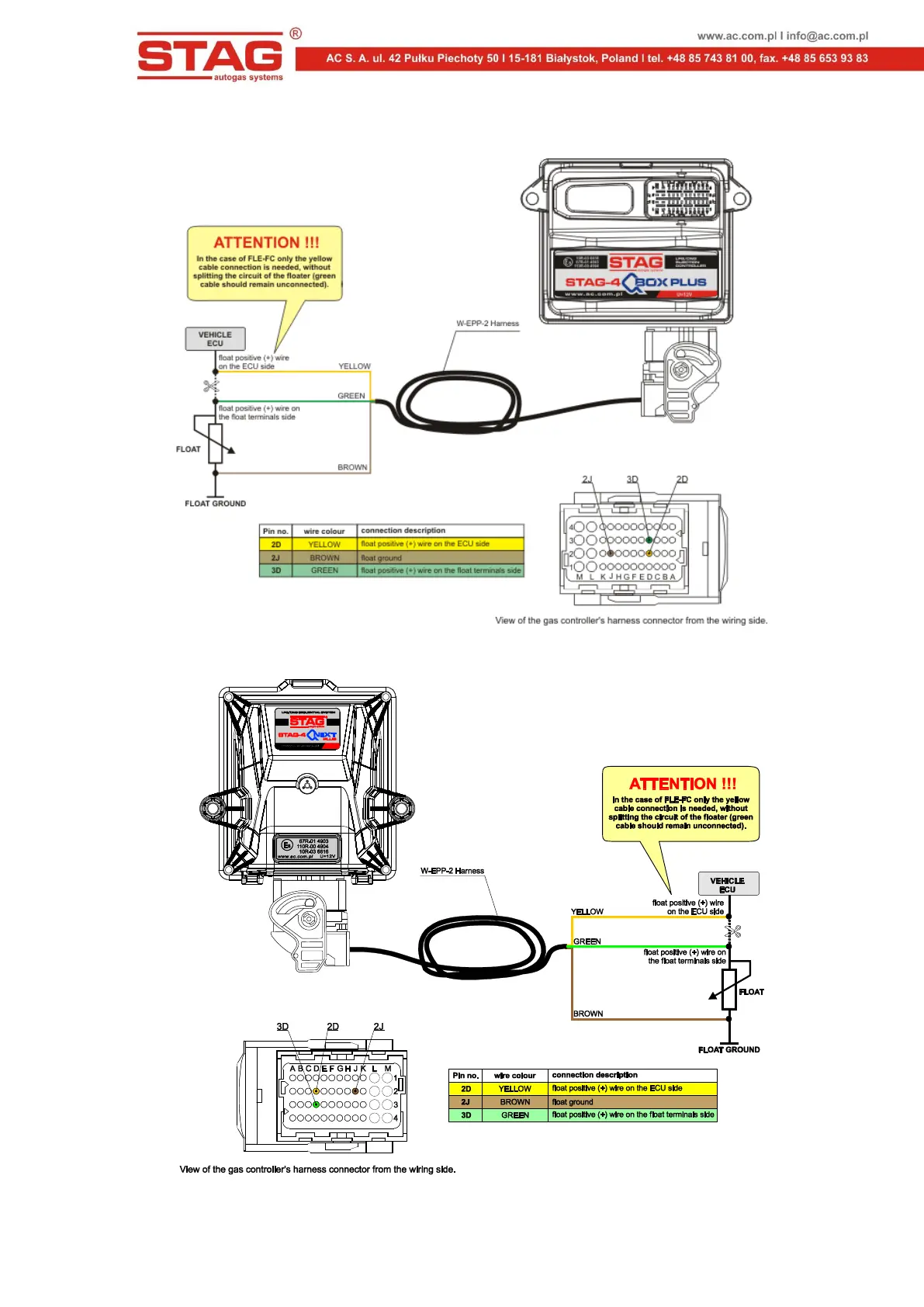

Fig. 7 Wiring diagram for fuel level emulator FLE connection to STAG-4 QBOX PLUS.
Fig. 8 Wiring diagram for fuel level emulator FLE connection to STAG-4 QNEXT PLUS.
