1. Controller installation
To ensure proper and long-lasting operations of STAG Autogas systems in vehicles equipped
with START/STOP engine mode, high-durability gas valves are recommended to mount. The
proper valve shall be marked with additional "H3" symbols meaning 1,000,000 switching
operations endurance, according to paragraph 4.7 of Annex 3 of regulation no. 67, Revision 4.
1.1. Layout diagram STAG-4 QBOX BASIC

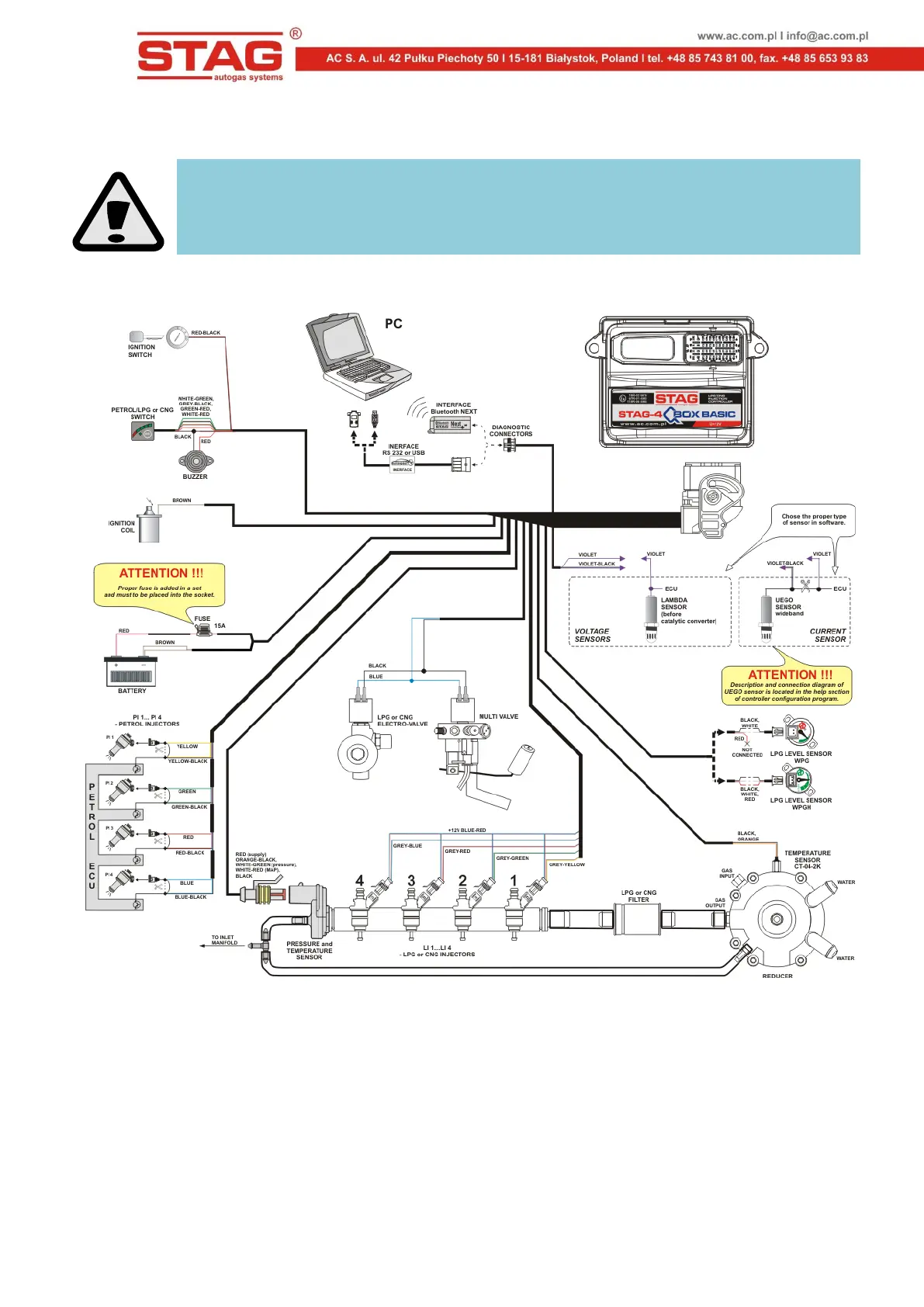

Fig. 1 STAG-4 QBOX BASIC controller installation layout diagram
