FORD MUSTANG
Engi
ne
Year of
manufac
ture
Petrol ECM harness
Installation notes
Conne
ctor
Pin No.
Wire colour
Signal
4.0
2009
B
12
light blue-red
Fuel pump control signal
ECM location
B
3
red
Fuel pressure sensor signal

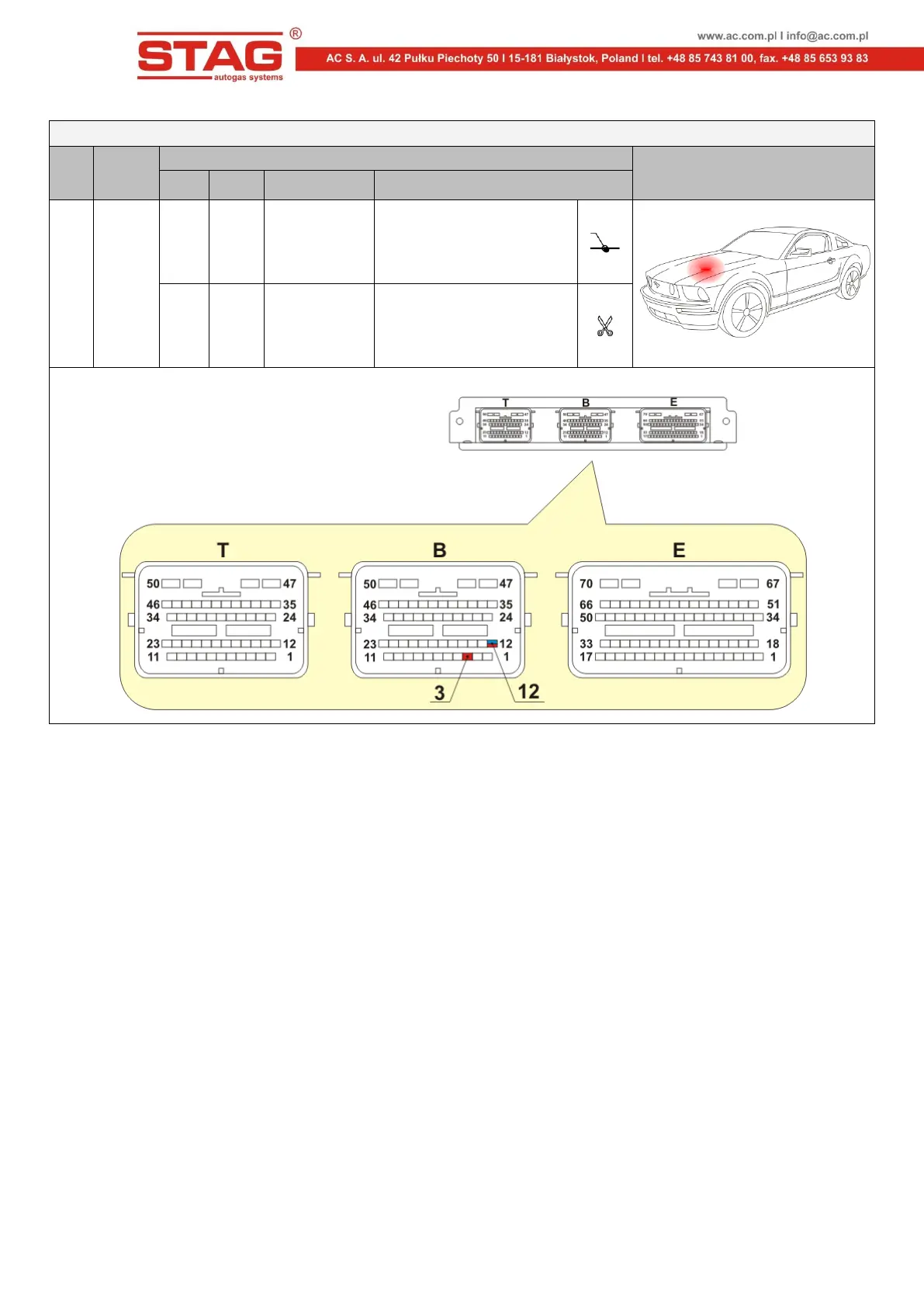

View of the pins in the connector of the petrol controller.
