Accuphase C-2810 - Selector LED Lighting Fix

Accuphase Laboratory Inc.
Issued 2007- 3-7
MODEL : C-2810
SUBJECT : Selector LED lighting is not carried out.
項目 : ｾﾚｸﾀLED点灯せず
No. C-2810-004

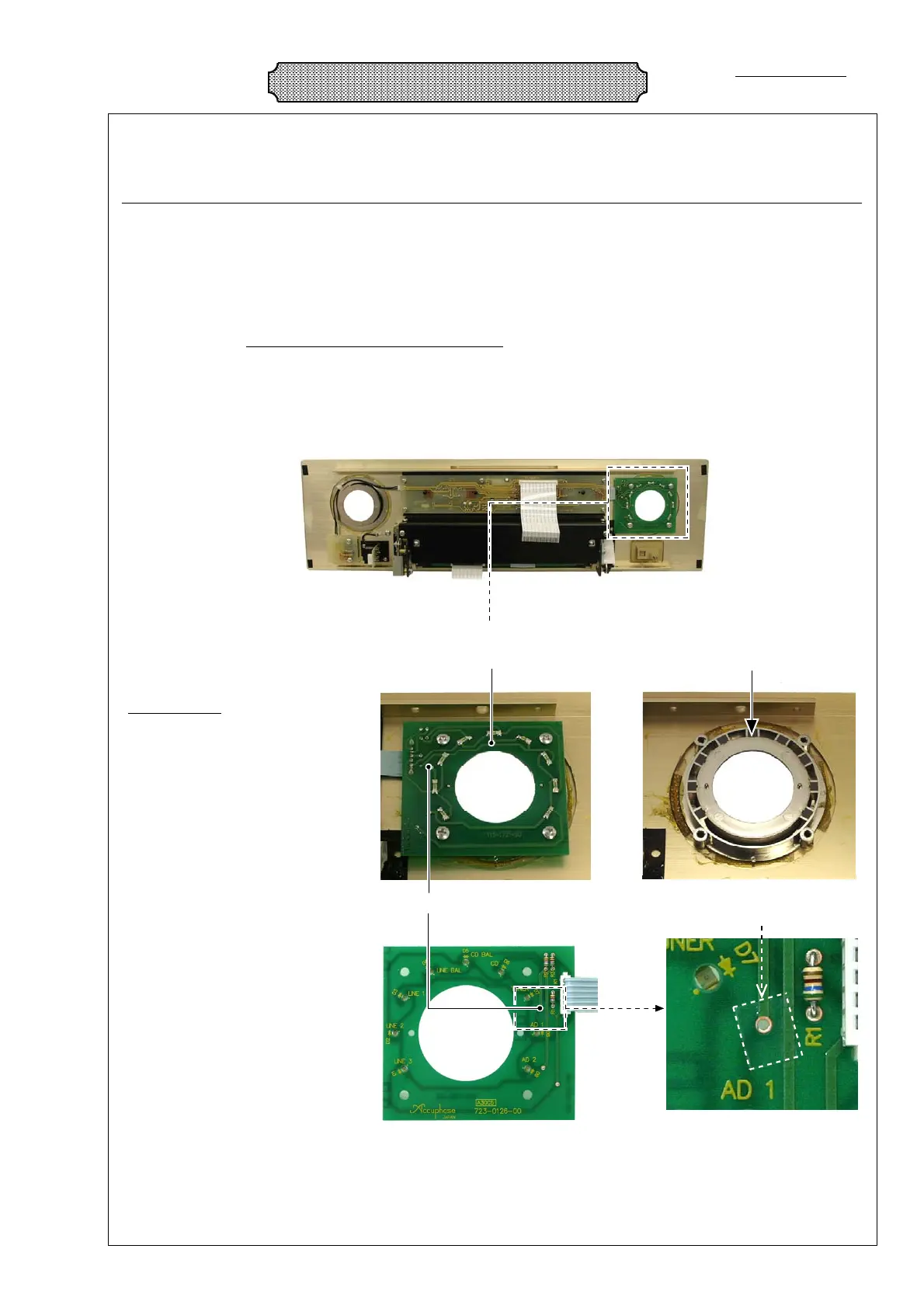

Back View of Front-Panel
(
ﾌﾛﾝﾄﾊﾟﾈﾙ背面図)
Details ; Since there is possibility of an electrical connection between Selector
LED Assembly and a panel base, it prevents that the LED display of an input
position does not light up.
詳 細 ; ｾﾚｸﾀLEDAss'yとﾊﾟﾈﾙ台座間で導通の可能性があり､これによる入力位置表示のLED
の点灯不良を防止する。
Preparation Parts /準備部品
Mylar tape length 5mm 1pce.
ﾏｲﾗｰﾃｰﾌﾟ 長さ 5mm
Service Information
Selctor LED Ass'y
ｾﾚｸﾀLED Ass'y (723-0126-00)
Through hole /ｽﾙｰﾎｰﾙ
Mylar Tape
ﾏｲﾗｰﾃｰﾌﾟ
An electrical connection
is in plating of a panel
base.
台座のﾒｯｷに導通あり
A mylar tape is stuck
asshownabove and it
insulates.
破線部にﾏｲﾗｰﾃｰﾌﾟを貼り
絶縁します。
The printing surface side
of Ass'y is insulated.
Ass'yの印刷面側を絶縁する。
Panel Ass'y is removed
from a unit body.
本体からﾊﾟﾈﾙAss'yを外し
ます｡
Selector LED Ass'y on
the panel back side is
removed.
ﾊﾟﾈﾙ裏側にあるｾﾚｸﾀLED
Ass'yを外します。
A mylar tape is stuck
on the through Hole
part by the side of the
printing surface of
Selector LED Ass'y, and
it insulates.
ｾﾚｸﾀ LED Ass'yの印刷面
側のｽﾙｰﾎｰﾙ部にﾏｲﾗｰﾃｰﾌﾟ
を貼り絶縁します。
①
②
③
①
②
③
Step / 順序
－２０－
