Accuphase C-2810 - Power Switch Assembly

－１３－
V
olume
A
ssembly (716-0751-00)
ﾎﾞﾘｭｰﾑ Ass'y

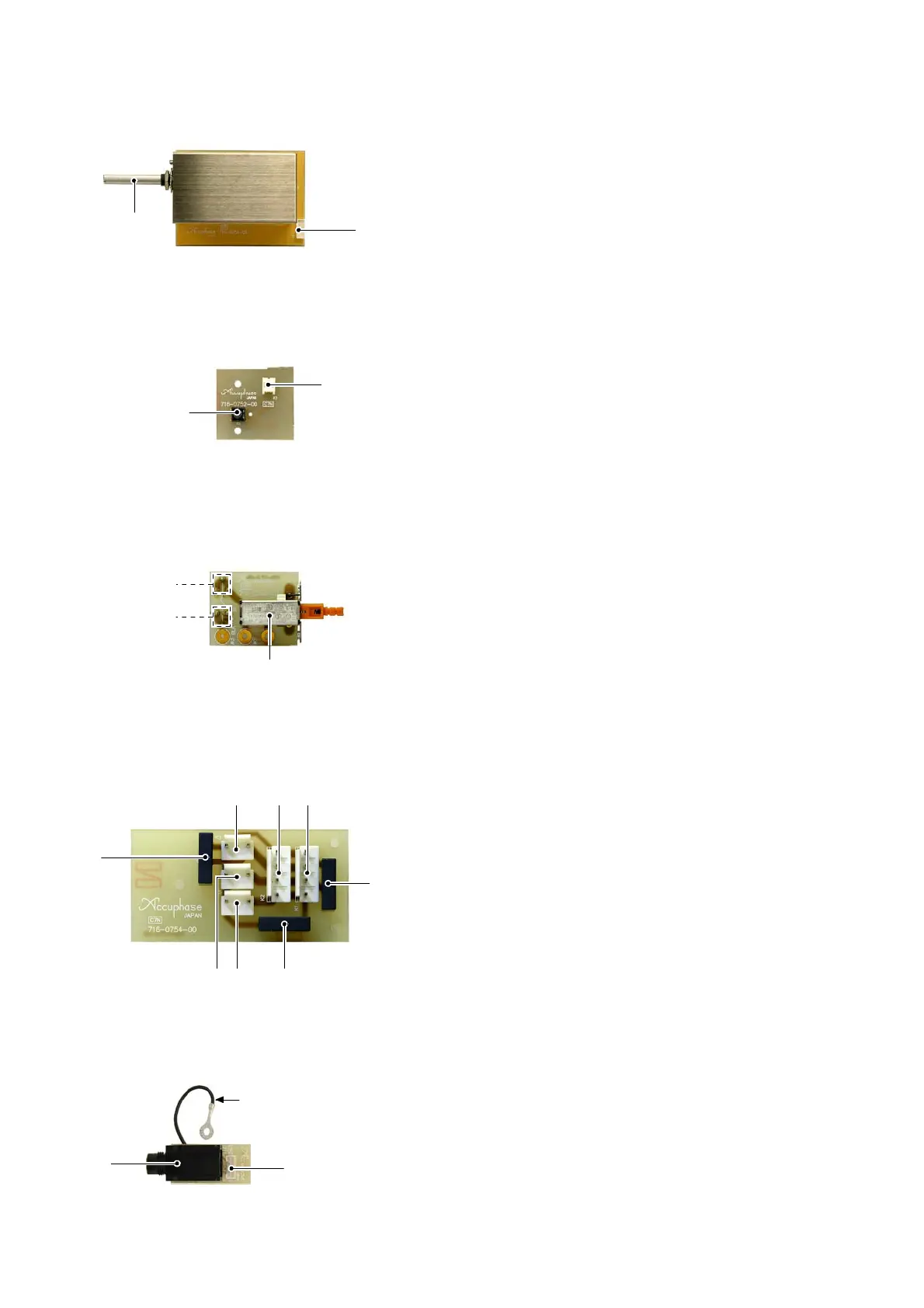

PC Board 115-1710-10
PCﾎﾞｰﾄﾞ
Shield Case/ｼｰﾙﾄﾞｹｰｽ 231-0058-04
Connector Plug K1 308-0508-00
ｺﾈｸﾀﾌﾟﾗｸﾞ
Variable Resistor VR1 575-2026-00
可変抵抗器
Attenuator Assembly (716-0752-00)
ｱｯﾃﾈｰﾀ Ass'y
Power Switch Assembly (716-0753-00)
ﾊﾟﾜｰｽｲｯﾁ Ass'y
Voltage Selector Assembly (716-0754-00)
ﾎﾞﾙﾃｰｼﾞｾﾚｸﾀ Ass'y
PC Board 115-1711-10
PCﾎﾞｰﾄﾞ
Connector Plug K1 308-0209-00
ｺﾈｸﾀﾌﾟﾗｸﾞ
Push Switch S1 354-1116-00
ﾌﾟｯｼｭｽｲｯﾁ
PC Board 115-1712-10
PCﾎﾞｰﾄﾞ
Fuse Holder FH1,2 306-2001-00
ﾋｭｰｽﾞﾎﾙﾀﾞ
Power Push Switch S1 354-1024-00
電源ｽｲｯﾁ
PC Board 115-1713-10
PCﾎﾞｰﾄﾞ
Connector Plug K1,2 308-0432-00
ｺﾈｸﾀﾌﾟﾗｸﾞ K3,4,5 308-0236-00
MPP Capacitor C1,2,3 CF99MF2E103MR46 0.01uF/400V
MPPｺﾝﾃﾞﾝｻ
K1
VR1
K1
S1
S1
FH1
FH2
K1
K2
K3
K4
K5
C3
C2
C1
Head Phone Assembly (716-0757-00)
ﾍｯﾄﾞﾎﾝ Ass'y
PC Board 115-1716-10
PC ﾎﾞｰﾄﾞ
Phone Jack JK1 302-1205-00
ﾌｫｰﾝｼﾞｬｯｸ
Connector Plug K1 308-0508-00
ｺﾈｸﾀﾌﾟﾗｸﾞ
K1
JK1
Connector Ass'y (309-5157-04)
ｺﾈｸﾀAss'y
