Accuphase E-212 User Manual

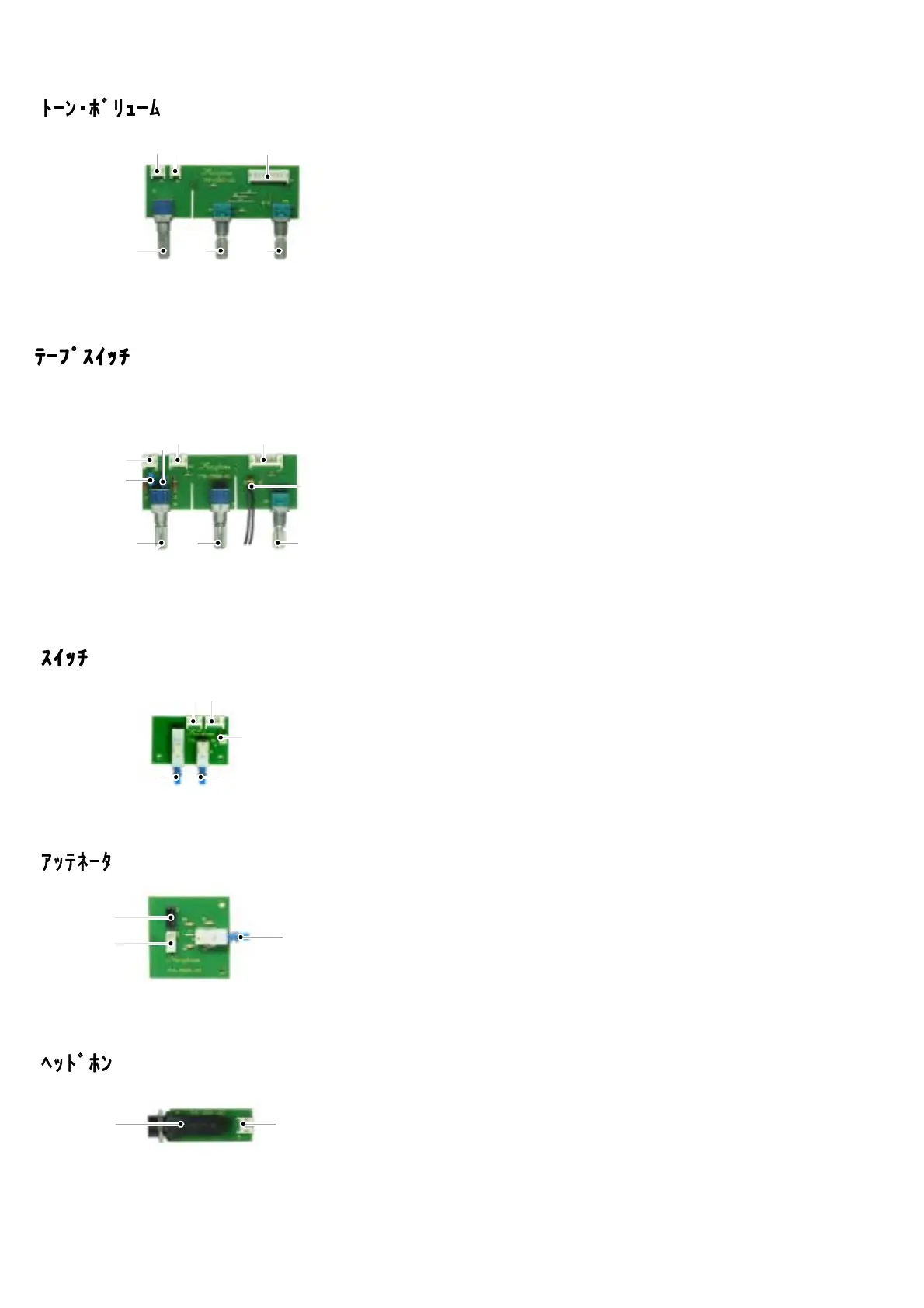

Tone Volume Assembly (716-0597-00)
Ass'y
Connector Plug K1 308-0809-00
ｺﾈｸﾀﾌﾟﾗｸﾞ K3 308-0412-00
K4 308-0311-00
Connector Jack K2 309-2235-00
ｺﾈｸﾀｼﾞｬｯｸAss'y
Rotary Switch 336-3010-10 S1
ﾛｰﾀﾘｽｲｯﾁ 336-2007-00 S2
Variable Resistor 575-2312-10 VR1
可変抵抗器
Polyester Film Capacitor C1,2 CF922N1H104JMTFF 0.1uF /50V
ﾎﾟﾘｴｽﾃﾙﾌｨﾙﾑｺﾝﾃﾞﾝｻ
Carbon Film Resistor R1､2 RD142EA332J 3.3kΩ 1/4W
炭素皮膜抵抗器
Connector Plug 308-1014-00 K1
ｺﾈｸﾀﾌﾟﾗｸﾞ 308-0209-00 K2
308-0311-00 K3
Rotary Switch 336-4010-10 S1
ﾛｰﾀﾘｽｲｯﾁ
Variable Resistor 575-2405-10 VR1,2:
可変抵抗器
－７－
VR1
K1K2K3
S1
Tape Switch Assembly (716-0598-00)
Ass'y
K1
C1
VR2
C2
VR1S1S2
K3
K4
K2
Switch Assembly (716-0599-00)
Ass'y
Connector Plug K1 308-0206-00
ｺﾈｸﾀﾌﾟﾗｸﾞ K2 308-0514-00
K3 308-0412-00
Push Switch S1 354-1412-00
ﾌﾟｯｼｭｽｲｯﾁ S2 354-1218-00
K1
K2K3
S2
S1
Attenuator Assembly (716-0600-00)
Ass'y
Connector Plug 308-0417-00 K1
ｺﾈｸﾀﾌﾟﾗｸﾞ 308-0407-00 K2
Push Switch 354-1218-00 S1
ﾌﾟｯｼｭｽｲｯﾁ
Carbon Film Resistor RD142CA513J R1,2 ;51kΩ 1/6W
炭素被膜抵抗器 RD142CA752J R3,4 ;7.5kΩ 1/6W
S1
K2
K1
Head Phone Assembly (716-0601-00)
Ass'y
Head Phone Jack 302-1204-00 JK1
ﾍｯﾄﾞﾎﾝｼﾞｬｯｸ
Connector Plug 308-0311-00 K1
ｺﾈｸﾀﾌﾟﾗｸﾞ
K1
JK1
