Installation & Operation Manual - Model AVC5000
Contents of this Manual are Subject to Change Without Notification Page 22

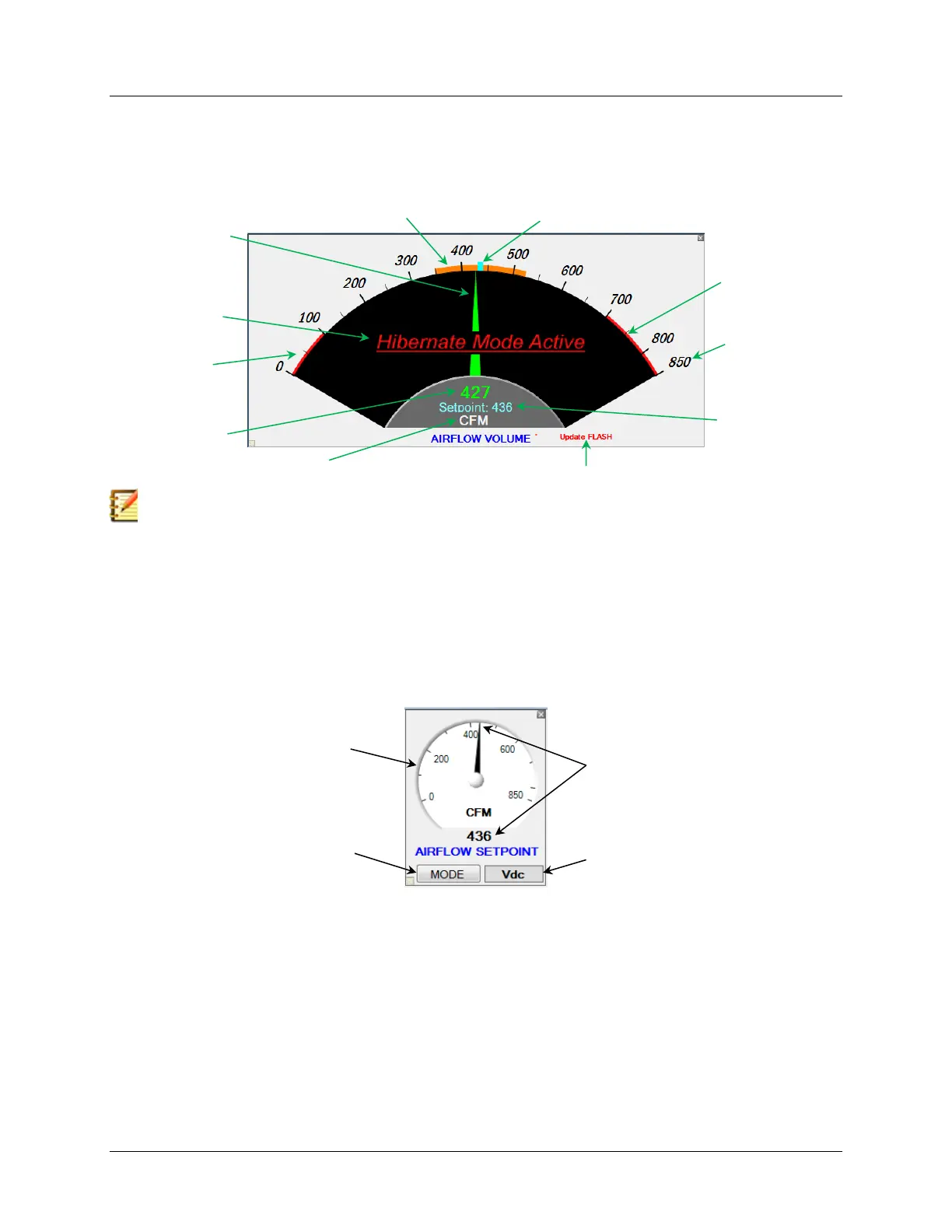

6.6.2 Airflow Volume Gauge
The Airflow Volume Gauge provides the most critical real-time operating parameters of the
AVC. The Airflow Volume Gauge is an “information only” object; therefore, no field
programming can be accessed through the Airflow Volume Gauge.
Notes
1. The colors used for the Alarm Band Indicators are user-definable by right-clicking
anywhere on the Airflow Volume Gauge.
2. When the Alarms are not active, the Alarm Band Indicator will appear on the gauge;
however the color will be Gray.
6.6.3 Airflow Setpoint Gauge
The Airflow Setpoint Gauge displays the Airflow Setpoint Value, the Airflow Setpoint Range and
the Airflow Setpoint Operating Mode. Access to the Mode Configuration Menu is provided by
selecting the “MODE” button.
Airflow Volume Units
Select “MODE” to Open
Configuration Window
Airflow Setpoint Range
Indicated by Gauge Face Values
Airflow Setpoint Value Indicators
Present Setpoint Mode
Airflow Setpoint Deviation Alarm Band
High Alarm
Band
Hibernate Mode
Status Active
Band
Airflow
Measurement
Indicator
(Analog Scale)
Airflow Setpoint
(Digital Scale)
Maximum
Operating
Range of
Valve
Save Changes to Nonvolatile Memory
Airflow
Measurement
Indicator
(Digital Scale)
Airflow Setpoint Indicator
Low Alarm
Band
