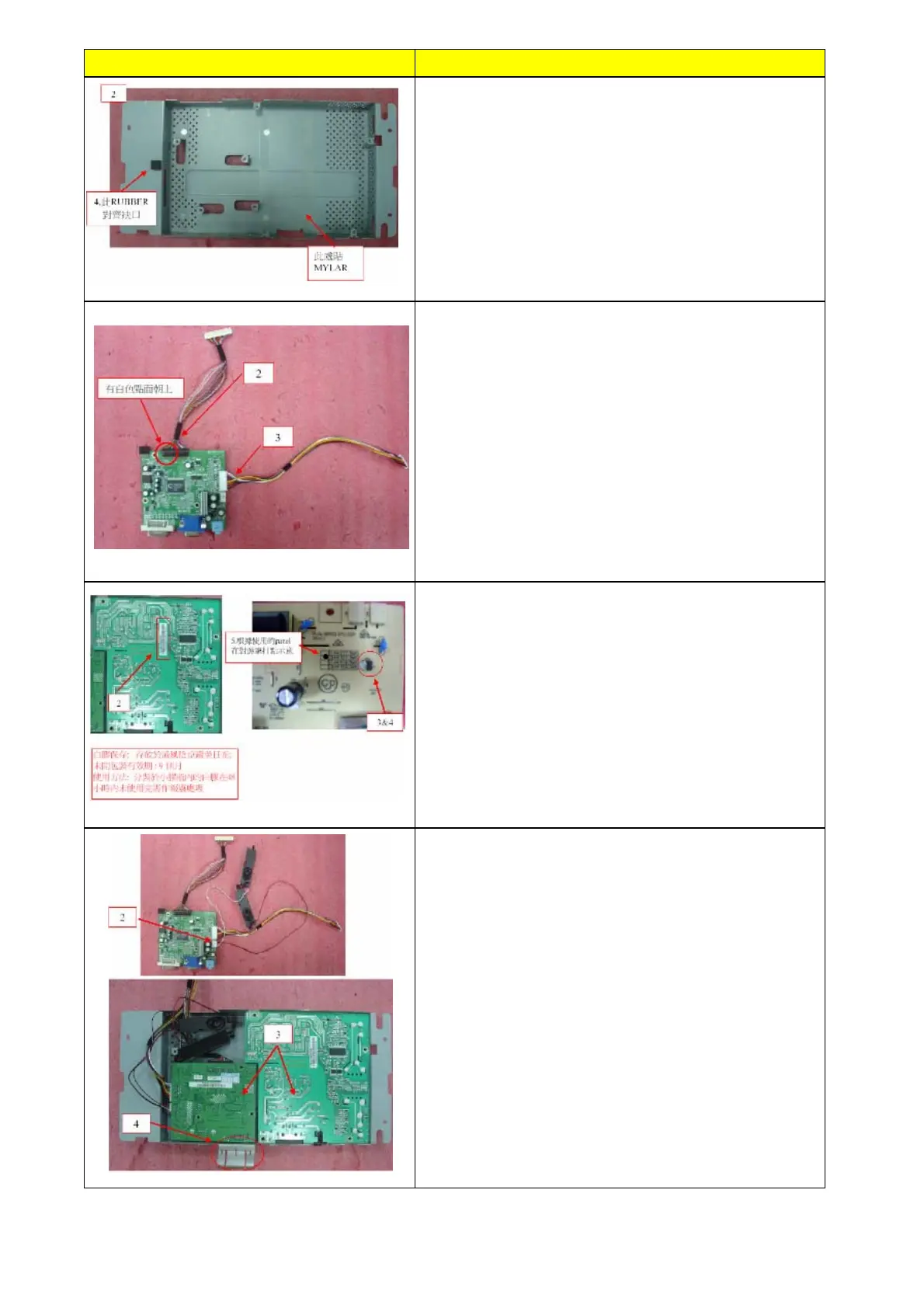

Assembly process
Picture Description
1.[GET SPONGE CUSHION AND PUT IT
IN THE MIDDLE OF CONVEYER]
2.[GET PCB SHIELD AND PUT IT IN THE
MIDDLE OF CONVEYER]
1.[GET M/B AND LCD CABLE,THEN INSERT
LCD CABLE IN M/B CONNECTOR]
2.[GET BUTTON CABLE,THEN INSERT IT IN
M/B CONNECTOR]
3.[ PUT M/B IN THE CONVEYER]
1.[GET POWER/B AND INSERT JUMPER IN
THE APPOINTED PLACE OF JP10 AT
POWER/B]
2.[GET AGGLUTINANT TO CONNECT THE
JUMPER AND POWER/B]
3.[MARK DOT IN THE PANE MARK OF
POWER/B AS PICTURE SHOWS]
4.[IF THE POWER/B IS OK THEN PUT IT
ON THE CONVEYER ]
1.[INSERT SPEAKER CABLE IN M/B
CONNECTOR]
2.[GET M/B AND ASSEMBLE IT AND
POWER/B,THEN ASSEMBLE THEM
IN PCB SHIELD]
