Service and Maintenance 5-76
LCD Bezel Installation
1. Align the LCD panel hinges to the LCD bezel.

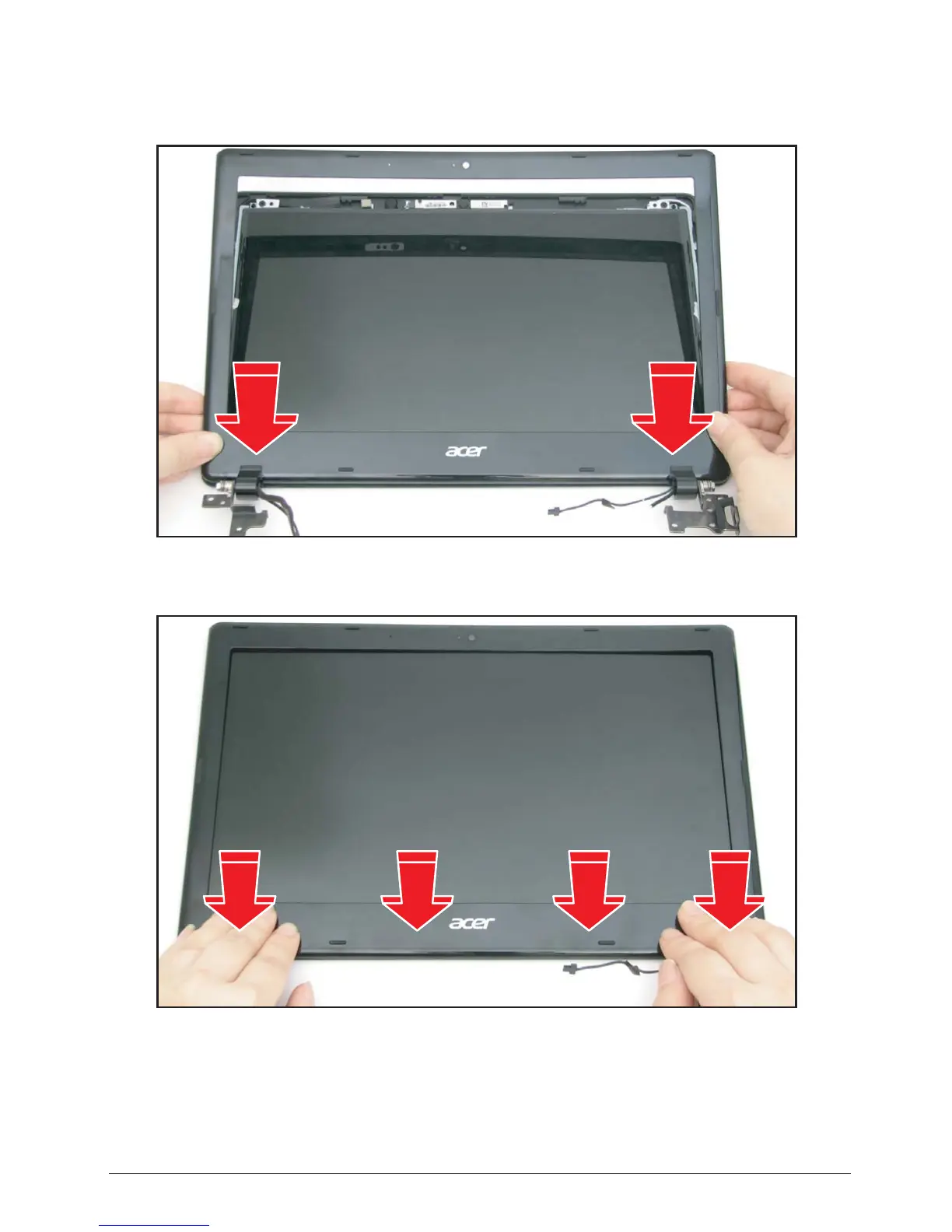

Figure 5:105. Installing the LCD Bezel (1 of 3)
2. Secure the bottom side latches of the LCD bezel.
Figure 5:106. Installing the LCD Bezel (2 of 3)
