Service and Maintenance 5-86
CCD Module Removal
Prerequisite:
LCD Bezel Removal on page 5-74
1. Lift to remove the camera module.

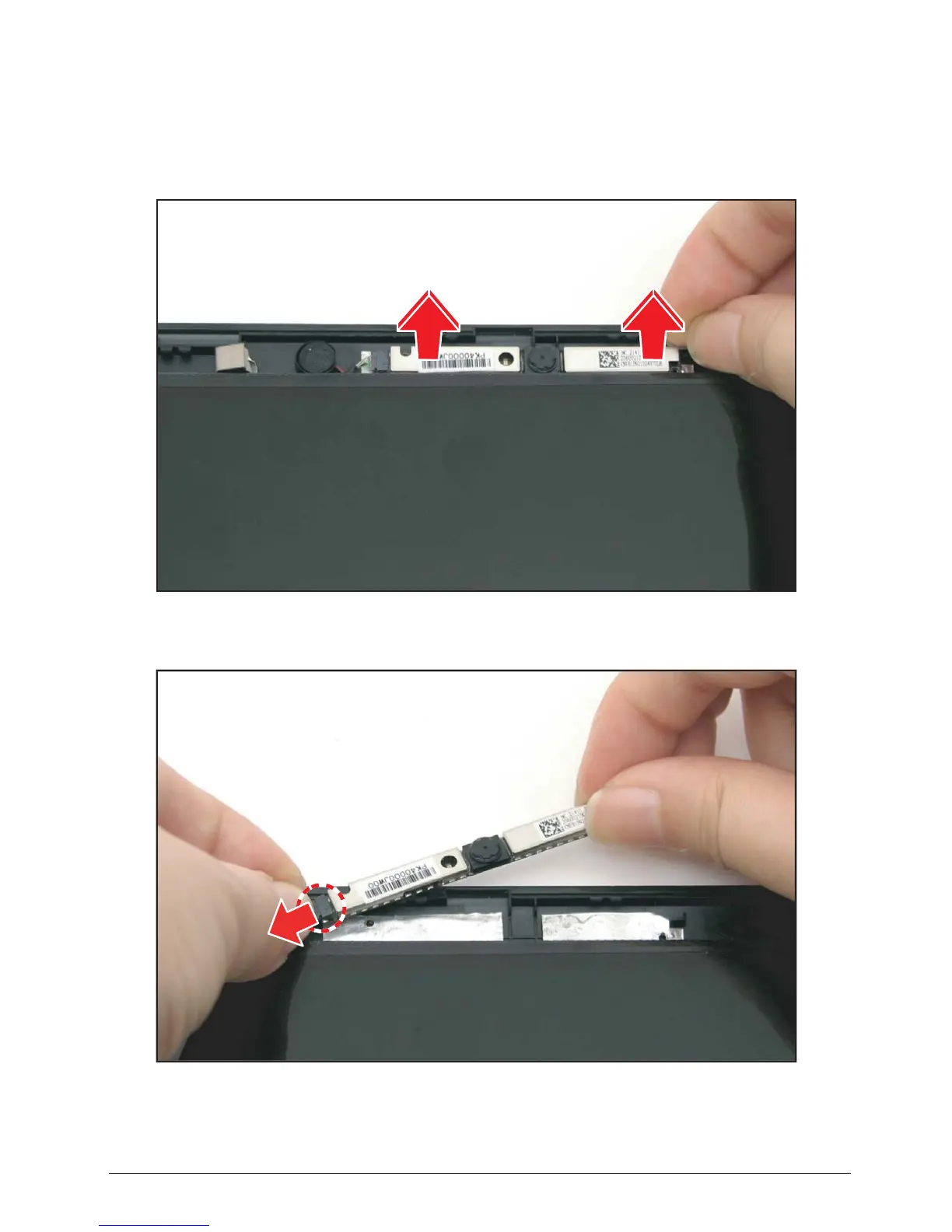

Figure 5:124. Removing the Camera Module (1 of 2)
2. Disconnect the camera cable connector.
Figure 5:125. Removing the Camera Module (2 of 2)
