128 Chapter 3

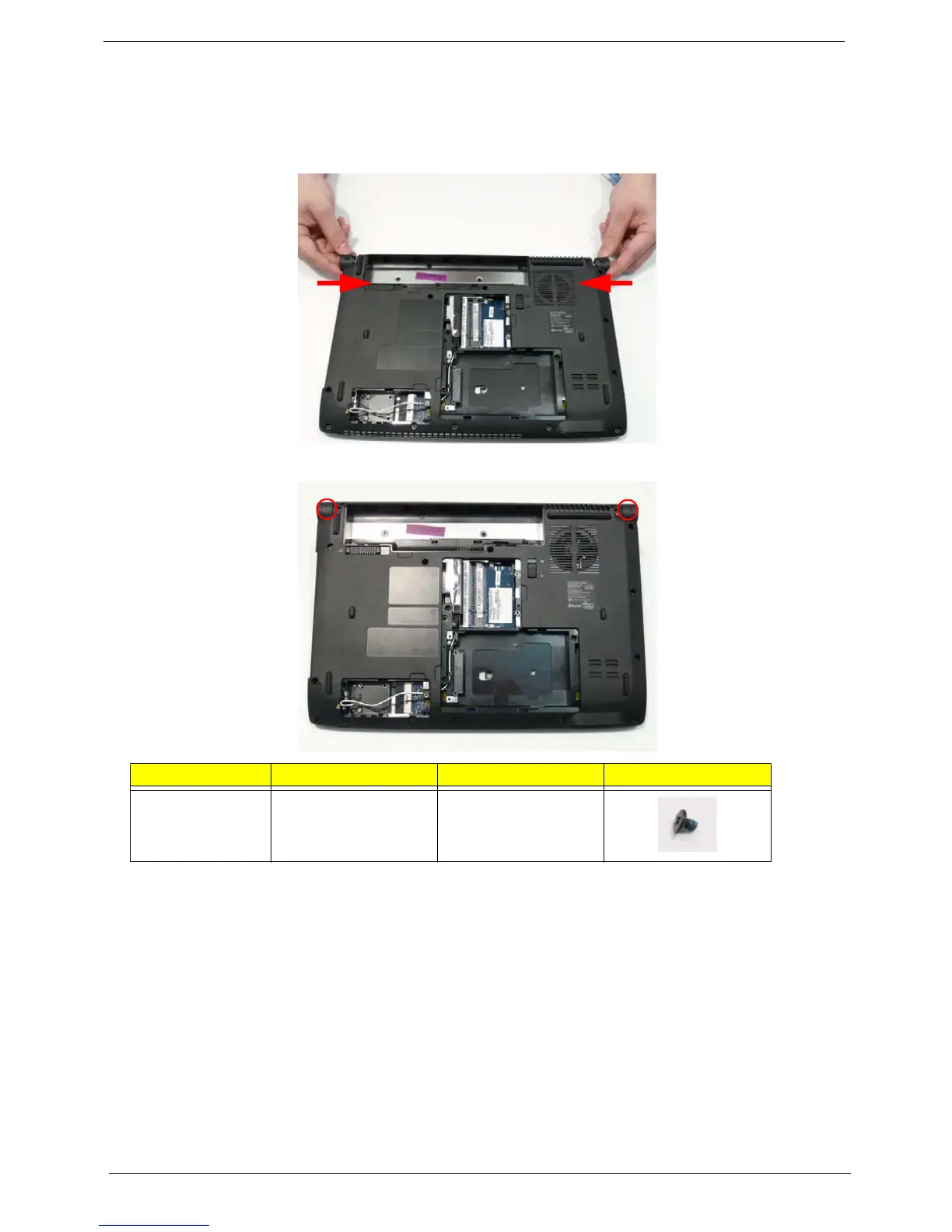

Replacing the Hinge Covers
IMPORTANT: The left and right Hinge Covers are shaped differently and marked L and R on the inside. Ensure
that the correct cover is used during reassembly.
1. Align the Hinge Covers screw hole side up and slide them on to the hinge assemblies.
2. Replace the two securing screws and caps.
Step Size Quantity Screw Type
Hinge Covers M2*3 2
