Removing the Camera Module
1. See “Removing the LCD Bezel” on page 87.

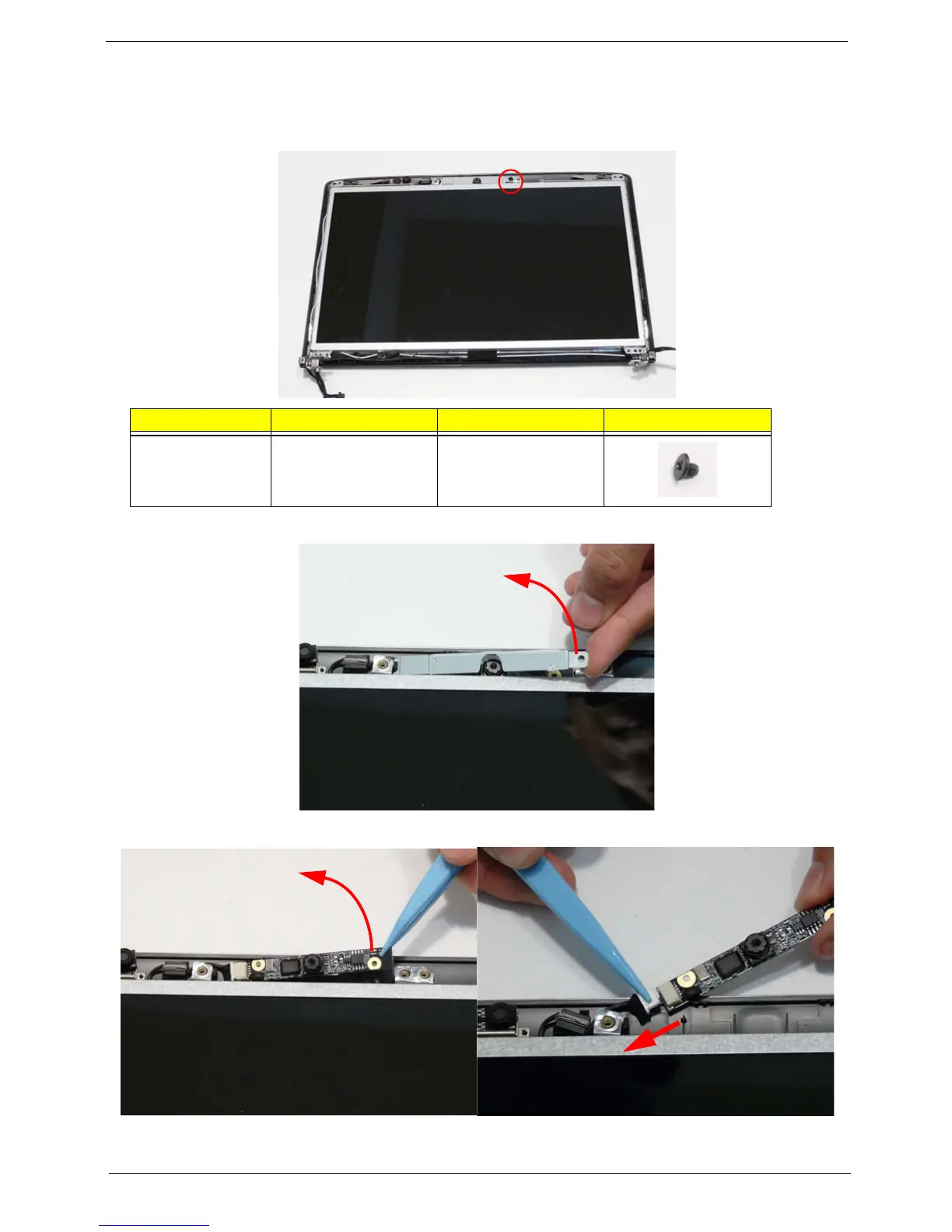

2. Remove the single screw from the Camera Bracket as shown.
3. Lift the Camera Bracket, right side first, clear of the casing.
4. Lift the Camera Module clear of the casing and disconnect the cable from the Module.
5. Remove the Camera Module.
Step Size Quantity Screw Type
Camera Module M2.5*3 1
