Removing the LCD Bezel
1. See “Removing the LCD Module” on page 63.

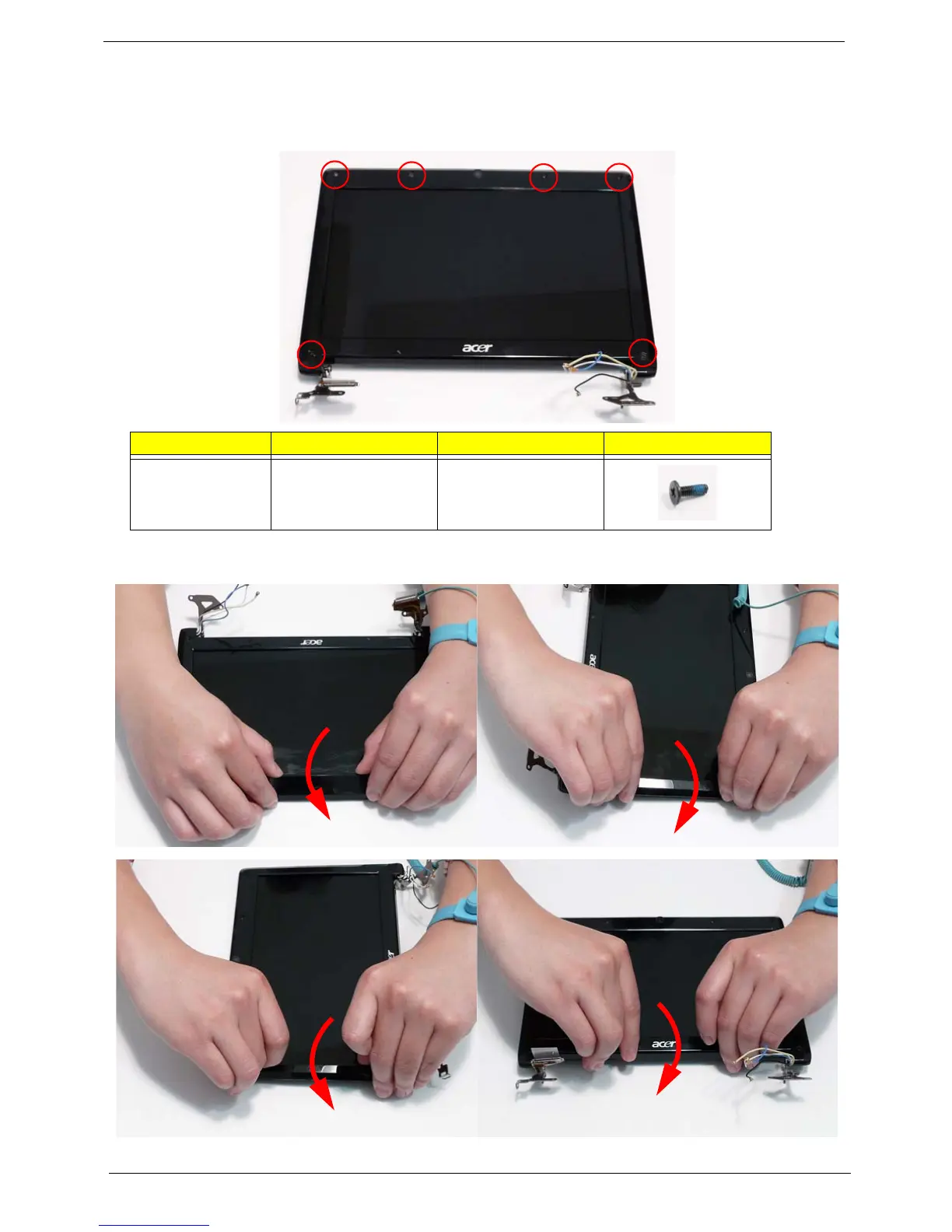

2. Remove the six screw caps and screws from the LCD Bezel.
3. Starting from the inside top edge, pry the bezel away from the panel. Continue moving down the sides until the
bezel is removed. If necessary, use a plastic pry to release the corners of the bezel.
Step Size Quantity Screw Type
LCD Bezel M2*5 6
