4 Aspire Z3760 / Z3761 / Z5760 / Z5761 AIO Computer Service Guide

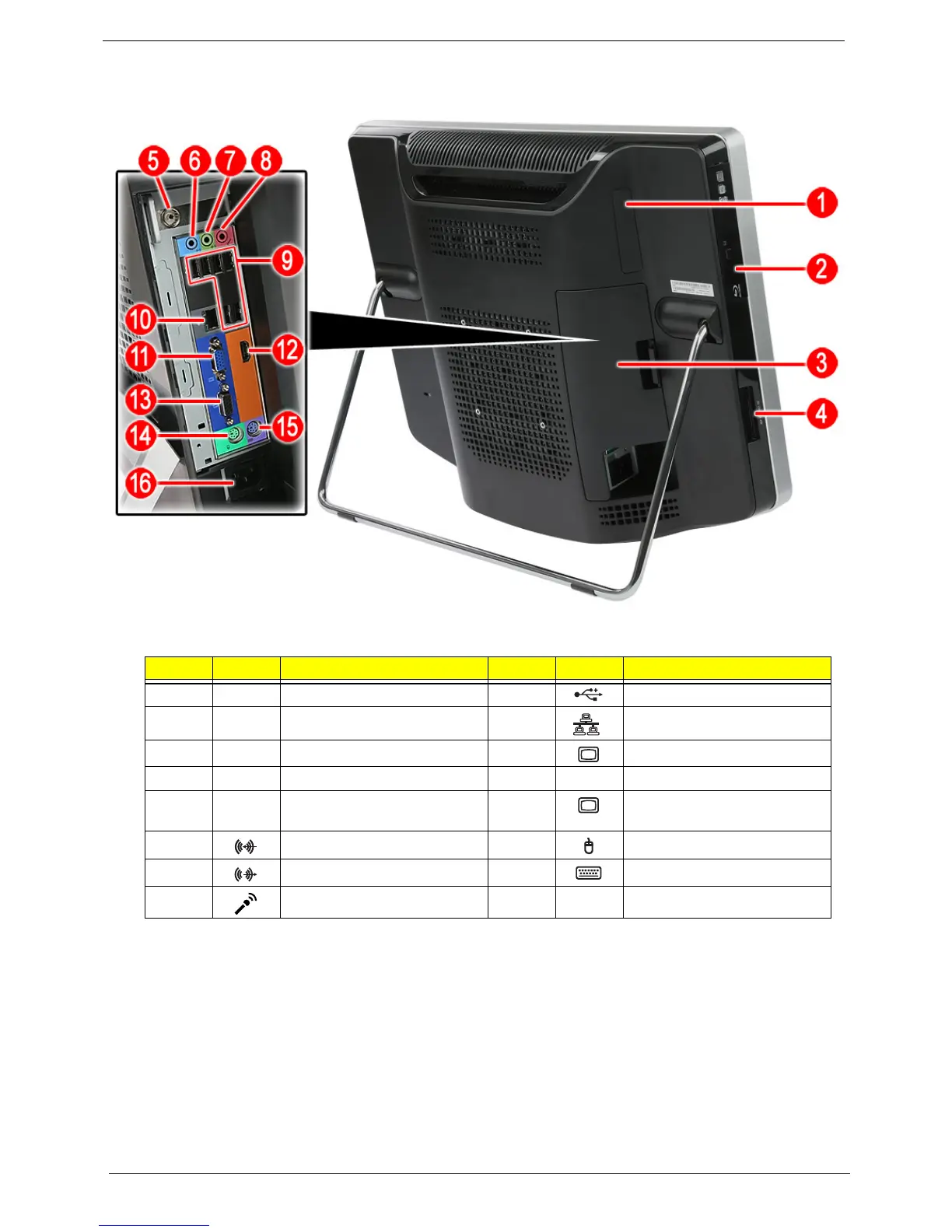

Left View
Item Icon Component Item Icon Component
1 B-CAS card (optional) cover 9 USB ports
2 Optical disc drive (ODD) 10 Ethernet port (RJ-45)
3 I/O cable cover 11 Monitor port (VGA)
4 9-in-1 card reader 12 HDMI port
5 HD dual digital TV tuner
(optional)
13 DVI port (optional)
6 Line-in jack 14 PS/2 mouse port
7 Line-out jack 15 PS/2 keyboard port
8 Microphone jack 16 AC power jack
