Acer P1173 - Projector Overview; Projector Outlook

3
English

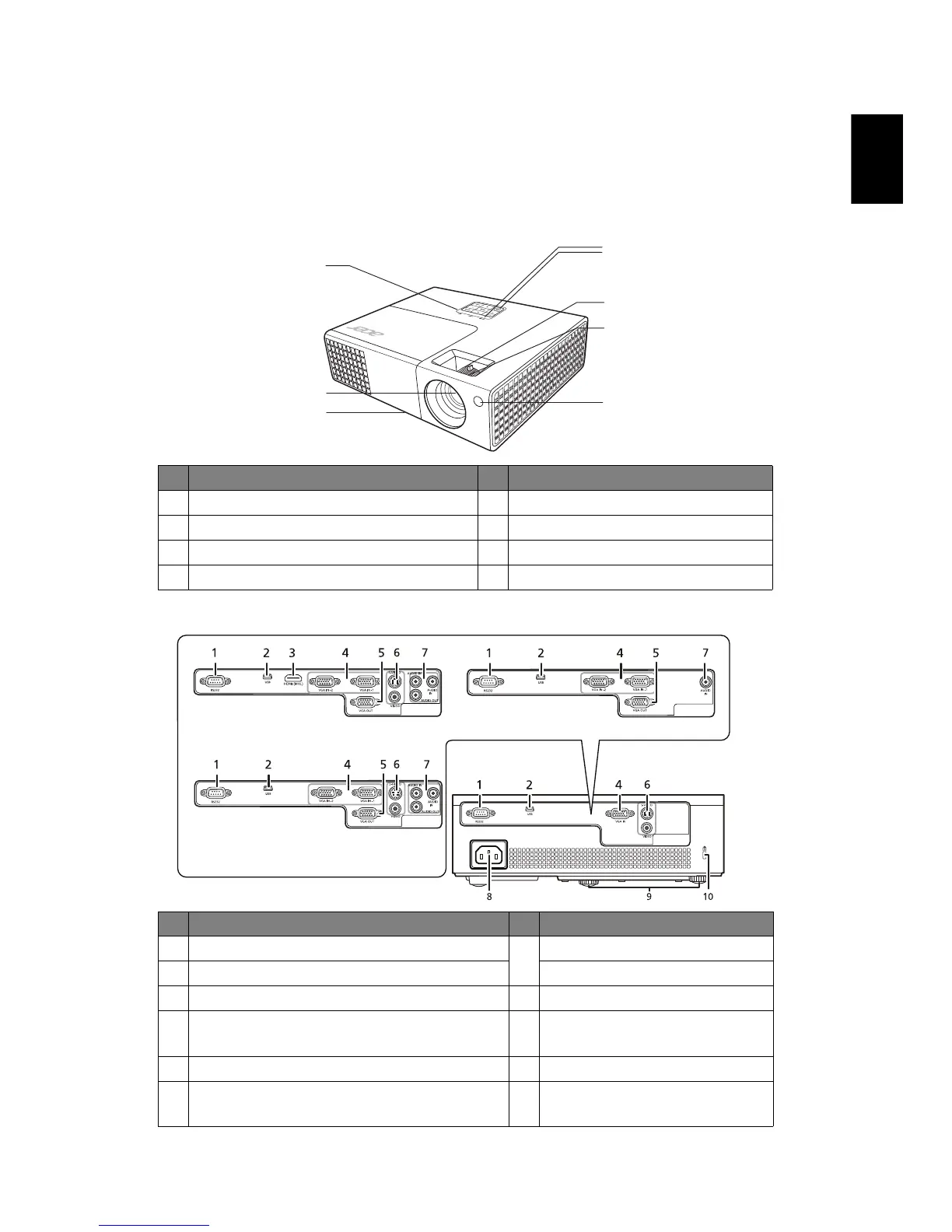

Projector Overview
Projector Outlook
Front/upper side
Rear side
# Description # Description
1 Control panel 5 Zoom ring
2 Projection lens 6 Focus ring
3 Tilt adjusting wheel 7 Remote control receiver
4 Power key and Power indicator LED
# Description # Description
1 RS232 connector 7 Audio input connector
2 Mini USB connector Audio output connector
3 HDMI (MHL) connector 8 Power socket
4 Analog RGB signal/HDTV/component
video input connector
9 Tilt adjusting wheel
5 Monitor loop-through output connector 10 Kensington™ lock port
6 S-Video input connector
Composite video input connector
1
5
6
4
3
2
7
-1
-2
-1
-2
(P1173/X1173H/
X1273H/X1373WH)
(X1173A/X1273/
X1373W)
(X1173N/X1273N)
(X1171/X1173)
