Acer P1173 - Getting Started; Connecting the Projector

8
English
Getting Started

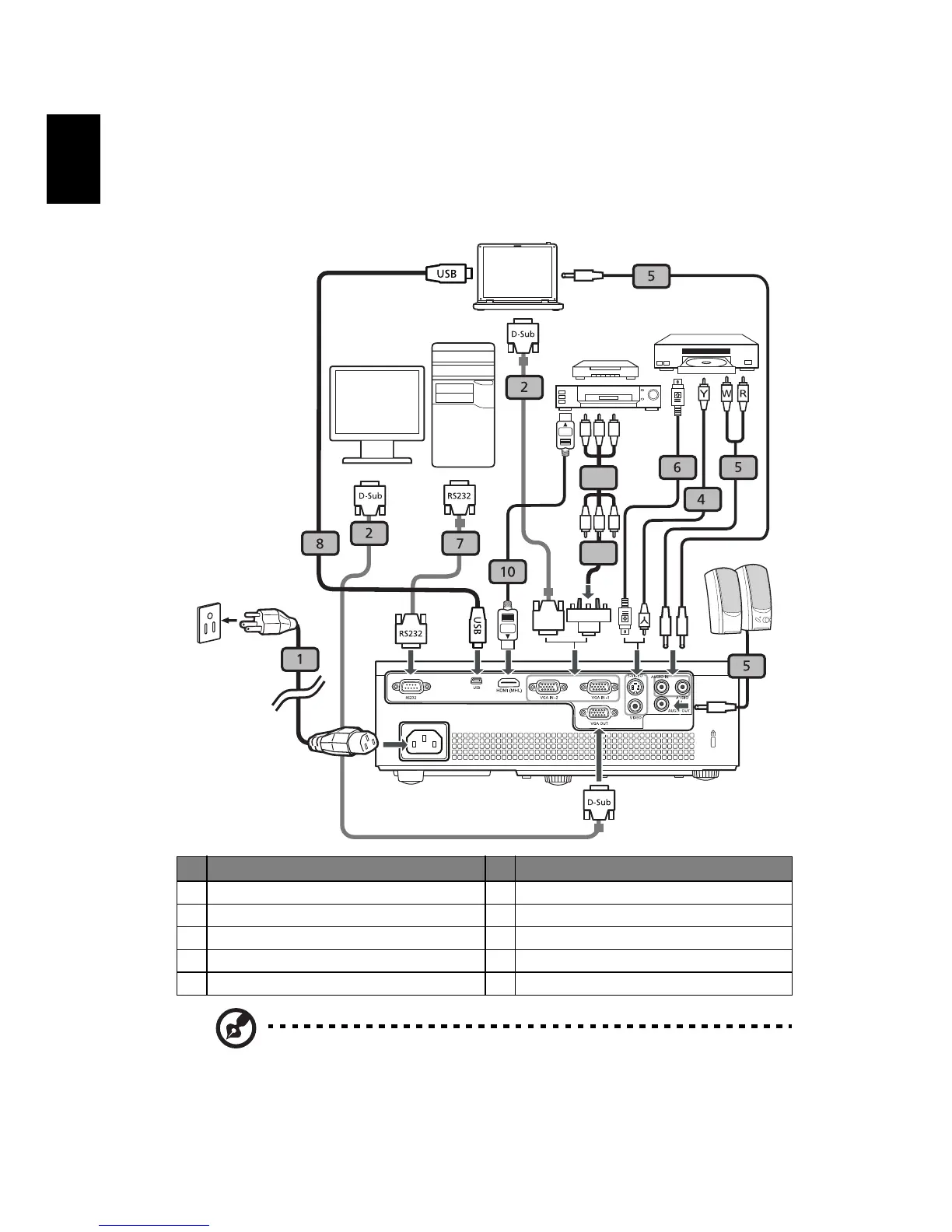

Connecting the Projector
Note: To ensure the projector works well with your computer,
please make sure the timing of the display mode is compatible
with the projector.
Note: Some smartphones require a converter (supplied by the
smartphone maker) to enable the MHL function.
# Description # Description
1 Power cord 6 S-Video cable
2 VGA cable 7 RS232 cable
3 VGA to component video/HDTV adapter 8 USB cable
4 Composite video cable 9 3 RCA component cable
5 Audio cable 10 HDMI (MHL) cable
-1
-2
RB G
RB G
HDTV adapter
D-Sub
9
3
DVD player,
Set-top box,
HDTV receiver
VGA
RS232
Video/S-Video
Output
Display
Speakers
