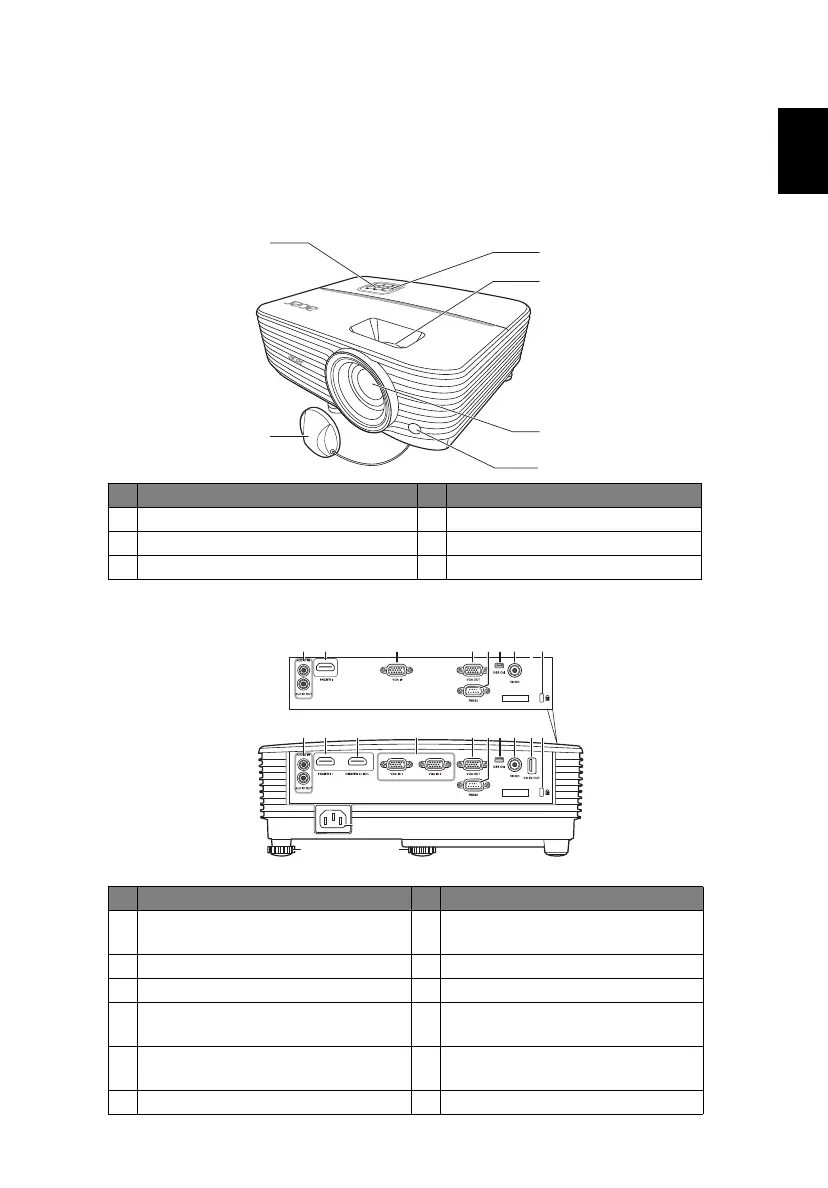

Projector Overview
Projector Outlook
Front/upper side
Rear side
# Description # Description
1 Control panel 4 Zoom ring and Focus ring
2 Lens cap 5 Projection lens
3 Power key and Power indicator LED 6 Remote control receiver
# Description # Description
1 Audio input connector
Audio output connector
7 Mini USB connector
2 HDMI connector 8 Composite video input connector
3 HDMI (MHL) connector 9 USB A connector (DC 5V output)
4 Analog RGB signal/HDTV/
component video input connector
10 Kensington™ lock port
5 Monitor loop-through output
connector (from VGA IN 1 only)
11 Power socket
6 RS232 connector 12 Tilt adjusting wheel
1
2
4
5
3
6
1 24567 8 9103
12
11
12
1 24 567 8 10
