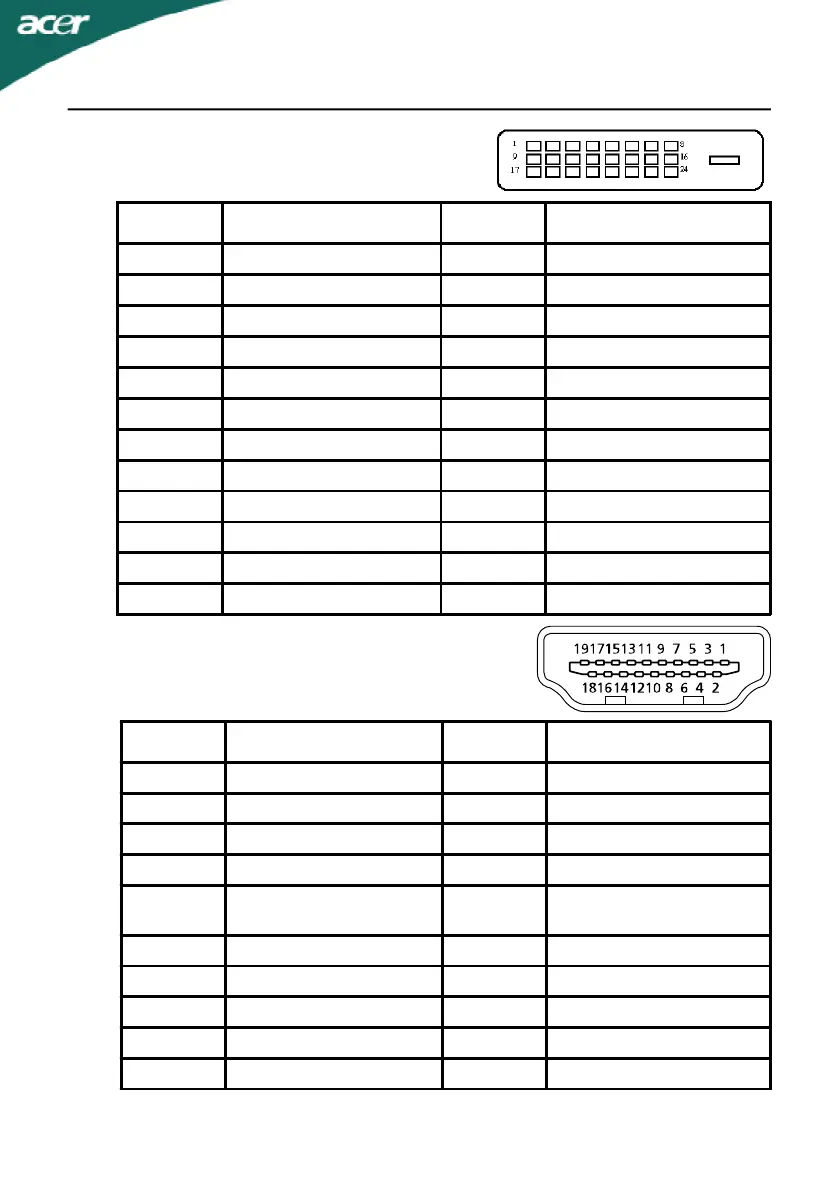

24-Pin Color Display Signal Cable*
PINMeaningPINMeaning
1.TMDS Data2-13.NC
2.TMDS Data2+14.+5V Power
3.TMDS Data 2/4 Shield15.Logic Ground
4.NC16.Hot Plug Detect
5.NC17.TMDS Data0-
6.DDC Clock18.TMDS Data0+
7.DDC Data19.TMDS Data 0/5 Shield
8.NC20.NC
9.TMDS Data1-21.NC
10.TMDS Data1+22.TMDS Clock Shield
11.TMDS Data 1/3 Shield23.TMDS Clock+
12.NC24.DDC TMDS Clock-
19-Pin color display signal cable*
PINMeaningPINMeaning
1.TMDS Data2+10.TMDS Clock+
2.TMDS Data2 Shield11.TMDS Clock Shield
3.TMDS Data2–12.TMDS Clock–
4.TMDS Data1+13.CEC
5.TMDS Data1 Shield14.
Reserved (N.C. on
device)
6.TMDS Data1–15.SCL
7.TMDS Data0+16.SDA
8.TMDS Data0 Shield17.DDC/CEC Ground
9.TMDS Data0–18.+5V Power
19.Hot Plug Detect
* only for certain models
