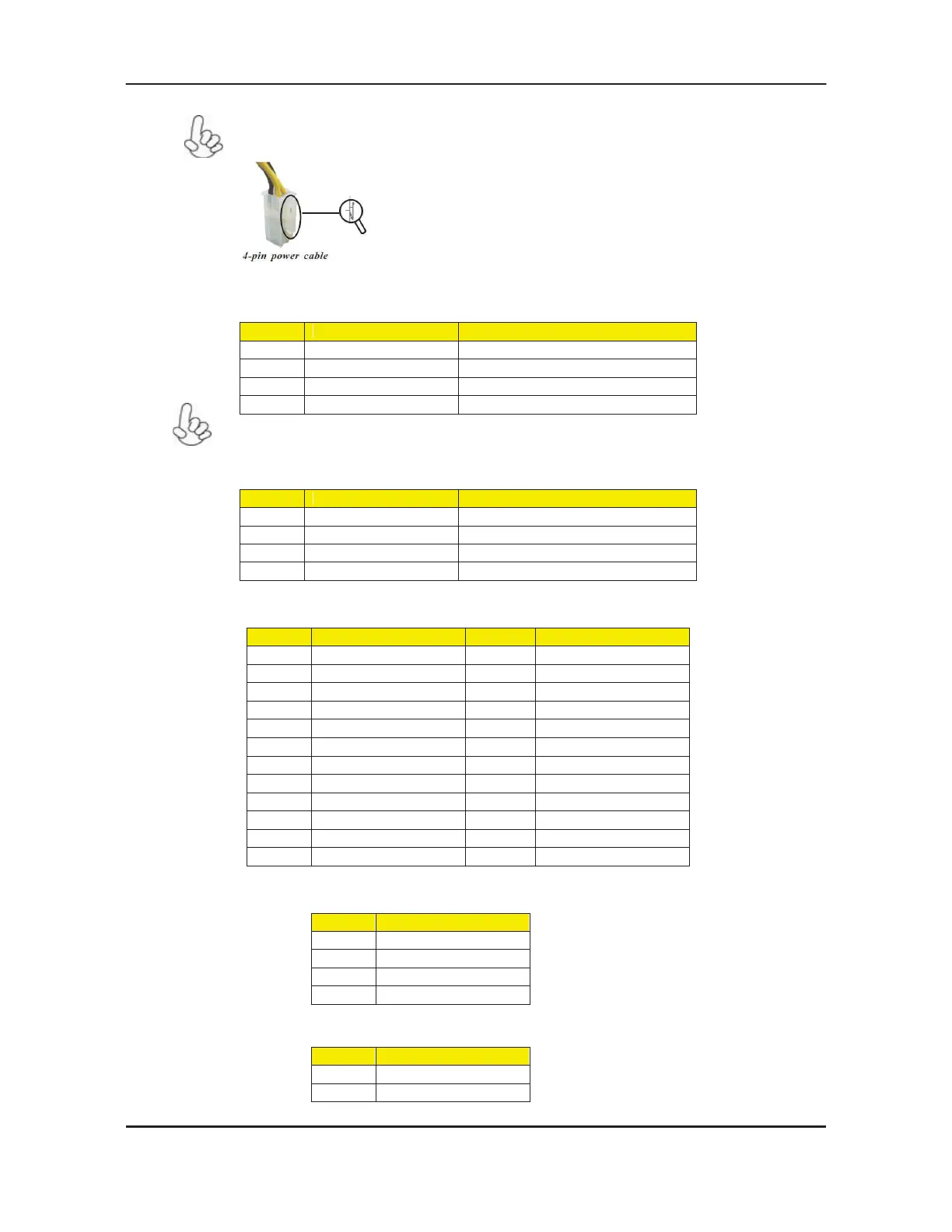

Connecting 4-pin power cable
The ATX_12V power connector is used to provide power to the CPU.
When installing 4-pin power cable, the
latches of power cable and the ATX_12V
match perfectly.
CPU_FAN: CPU cooling FAN Connectors
Pin
Signal Name
Function
1
GND
System Ground
2
+12V
Power +12V
3
Sense
Sensor
4
CONTROL
CONTROL
Users please note that the fan connector supports the CPU cooling fan of 1.1A ~ 2.2A (26.4W max) at +12V.
SYS_FAN: System Cooling FAN Connector
Pin
Signal Name
Function
1
GND
System Ground
2
+12V
Power +12V
3
Sense
Sensor
4
CONTROL
CONTROL
ATX_POWER: ATX 24-pin Power Connector
Pin
Signal Name
Pin
Signal Name
1
+3.3V
13
+3.3V
2
+3.3V
14
-12V
3
GND
15
GND
4
+5V
16
PS_ON
5
GND
17
GND
6
+5V
18
GND
7
GND
19
GND
8
PWROK
20
-5V
9
+5VSB
21
+5V
10
+12V
22
+5V
11
+12V
23
+5V
12
+3.3V
24
GND
ATX_12V: ATX 12V Power Connector
Pin
Signal Name
1
Ground
2
Ground
3
+12V
4
+12V
W_HEADER: Wireless Charger Header
Pin
Signal Name
1
VCC
2
GND
