Connecting Optional Devices
Refer to the following for information on connecting the motherboard’s optional devices:

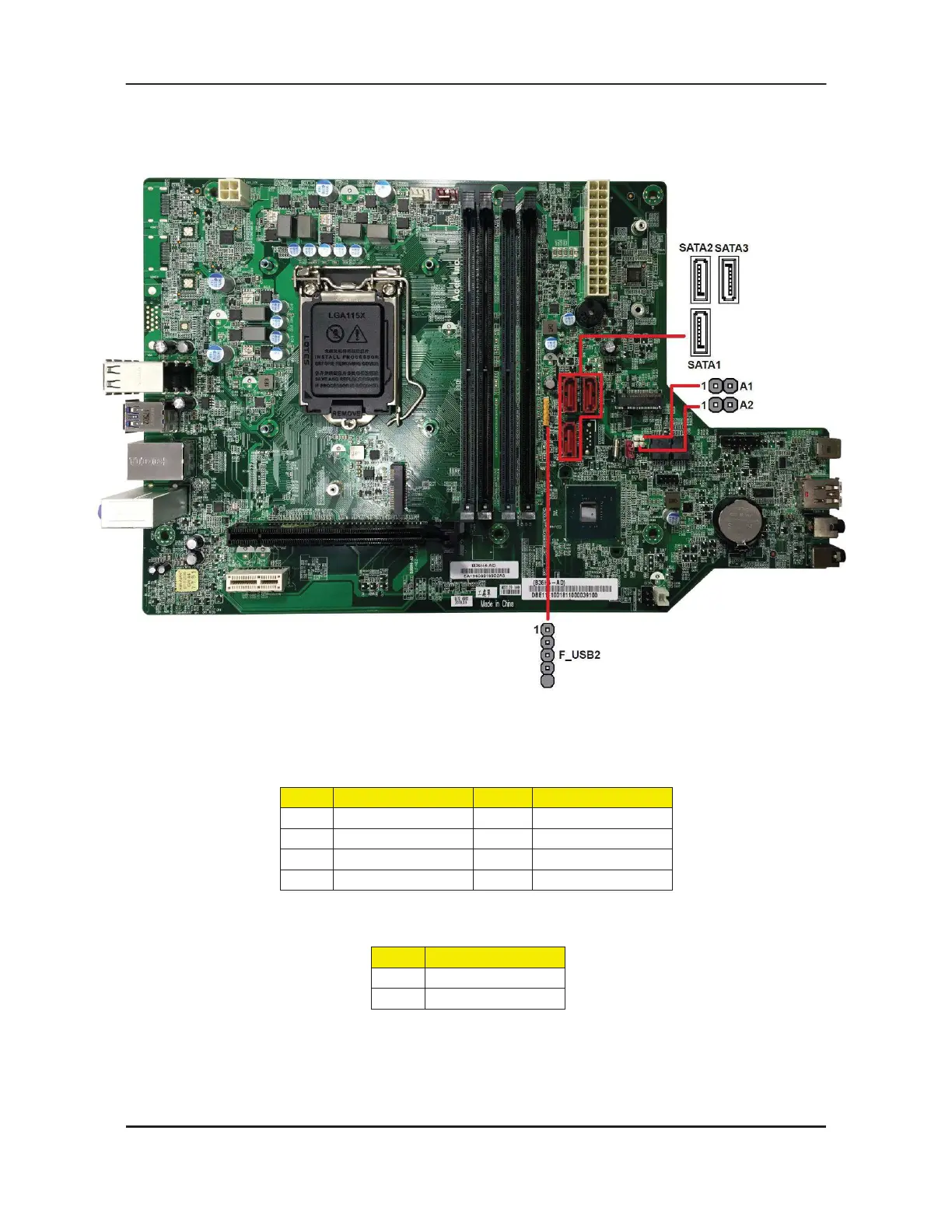

SATA 1~3: Serial ATA connectors
SATA1~3 connectors are used to support the Serial ATA 6Gb/s devices, simpler disk drive cabling and easier
PC assembly.
Pin
Signal Name
Pin
Signal Name
1
Ground
2
TX+
3
TX-
4
Ground
5
RX-
6
RX+
7
Ground
-
-
A1~2: 2-pin GPIO Headers
Pin
Signal Name
1
GPIO
2
GND
