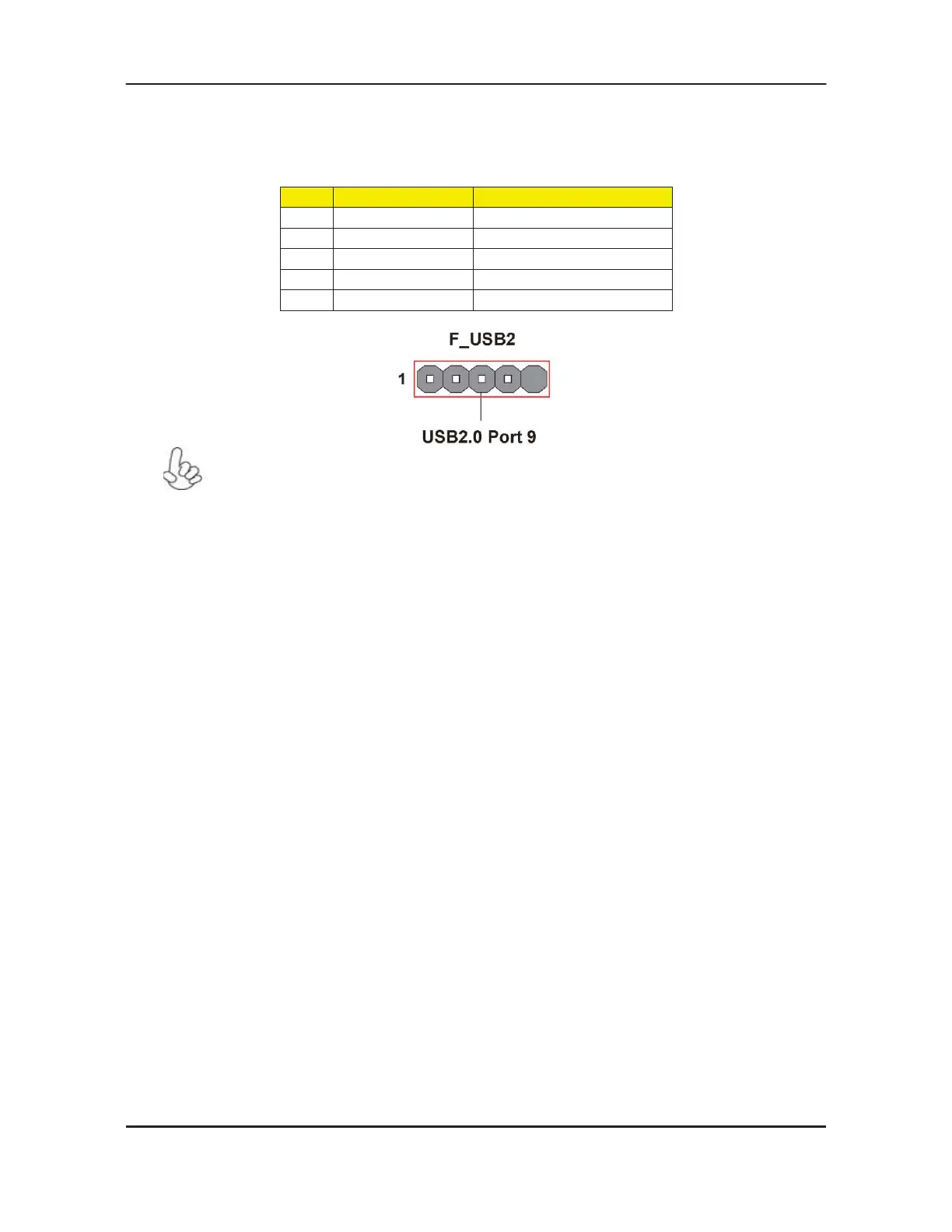

F_USB2: Front Panel USB 2.0 Header
The onboard F_USB2 header delegate for card reader, it supports add optional one USB 2.0 port.
Pin
Signal Name
Function
1
USBPWR
Front Panel USB Power
2
DATA9-
USB Port9 Negative Signal
3
DATA9+
USB Port9 Positive Signal
4
GND
Ground
5
NC
No connected
Please make sure that the USB cable has the same pin assignment as indicated
above. A different pin assignment may cause damage or system hang-up.
