Connecting Case Components
After you have installed the motherboard into a case, you can begin connecting the motherboard components.

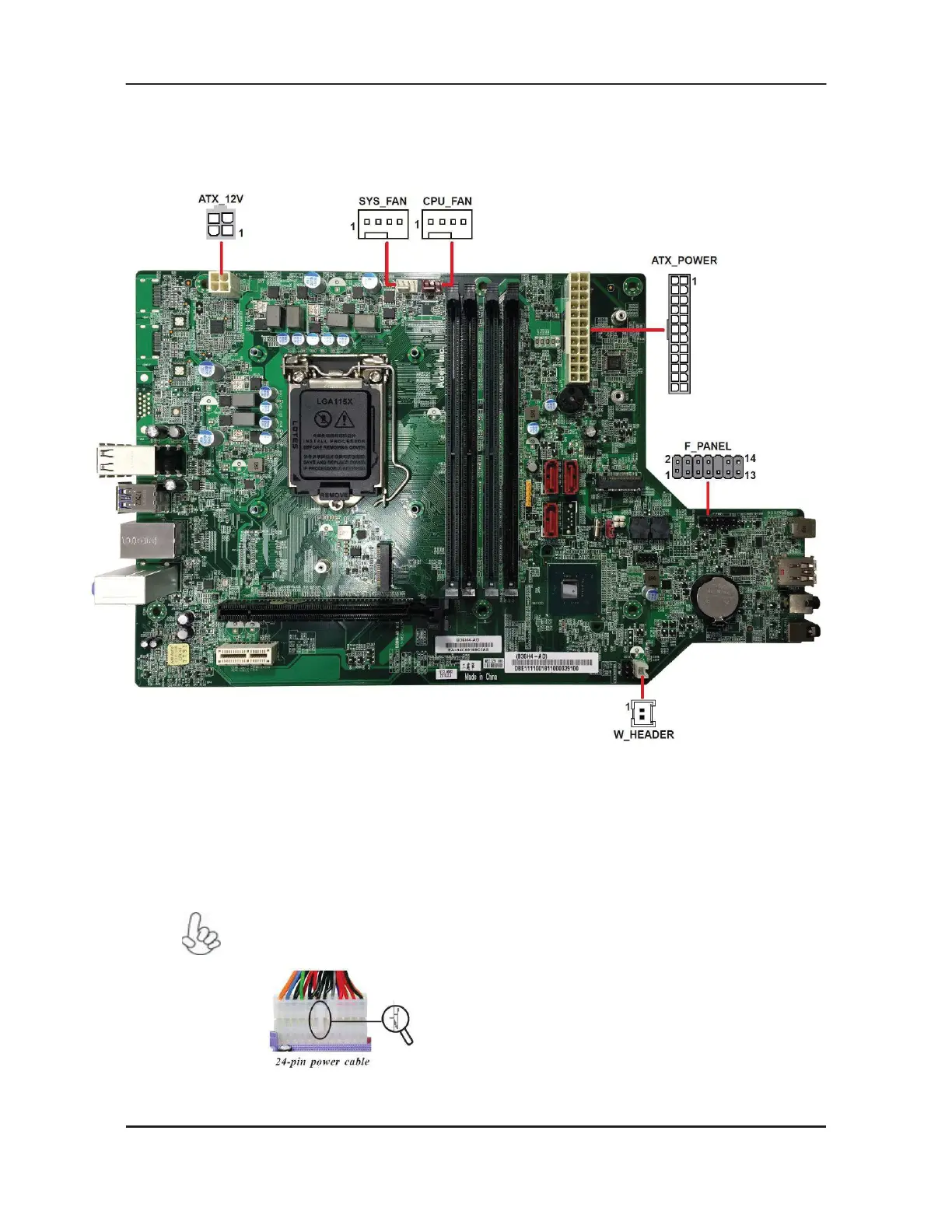

Refer to the following:
1. Connect the CPU cooling fan cable to CPU_FAN.
2. Connect the standard power supply connector to ATX_POWER.
3. Connect the auxiliary case power supply connector to ATX_12V.
4. Connect the system cooling fan connector to SYS_FAN.
5. Connect the case switches and indicator LEDs to F_PANEL.
6. Connect the case wireless power cable to W_HEADER.
Connecting 24-pin power cable
The ATX 24-pin connector allows you to connect to ATX v2.x power supply.
With ATX v2.x power supply, users
please note that when installing 24-pin
power cable, the latches of power cable and
the ATX POWER match perfectly.
