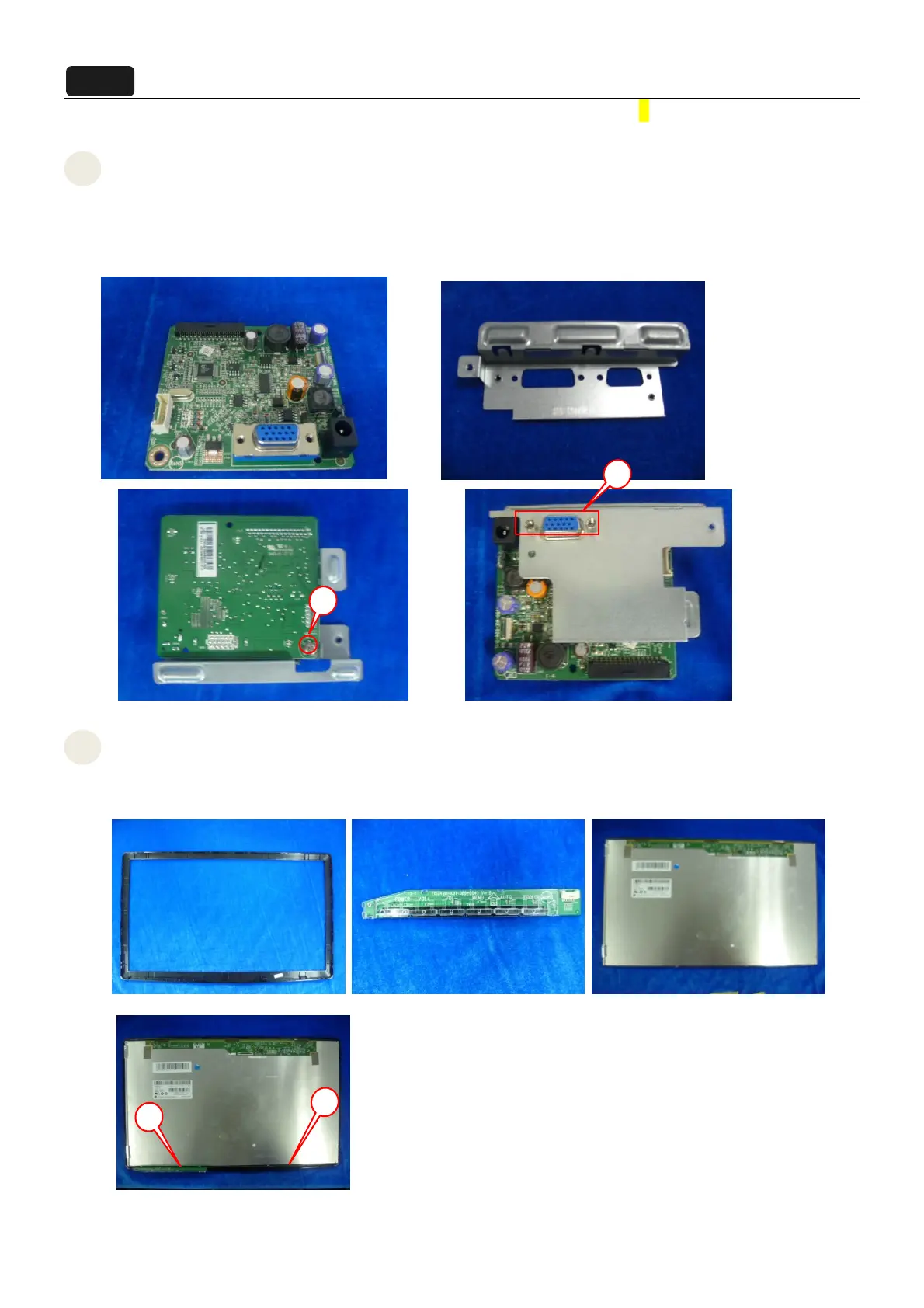

4. Assembly and Disassembly Procedures
4.1 Assembly Procedures:
Prepare a main board, an I/O Bracket and a Mylar. Assemble every part as the below picture.
① Turn over the main board and Lock the two screws.
② Turn over the main board and lock the two screws.
③ Assemble the mylar on the back of main board.
`
Prepare a bezel, a key board and a panel.
① Put the panel in the bezel assembly.
② Assemble the bezel and Keyboard.
S1
S2
2
1
2
1
