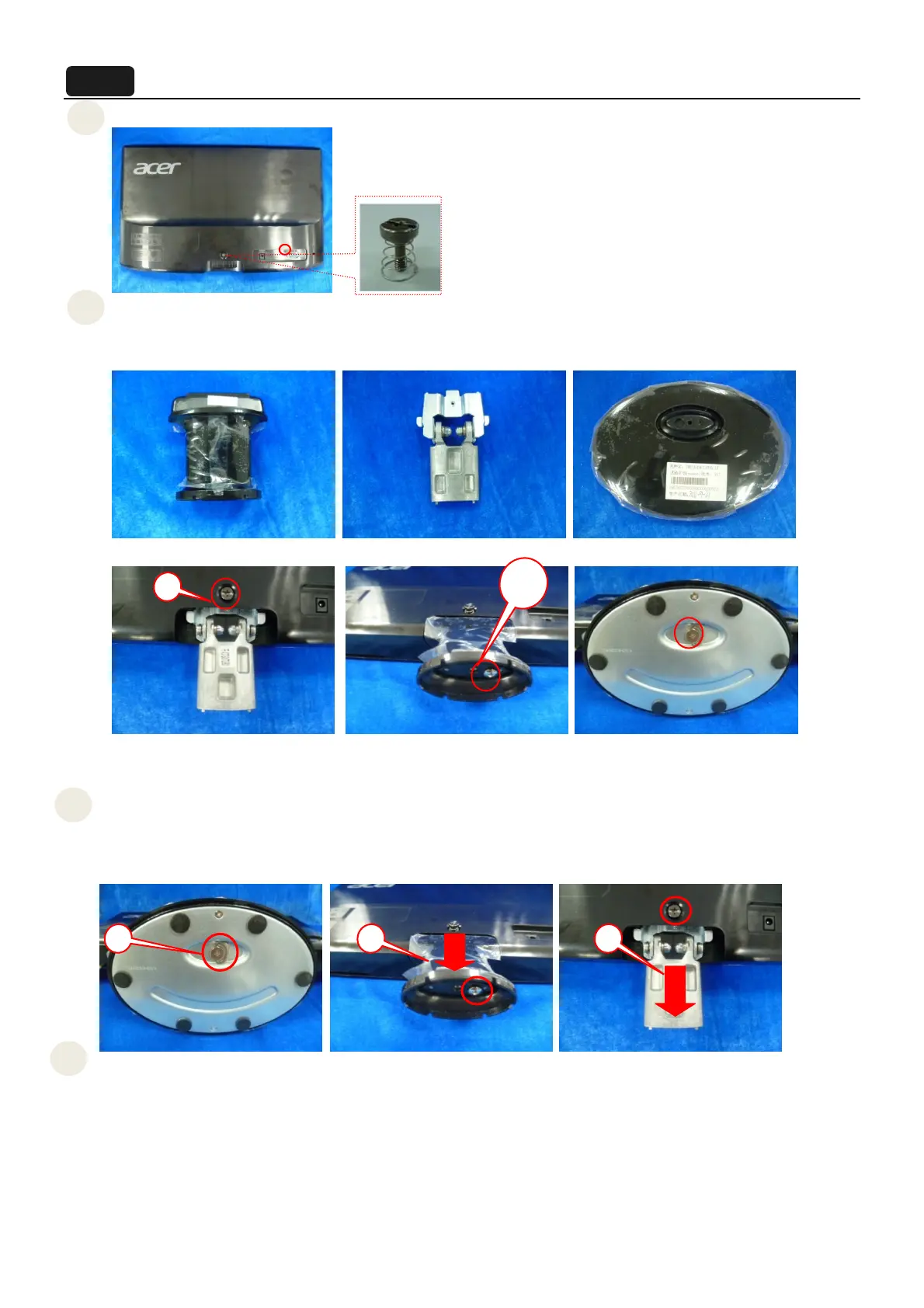

Assemble rear cover and lock the screw.
Prepare a Stand, a Hinge and a Base.
① Assemble the hinge, lock the screw
② Assemble the stand cover, lock the screw and assemble the base
4.2 Disassembly procedures:
Put the monitor on a protective cushion.
① Unscrew the screw as the below picture to remove the base.
② Unscrew the screw then pull out the stand cover follow arrowhead
③ Unscrew the screw then pull out the hinge follow arrowhead
Unscrew the screw and then open all latches with tool.
S1
S2
S6
1
2
1 2
S5
3
