Acer V203W

10
LCD Panel Specification
This specification applies to the 20.1 inch-wide Color TFT-LCD Module M201EW02.
The display supports the WSXGA+ (1680(H) x 1050(V)) screen format and 16.7M colors (RGB 6-bits+Hi-RFC data).
All input signals are 2 Channel LVDS interface compatible. This module does not contain an inverter card for
backlight.

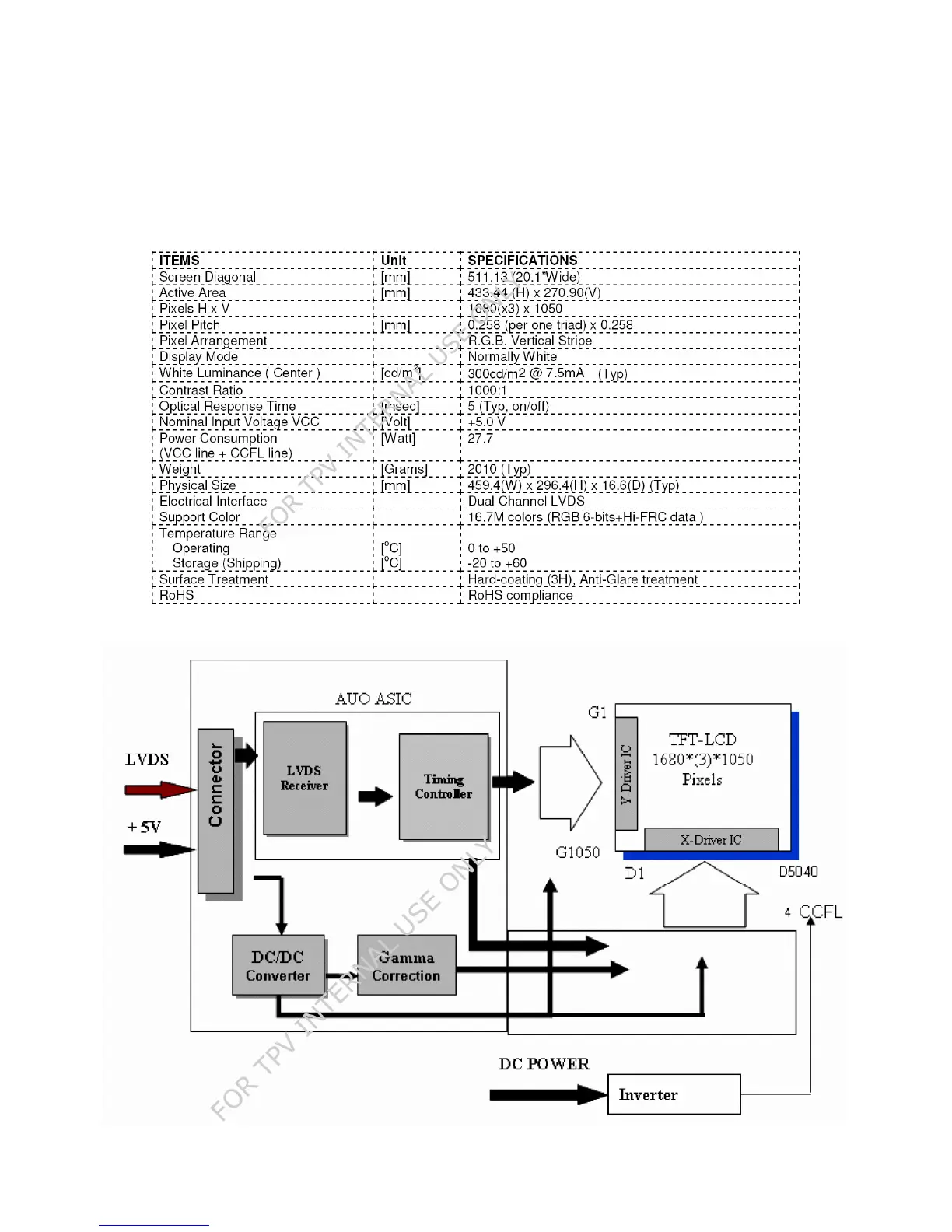

General Specifications
Functional Block Diagram
