Acer V226HQL

ACER V226HQL
9
S3

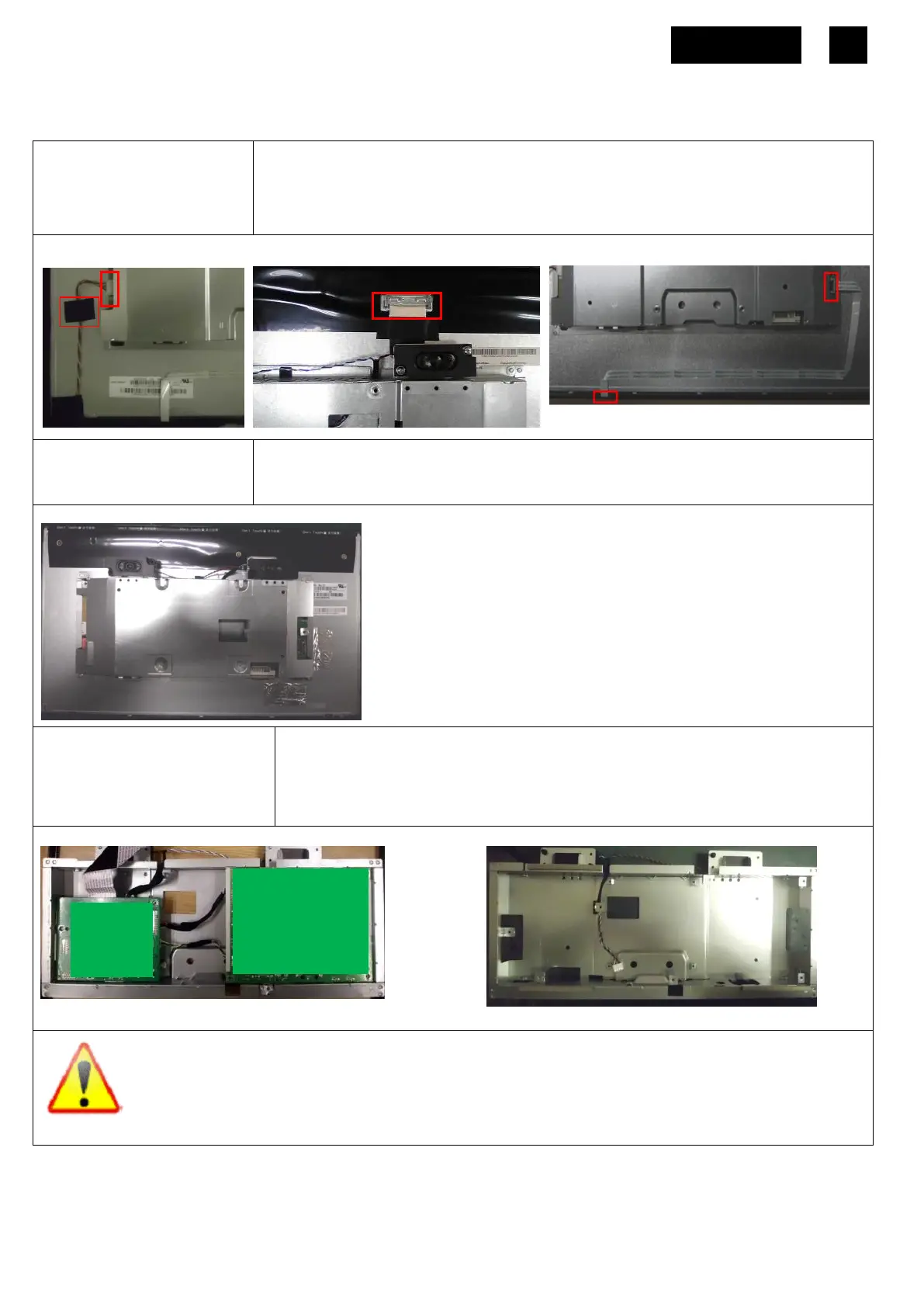

Disassemble the cables
Tear off the tape on the lamp wire and extract the lamp wire form the P/BD(Power
Board) as picture 1.
Tear off the tape, pull out the FFC as picture 2.
Pull the CTRL BD-FFC out of the PCBA and the CTRL BD, tear off the tape and
disassemble the CTRL BD-FFC
PICTURE 1 PICTURE 2 PICTURE 3
S4
Disassemble the MF from
panel
Tear off the tapes, take out the Panel and the CTRL BD of the MF
S5
Disassemble I/F BD, P/BD
and SPK from SHD..
Disassembled the Mylar and unlock all screws.
Disassemble the I/F BD from the SHD and extract the P/BD wire.
Extract the FFC LVDS from the I/F BD.
Disassemble the P/BD from the SHD.
Disassemble SPK.
PICTURE 1 PICTURE 2
NOTE: Circuit boards >10 cm² has been highlighted with the yellow rectangle as above image shows.
Please detach the Circuit boards and follow local regulations for disposal.
P/BD
I/F BD
