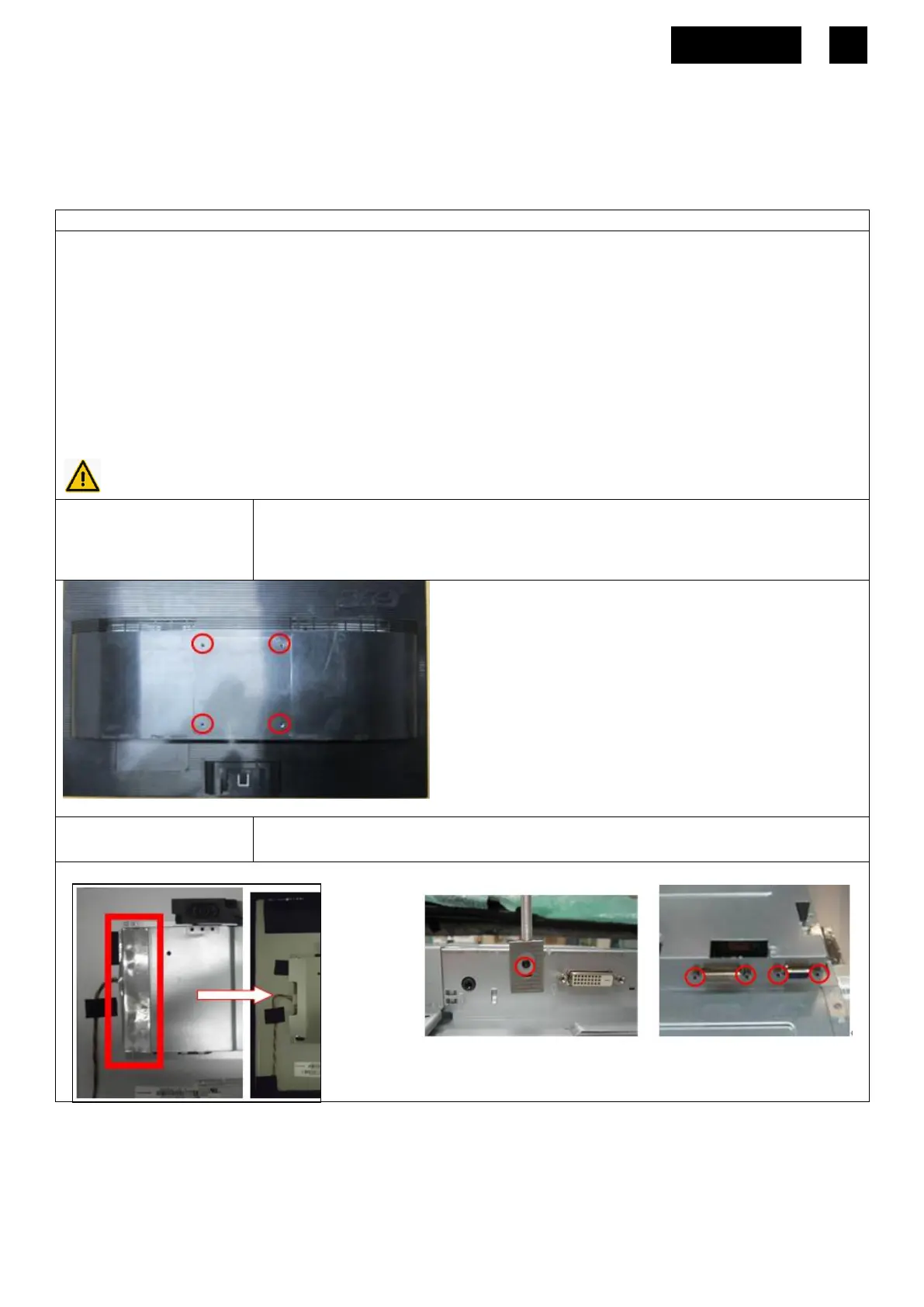

4. Disassembly and Assembly SOP
V226HQL
4.1 Disassembly Procedures
Preparation before disassemble
1.Clean the room for disassemble
2.Identify the area for monitor
3.Check the position that the monitors be placed and the quantity of the monitor ;prepare the area for material flow;
according to the actual condition plan the disassemble layout
4.Prepare the implement, equipment, materials as bellow:
1) working table
2) Screw-driver: Philips-head screwdriver, Hex-head screwdriver
3) knife
4) glove
5) cleaning cloth
6) ESD protection
After unplugging the power cord, the power board still have power energe. Please pay attention
when disassembling/assembling Power BD.
S1
Disassemble the
RC(Rear Case), stand
and base
Before Disassembling & Assembling, monitor need to be put on the sponge and
the Insulation glove must be wore during the process.
Disassemble Stand and Base from the RC(Rear Case). Unlock RC screws.
Disassemble RC from monitor.
S2
Disassemble SHD
Tear down AL-Tape off SHD(Shielding) as picture 1.
Unlock the Hexagonal screws and the DP screw as picture 2.
PICTURE 1 PICTURE 2
