Acer X113 - Control Panel

4
English
Note: Functions vary depending on model definition.

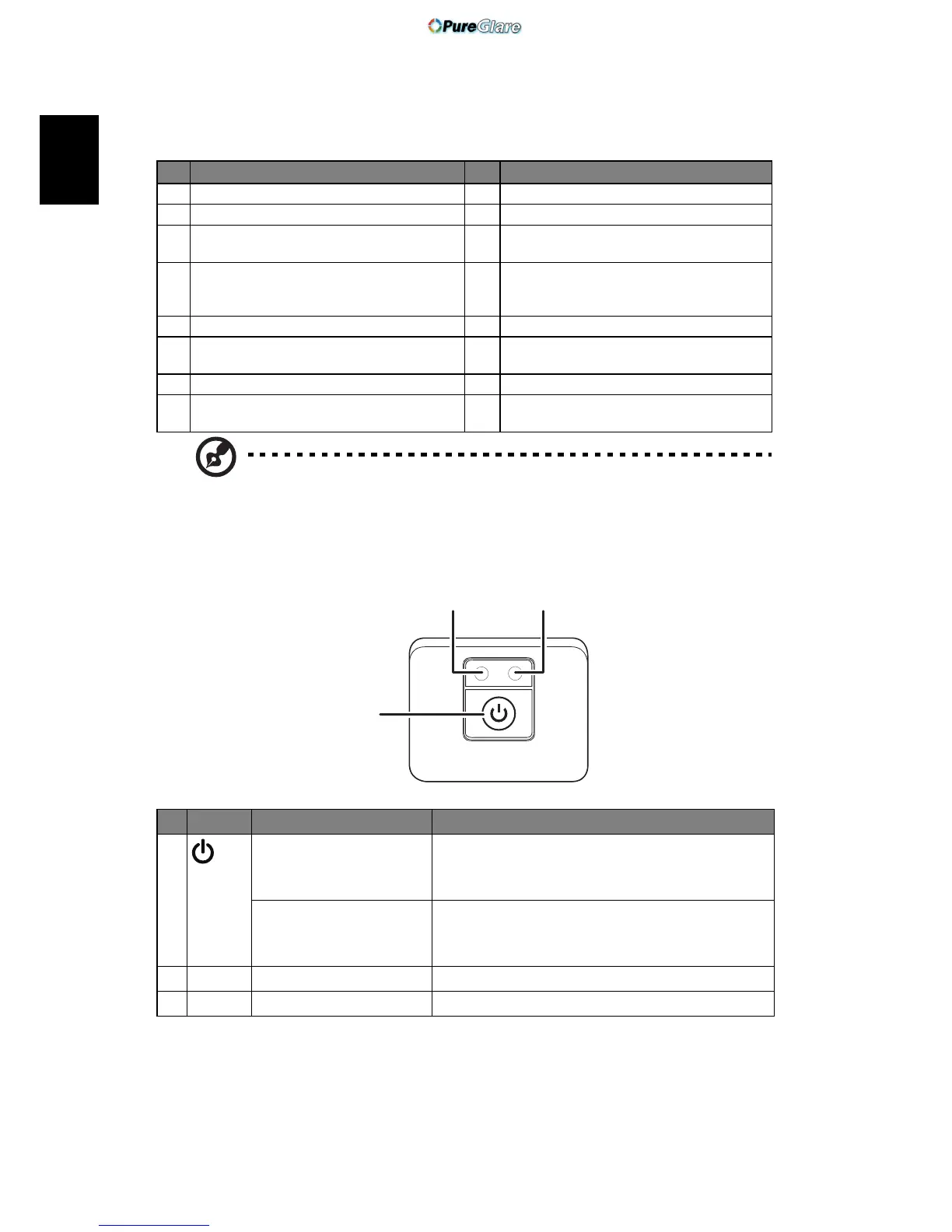

Control Panel
# Description # Description
1 Composite video input connector 9 LAN (RJ45 Port for 10/100M Ethernet)
2 S-Video input connector 10 RS232 connector
3
Monitor loop-through output
connector (for VGA IN 2 only)
11
Mini USB connector
4 PC analog signal/HDTV/component
video input connector (VGA, VGA IN,
VGA IN 1, VGA IN 2)
12
HDMI/MHL connector (HDMI/MHL,
HDMI 1/MHL)
5 Security bar 13 Power socket
6
Audio input connector (for S-Video,
Composite)
14
Kensington
TM
lock port
7 Audio out connector 15 HDMI 2 connector
8
Audio in connector (for VGA IN 1, VGA
IN 2)
16
Audio input connector ( for S-Video,
Composite, VGA)
# Icon Function Description
1 POWER Power Indicator LED
See the contents in "Turning the Projector
On/Off" section.
Source Long press to show the source menu.
Change the active source, short press the
button to switch around.
2 LAMP Lamp Indicator LED
3 TEMP Temp Indicator LED
2 3
1
LAMP
LAMP
TEMP
TEMP
SOURCE
SOURCE
