Note: To ensure the projector works well with your computer,
please make sure the timing of the display mode is compatible
with the projector.
Note: Functions vary depending on model definition.
Note: USB cable needs powered extender if the length is over 5 m.
Note: VGA OUT loops through for VGA IN 2 only.
Note: Some smartphones require a converter (supplied by
smartphone maker) to enable the MHL function.

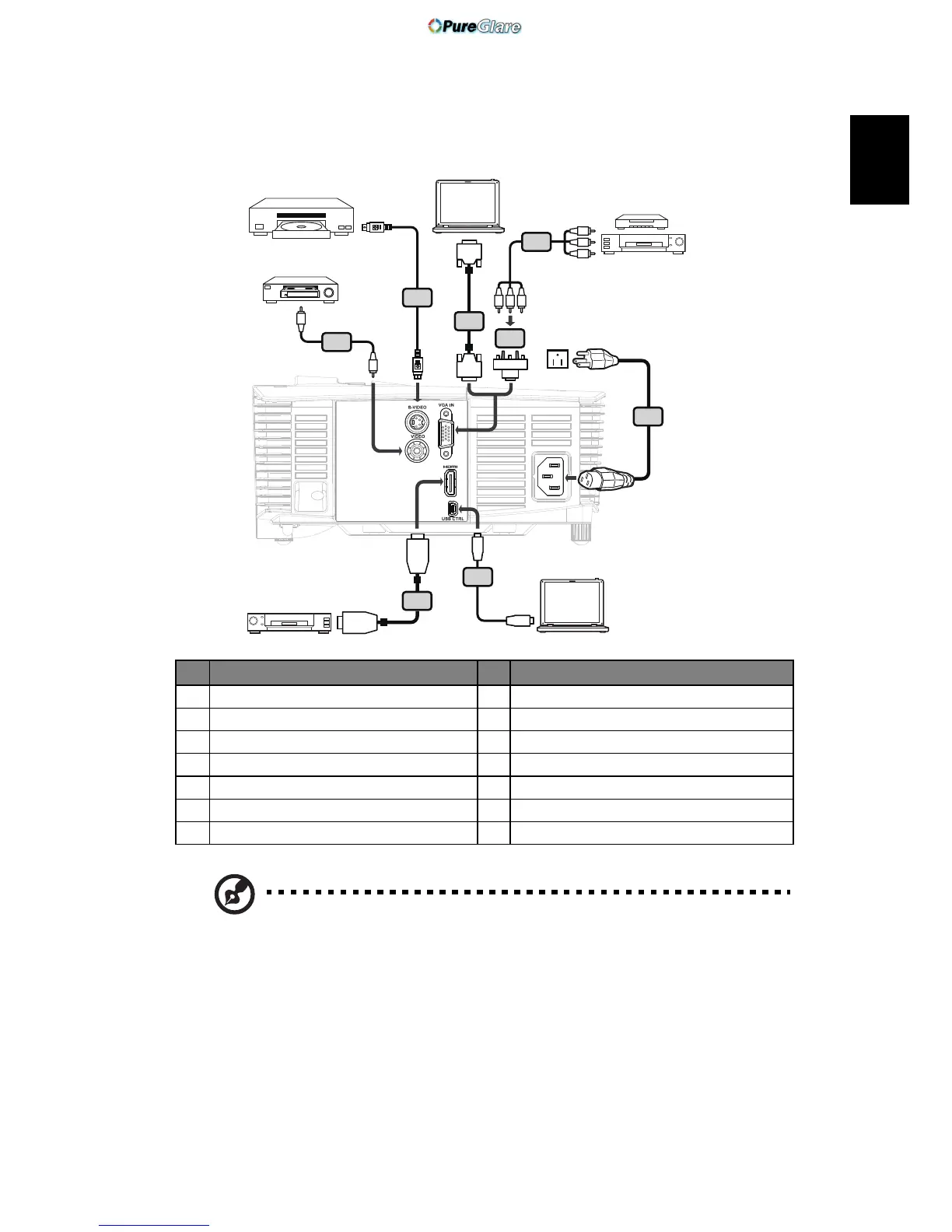

# Description # Description
1 Power cord 8 Audio cable jack/RCA
2 VGA cable 9 RS232 cable
3 Audio cable jack/jack 10 USB cable
4 VGA to component/HDTV adapter 11 HDMI cable
5 3 RCA component cable 12 MHL cable (MicroUSB to HDMI)
6 S-Video cable 13 RJ45 cable
7 Composite video cable
1
HDTV adapter
4
5
RBG
RBG
D-Sub
D-Sub
2
USB
USB
10
6
Y
Y
7
HDMI
HDMI
11
<Type 2>
S-Video output
Video output
DVD player, Set-
top Box, HDTV
receiever
DVD player
