18

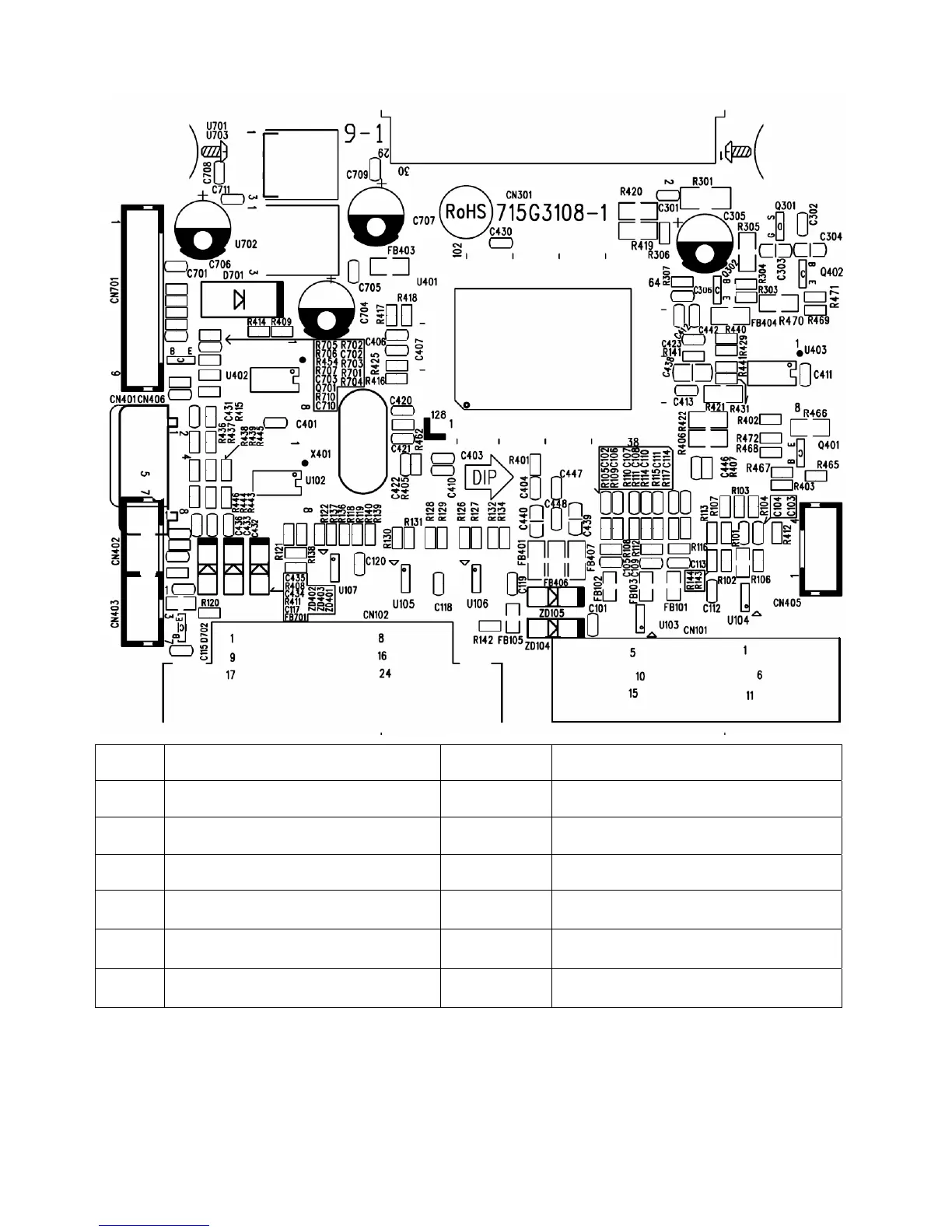

Main Board Layout
Symbol Description Symbol Description
U401 IC NT68667UFG/C QFP-128L CN402 WAFER
U703 IC AP1117D33L-13 TO252-3L DIODES CN701 WAFER 9P RIGHT ANELE PITCH
U103 IC AZC099-04S SOT23-6L CN301 CONNECTOR
U104 IC AZC099-04S SOT23-6L X401 CRYSTAL 12MHz HC-49US ARG6-120
U402 SST25VF010A-33-4C-SAE CN101
D-SUB 15PIN VERTICAL CONN WITH
SCREW
U702 IC AZ1117D-1.8-E1 CN102 DVI 24PIN CONN F
